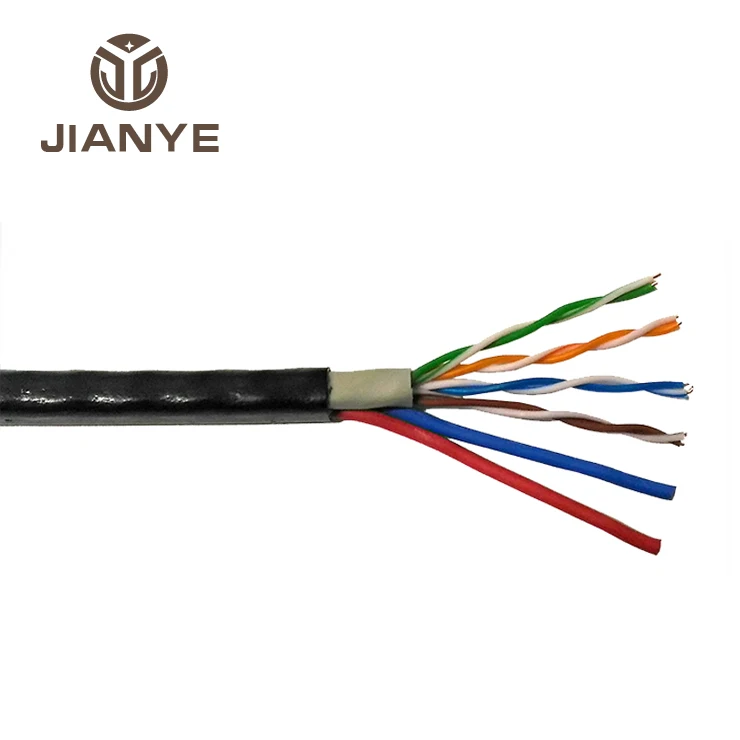

UTP siamese cable cat5e cat6 lan cable with power cable

Cable / Communication Cable

* Shielded/Unshielded twisted pairs
* 26 or 24 awg solid or stranded bare copper,
* Insulation/Jacket thickness: 0.2/0.6mm
* Temperature range: -20°C~+75°C
* Rid Cord, Drain Wire optional
Reference Standard:
* TIA/EIA-568, CSAC22.2, ISO/IEC 11801, YD/T1019-2001
Specification
Conductor Diameter
0.62mm, 0.57mm(23awg), 0.56mm, 0.52mm, 0.5mm, 0.48mm
Conductor Material
CU, CCA, CCAG, CCS, CCC
Type of Conductor
Solid, Stranded
Insulation Material
PE, PVC, LSZH, LSOH
Shielding Material
Aluminium foil, Tinned copper drain wire, Tinned Copper/Copper Braid
Shielding Coverage
100%, 80%, 60%
Jacket(sheath) Material
PVC, LSOH, LSZH, PE, HDPE
Pair Identification
Pair 1: Blue,White / Blue; Pair 2: Orange,White / Orange;
Pair 3: Green,White / Green; Pair 4: Brown,White / Brown.
Number of Pair
1 Pairs, 2 Pairs, 4 Pairs.
Package
305m/box, 300m/500m/drum.
Other Options
PE Cross, Rid Cord, Customized Cable Label and Retail Package.
Production Process
