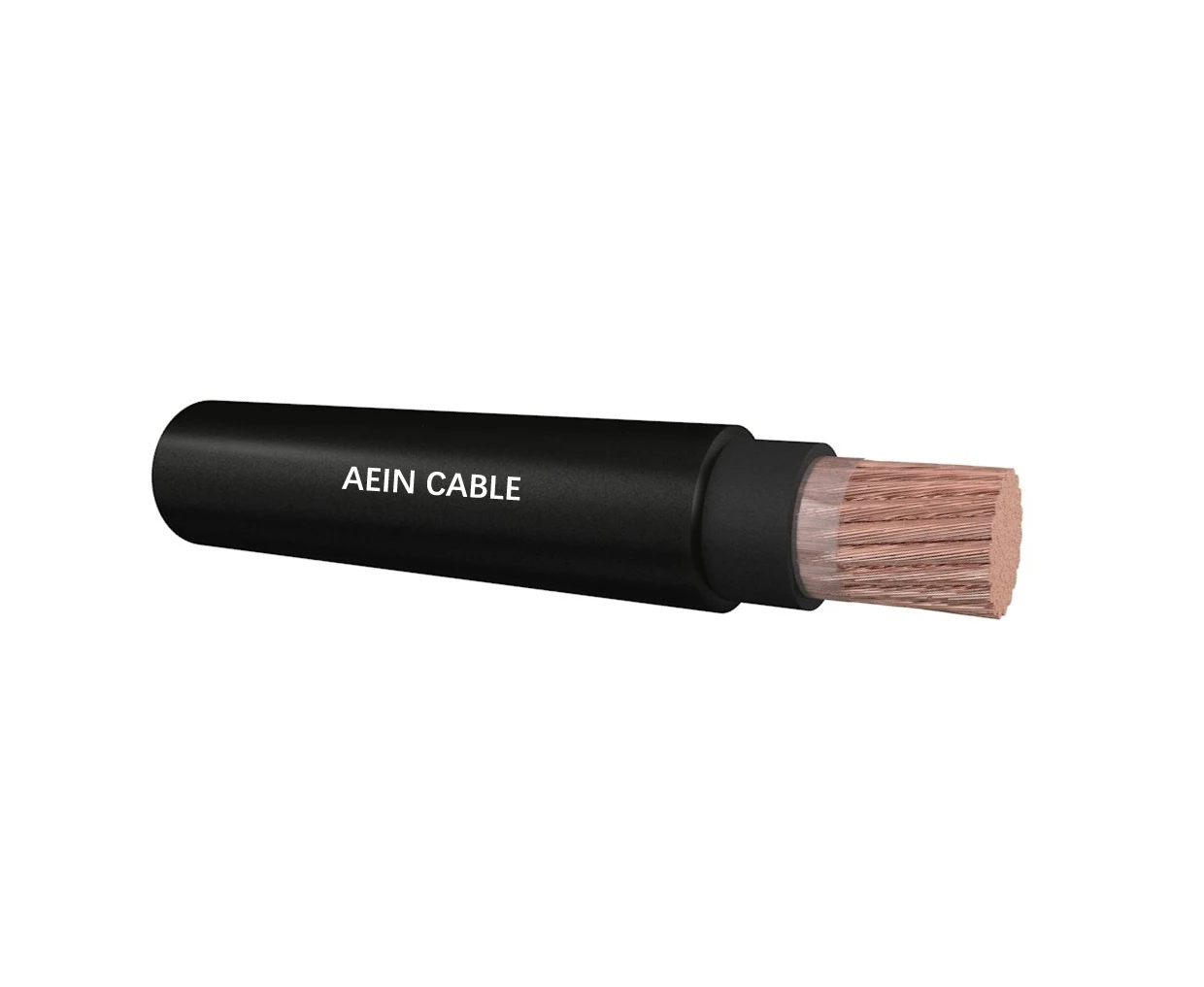

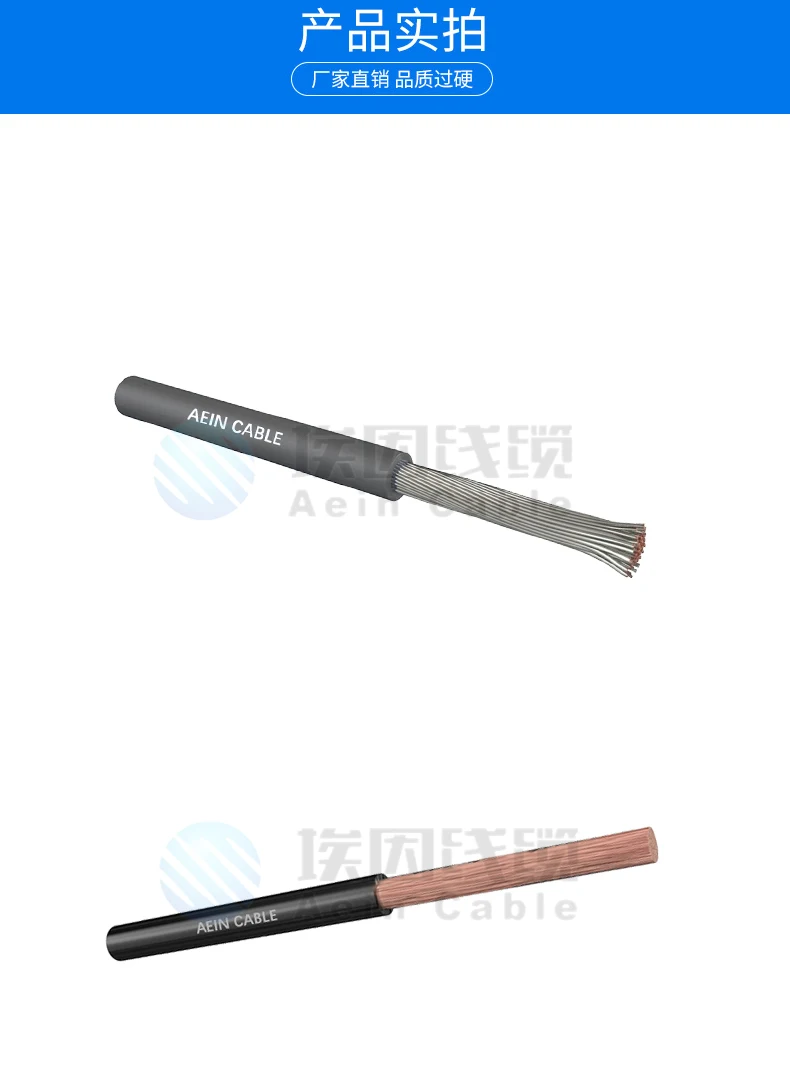

UL1015 double sheath flexible PVC coated copper wire 2awg electrical cable

Cable / Electrical Wire

UL1015 double sheath flexible PVC coated copper wire 2awg electrical cable - ANKUX.COM

Product Application
It is suitable for internal wiring of general electronic and electrical equipment. When exposed to oily environment, it should not exceed 60 C or 80 C. It can be used by UL3386. When used in electronic equipment, it can be up to 2.5KV.
This line type oil resistance is optional.
Main Features
1.Standard thickness, easy to peel, easy to cut.
2. With acid and alkali resistance, oil resistance.
3.Moisture proof, mildew proof, environmental protection and other characteristics.
UL1015 double sheath flexible PVC coated copper wire 2awg electrical cable - ANKUX.COM

H05V-U
Brand name
Aein
Main structure
Conductor
bare copper or tinned copper wire
Core insulation
PVC
color
Any color

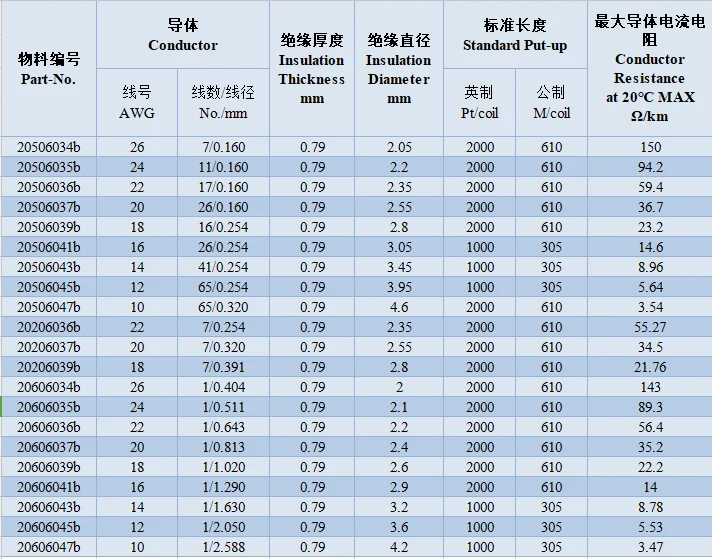

Technical Parameters
Combustion test
Pass UL VW-1, CSA FT1 and JQA F-Mark flame retardant test
Rated temperature
105 degrees
Rated voltage
600V
Spark test
3KV
Application standards
UL758, UL1581 and CSA C22.2 No.210.2
UL1015 double sheath flexible PVC coated copper wire 2awg electrical cable - ANKUX.COM

Application
UL1015 double sheath flexible PVC coated copper wire 2awg electrical cable - ANKUX.COM
