UL Certificate 500V/1000V 180 degree Tinned Silver Nickel Copper Flexible Silicone rubber Cable Wire Electrical

Cable / Electrical Wire

UL Certificate 500V/1000V 180 degree Tinned Silver Nickel Copper Flexible Silicone rubber Cable Wire Electrical - ANKUX.COM

Description

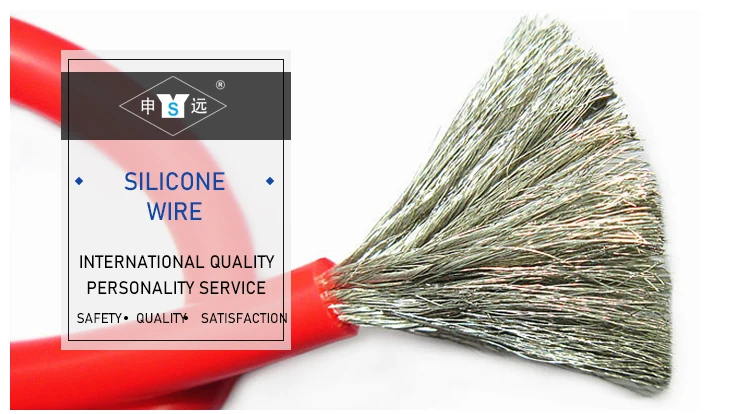

1) Product: silicone wire
2) Style No.: JG
3) Rated Voltage: 600V
4) Rated Temperature:-60°C~+180°C
5) Conductor: copper or tinned plated copper
6) Insulation: silicone rubber
7)Color:red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc

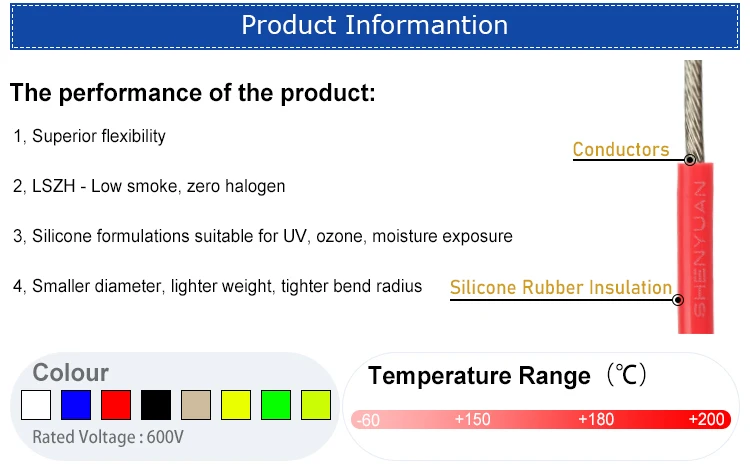

Product features
*excellent resistance to high temperature
*low temperature resistance
*excellent electrical insulation performance
*high voltage resistance
*aging resistance
*long service life
Section Area mm2 Conductor construction NO.×mm Insulation Thickness
mm
Outer Diameter mm m/coil
500V 1000V 500V 1000V
0.5 28×0.15 1 1.2 2.9 3.3 200
0.75 24×0.20 1 1.2 3.2 3.6 200
1 32×0.20 1 1.2 3.3 3.7 200
1.5 48×0.20 1 1.2 3.6 4 200
2.5 49×0.25 1 1.2 3.9 4.3 200
4 56×0.30 1.2 1.4 5.2 5.6 200
6 84×0.30 1.2 1.5 6 6.6 200
10 84×0.40 1.4 1.6 7.4 7.8 100
16 126×0.40 1.4 1.6 8.6 9 100
25 196×0.40 1.6 1.8 10.8 11.2 100
35 494×0.30 1.8 2 12.4 12.8 100
50 396×0.40 2 2.2 14.6 15 100
70 551×0.40 2 2.2 16.8 17.2 100
95 760×0.40 2.2 2.5 19.2 19.8 100
120 608×0.50 2.2 2.5 21 21.5 100
150 760×0.50 2.4 2.6 23 23.4 100
185 925×0.50 2.4 2.6 24.8 25.2 100
240 1221×0.50 2.6 2.8 28.2 28.6 100
Application
UL Certificate 500V/1000V 180 degree Tinned Silver Nickel Copper Flexible Silicone rubber Cable Wire Electrical - ANKUX.COM

More Choice in Cable
More Choice in Cable Configurations
Custom Engineered to Your Specifications and Designs
Multi conductor cables
Multi-pairs cables
Microminiature cables
Hybrid cables
Composite cables
Lead wires
Litz wires
Conductor Materials
Conductors:
36AWG to 4/0 AWG
Bare copper
Tinned copper
Silver-plated copper
Nickel-plated copper
Copper alloys
Copper and nickel alloy
Pure nickel
Fibers and Yarns
Fiberglass
Silica sand
Aramid fiber
Stainless steel yarn
Insulating and Jacketing Compounds
Thermoplastics
PVC, SR-PVC
PP
PE
PUR
Nylon
TPE
PEEK
Thermosets
XLPE
Fluoropolymers
PTFE
FEP
PFA
ETFE
Silicone rubber
Silicone
High tear resistance silicone rubber
Flame-retardant silicone
High-voltage silicone
Shielding
Application:Overall and individual conductors/pairs
Types: Foil, braid,
