UEW 180 0.06mm 48AWG High frequency enameled magnet copper wire for voice coils
Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.
Features:
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others
Contact Me

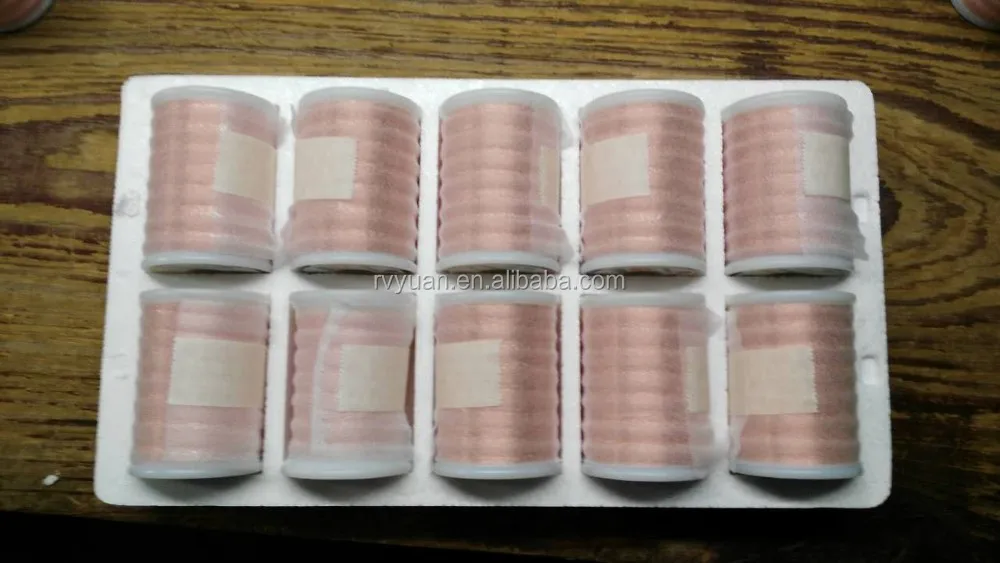

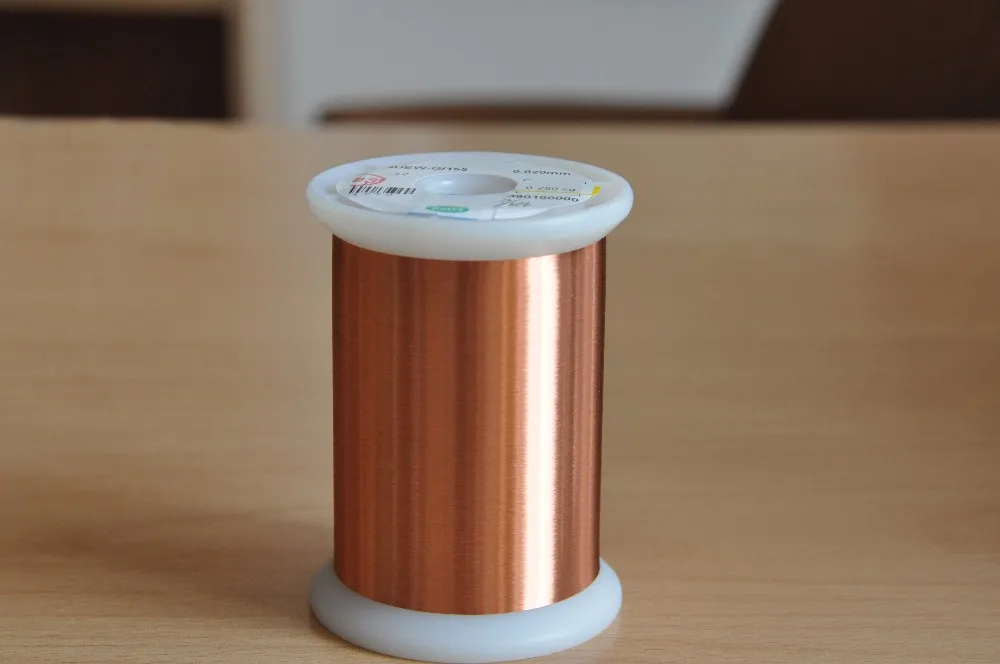

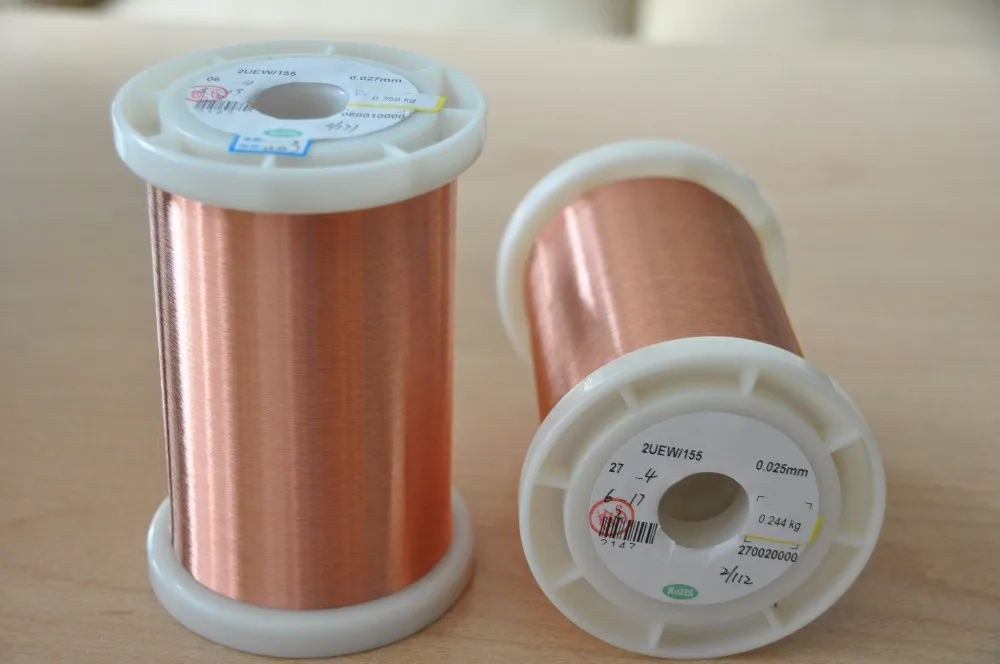

Detailed Images



Applications
1.Touch screen
2.Watch coil
3. Voice coil
4. Transformer
5. Intelligent Cloth
6. Micro Motor
7. Relay
Contact me

Specification
NO.
Characteristics
Technical requests
Test Results
Conclusion
Sample1
Sample 2
Sample 3
1
Surface
Good
OK
OK
OK
OK
2
Bare Wire Diameter
0.060±
0.001
0.060
0.060
0.060
OK
0.001
3
Overall diameter
≤ 0.074 mm
0.0700
0.0710
0.0710
OK
4
Insulation thickness
Min 0.007
0.0100
0.0100
0.0100
OK
5
Elongation
>14 %
17
18
17
OK
6
Breakdown voltage
>400 V
1752
1549
1468
OK
7
Pinbole test
≤ 5 hole/5m
0
0
0
OK
8
Electrical Resistance
≤ 6.526 Ω/m
6.168
6.231
6.034
OK
Remark
Test items
Technical Requests
Results
Conclusion
1
Adhesive
No crack
OK
Aprroved
2
Heat Shock
200/30min no crack
OK
3
Solder Ability
390±5C/2S Smooth
OK
