Tree Wire Cable 25 Kv 3-Layer ACSR/AAAC/AAC ANSI/ICEA S-121
Cable / Power Cable
Products Application
Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity.The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation;particularly useful in congested areas such as alleyways or tight corridors.

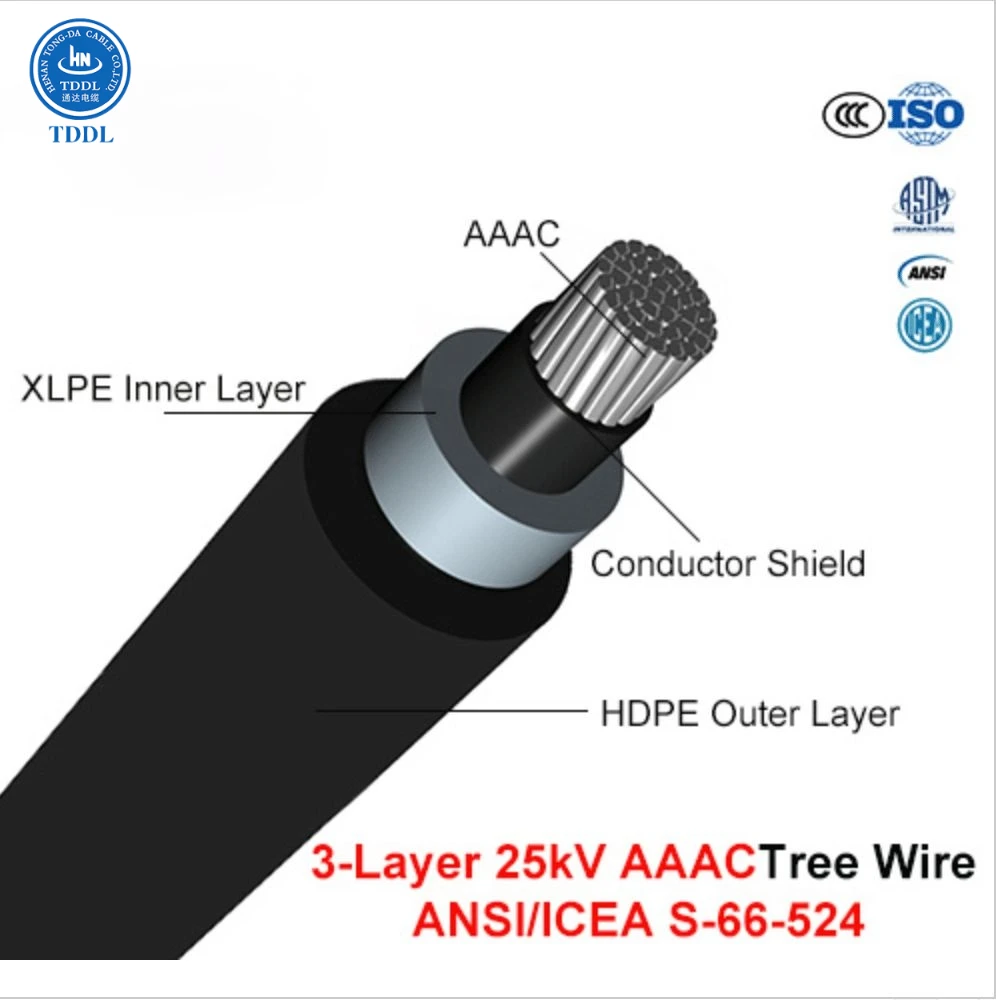

Product Construction
Tree Wire Cable 25 Kv 3-Layer ACSR/AAAC/AAC ANSI/ICEA S-121 - ANKUX.COM
Conductors are concentrically stranded, AAC (1350-H19), either compressed or full compact depending on conductor size, AAAC or ACSR. Available with high-density track-resistant polyethylene (HDTRPE) or Track-Resistant Crosslinked Polyethylene (XLPE)
covering. Strand shield option available as shown in illustration.
Product Standards
SPECIFICATIONS:Southwire’s 15kV – 35kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM
specifications:
ASTM B230 ASTM B231 ASTM B232 ASTM B398 ASTM B399 ASTM B400 ICEA S121-733
Size
Stranding
Conductor Diameter
Covering Thickness
Cable O.D.
Rated Strength
Weight per 1000 ft.
(mils)
(AWG or kcmil)
/
(mils)
Conductor Shield
Inner Layer
Outer Layer
(mils)
(lbs)
(lbs)
ACSR
1/0
6/1
398
15
125
125
928
4161
385
2/0
6/2
447
15
125
125
977
5045
443
3/0
6/3
502
15
125
125
1032
6289
513
4/0
6/4
563
15
125
125
1093
7933
600
266.8
18/1
609
15
125
125
1139
6536
608
266.8
26/7
642
15
125
125
1172
10735
692
336.4
18/1
684
15
125
125
1214
8246
714
336.4
26/7
720
15
125
125
1250
13395
818
336.4
31/7
741
15
125
125
1271
16435
1086
397.5
18/1
743
15
125
125
1273
9443
804
397.5
24/7
772
15
125
125
1302
13870
863
397.5
26/7
783
15
125
125
1313
15485
926
477
24/7
846
20
125
125
1386
16340
999
477
26/7
858
20
125
125
1398
18525
1076
477
31/7
883
20
125
125
1423
22610
1458
556.5
18/1
879
20
125
125
1419
13015
1045
556.5
24/7
914
20
125
125
1454
18810
1124
556.5
26/7
927
20
125
125
1467
21470
1213
AAAC
48.69
7
250
15
125
125
780
1584
225
77.47
7
316
15
125
125
846
2520
275
123.3
7
398
15
125
125
928
4014
348
155.4
7
447
15
125
125
977
4851
396
195.7
7
502
15
125
125
1032
6111
454
246.9
7
563
15
125
125
1093
7704
525
312.8
19
642
15
125
125
1172
9900
611
394.5
19
720
15
125
125
1251
11970
716
465.4
19
783
15
125
125
1313
14040
805
559.5
19
858
20
125
125
1398
16920
932
652.4
19
927
20
125
125
1467
19710
1044
740.8
37
990
20
125
125
1530
21960
1148
927.2
37
1108
20
125
125
1648
27450
1389
AAC
1/0
7
336
15
125
125
866
1791
309
2/0
7
376
15
125
125
906
2259
350
3/0
7
423
15
125
125
953
2736
400
4/0
7
475
15
125
125
1005
3447
460
266.8
19
537
15
125
125
1067
4473
531
336.4
19
603
15
125
125
1133
5535
621
397.5
19
659
15
125
125
1189
6399
698
477
19
722
20
125
125
1262
7524
806
556.5
37
780
20
125
125
1320
8946
899
636
37
835
20
125
125
1375
10260
995
795
37
932
20
125
125
1472
12510
1181
