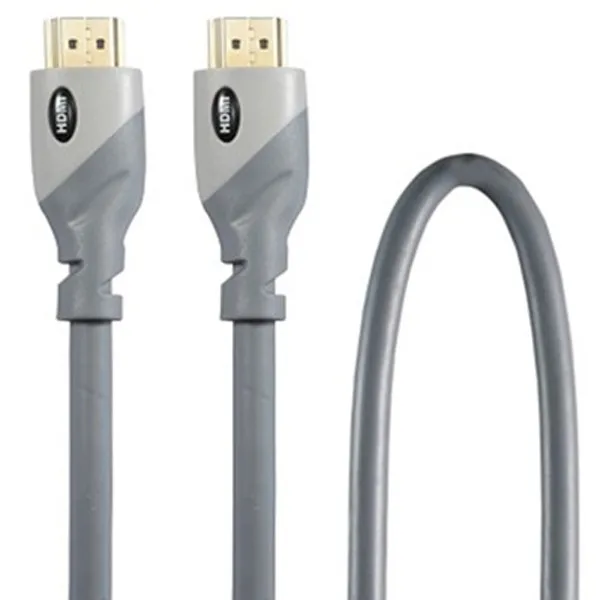

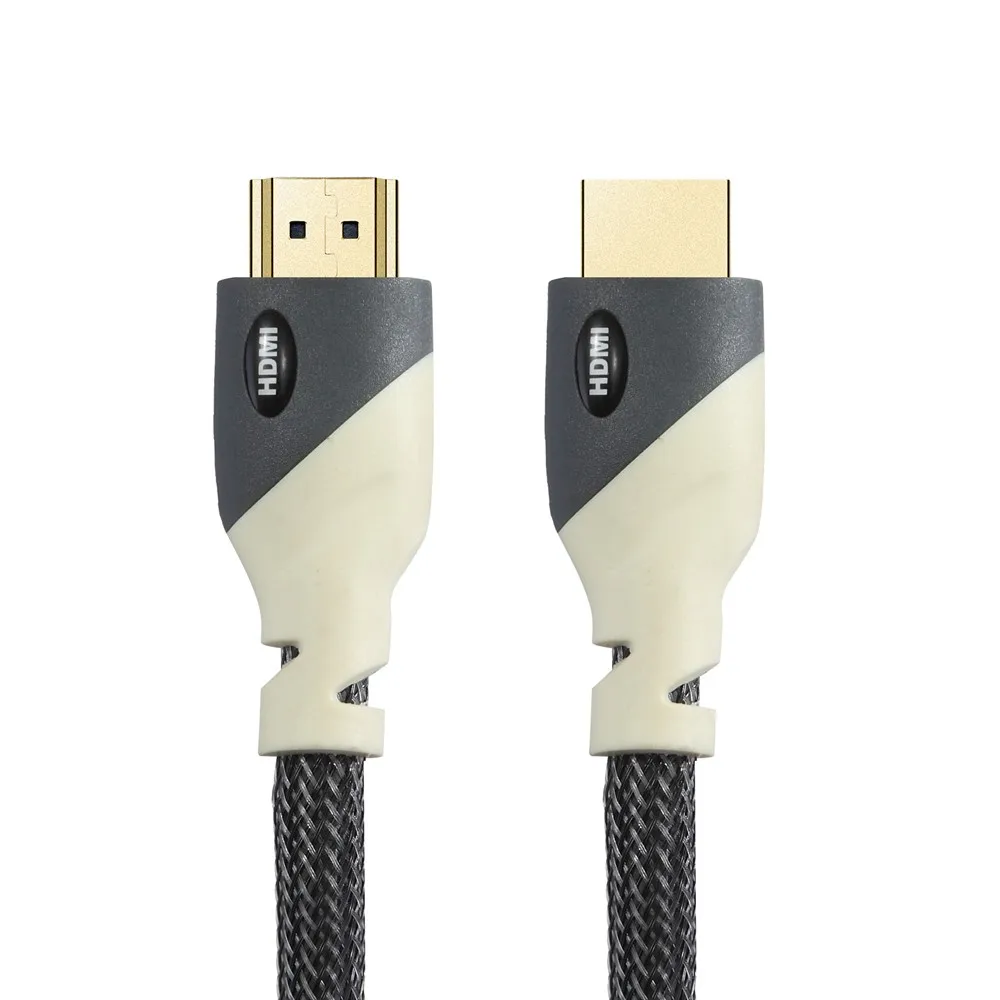

1.8m High Quality HDMI Cable Supports 4K, Ultra HD, 3D, 1080P, Ethernet, 18Gbps and Audio Return 6FT

Key Features• High Speed HDMI 2.0 Male to Male Cable with Ethernet
• Connect Blu-ray players, Fire TV, Apple TV, PS4, PS3, XBox one, Xbox 360, computers and other HDMI- enabled devices to TVs, displays, A/V receivers
• Bandwidth up to 18Gbps

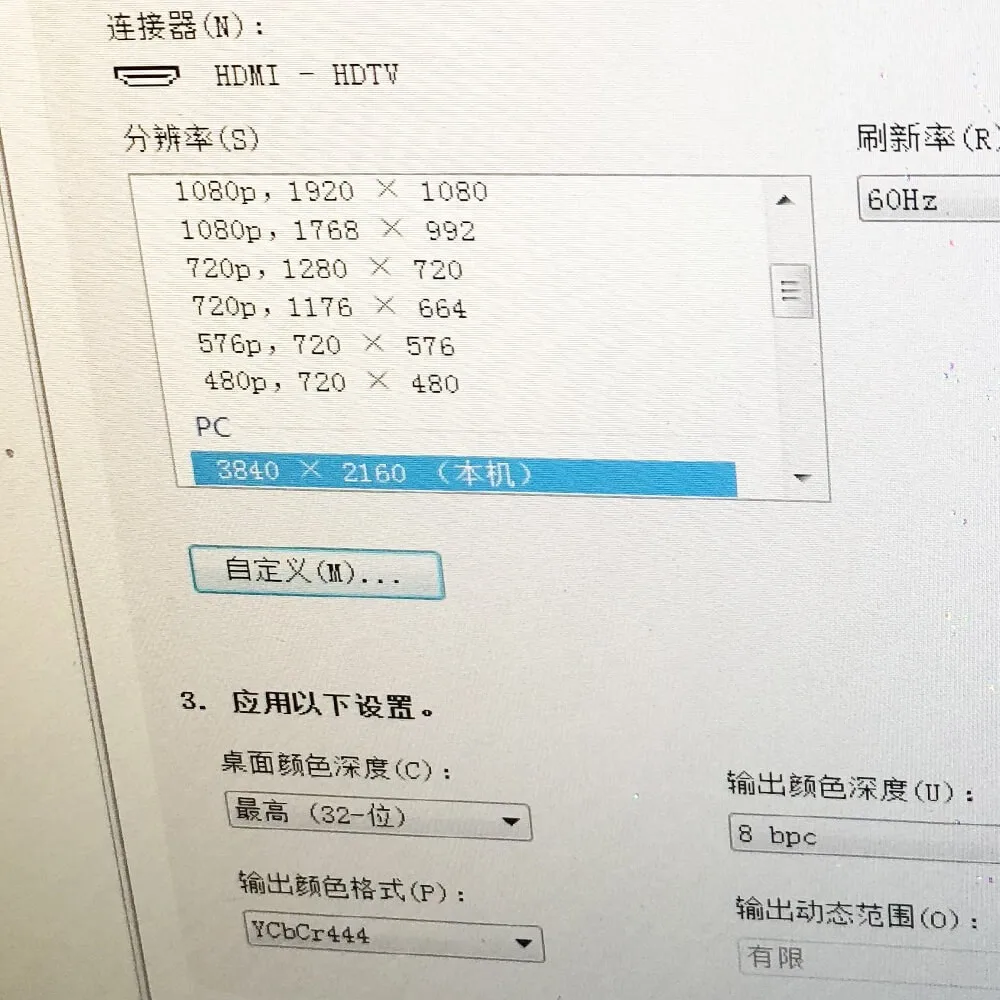

• 4K@50/60 (2160p), 4:4:4. which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
Technical SpecElectrical Characteristics
• Nominal Velocity of Propagation - 18Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 100Ω
• Time Delay - 5.1ns/m (max)
Physical Characteristics:
• Voltage Rating - 30V
• Maximum Bend Radius - 90mm
• Temperature Rating - 80
• Operating Temperature Range - -20- 80
• Storage Temperature Range - -25- 85
• Approvals – RoHS, REACH, CE, UL Compliant
Conductor 1 (5 Pairs)
• Conductor Type - 30AWG Bare Copper
• Insulation - Foamed PE SKIN
• Drain wire - 30AWG CCS
• Shield - Aluminum Foil, 100% Coverage
Conductor 3 (4 Conductors)
• Conductor Type - 30AWG CCS
• Insulation - HDPE
Overall Cable
• Drain wire - 30AWG CCS
• Foil Shield - Aluminum Foil, 100% Coverage
• Braiding -16*5/0.12 AL-MG
• Jacket - PVC, White, O.D.: 7.3±0.2mm
• High quality cotton mesh : Black/white

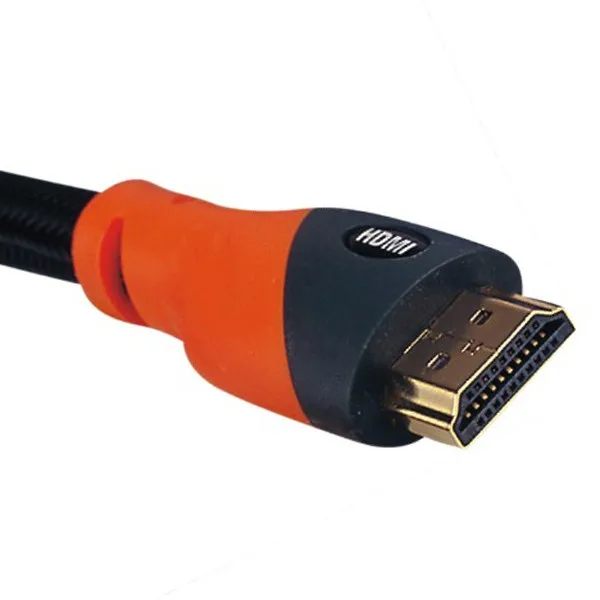

Connector 1
• Connector Type – HDMI A Male
• Pin Construction - Phosphor Copper
• Injection – PVC
• Plating – 24K Gold plated
Connector 2
• Connector Type – HDMI A Male
• Pin Construction - Phosphor Copper
• Injection – PVC
• Plating – 24K Gold plated

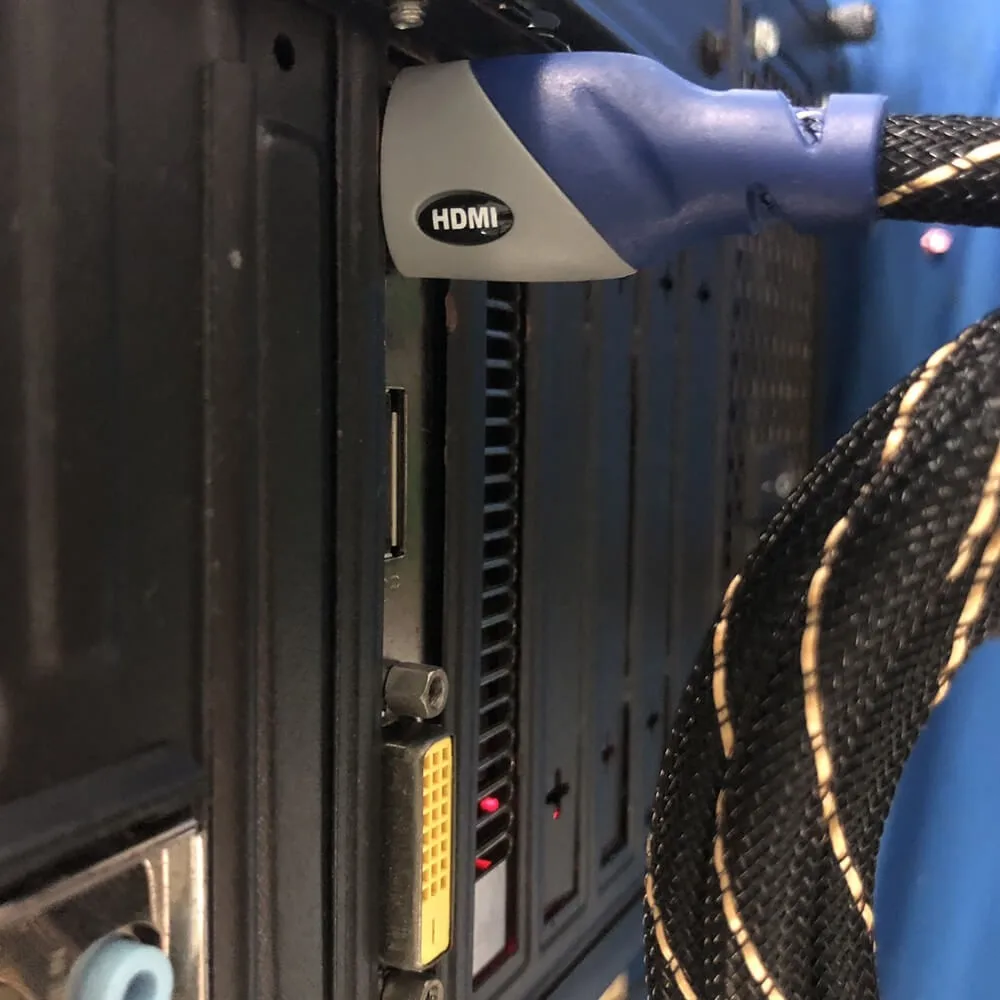

Important Notes: The product selling is not including the nylon briad, the picture is just for reference.
Order information
SKU Specification
H108-010 High Quality HDMI Cable, 4K, Gold Plated, 30AWG, OD:6.0mm, 1M/3.3FT, Black
H108-018 High Quality HDMI Cable, 4K, Gold Plated, 30AWG, OD:6.0mm, 1.8M/6FT, Black
H108-030 High Quality HDMI Cable, 4K, Gold Plated, 30AWG, OD:6.0mm, 3M/10FT, Black
H108-050 High Quality HDMI Cable, 4K, Gold Plated, 30+28AWG, OD:7.3mm, 5M/16.5FT, Black

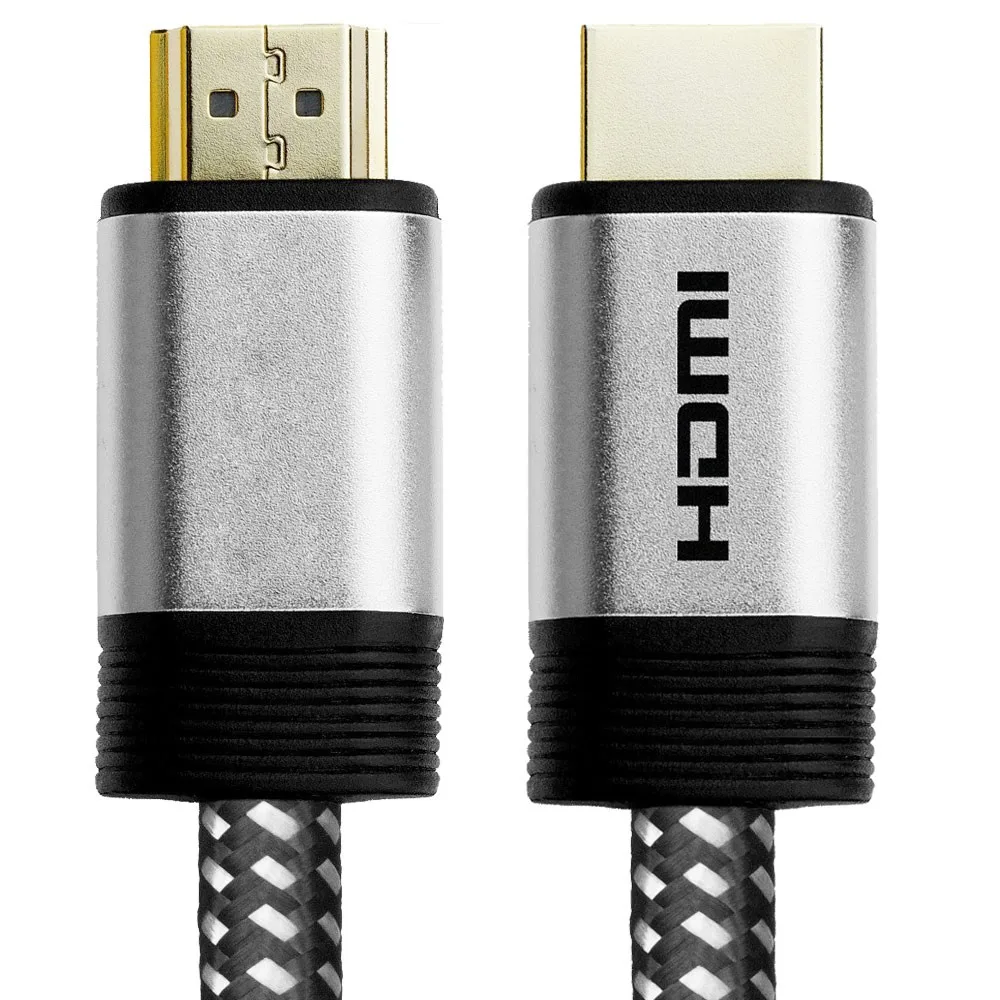

Related HDMI ProductAmazon best selling braided HDMI cable, 4K@60Hz 4:4:4

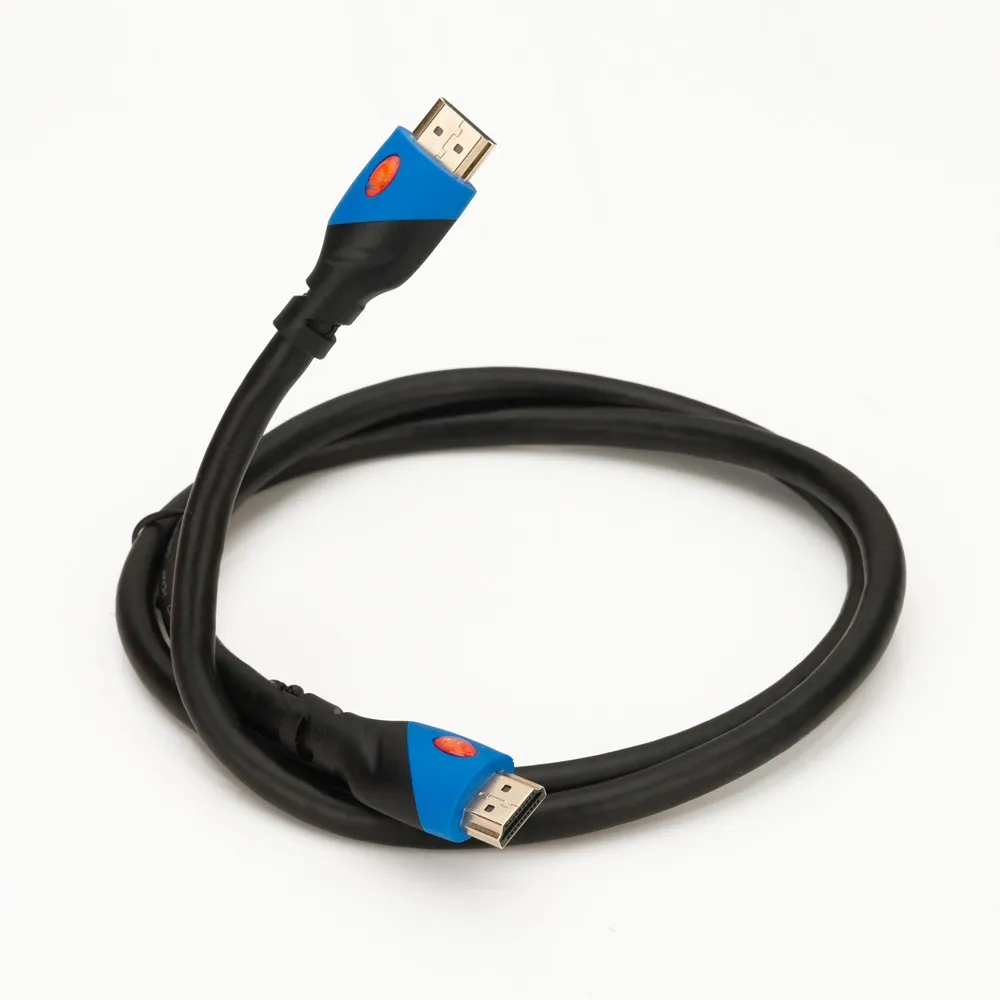

Standard HDMI cable, best price support 4K 3D, cheap price

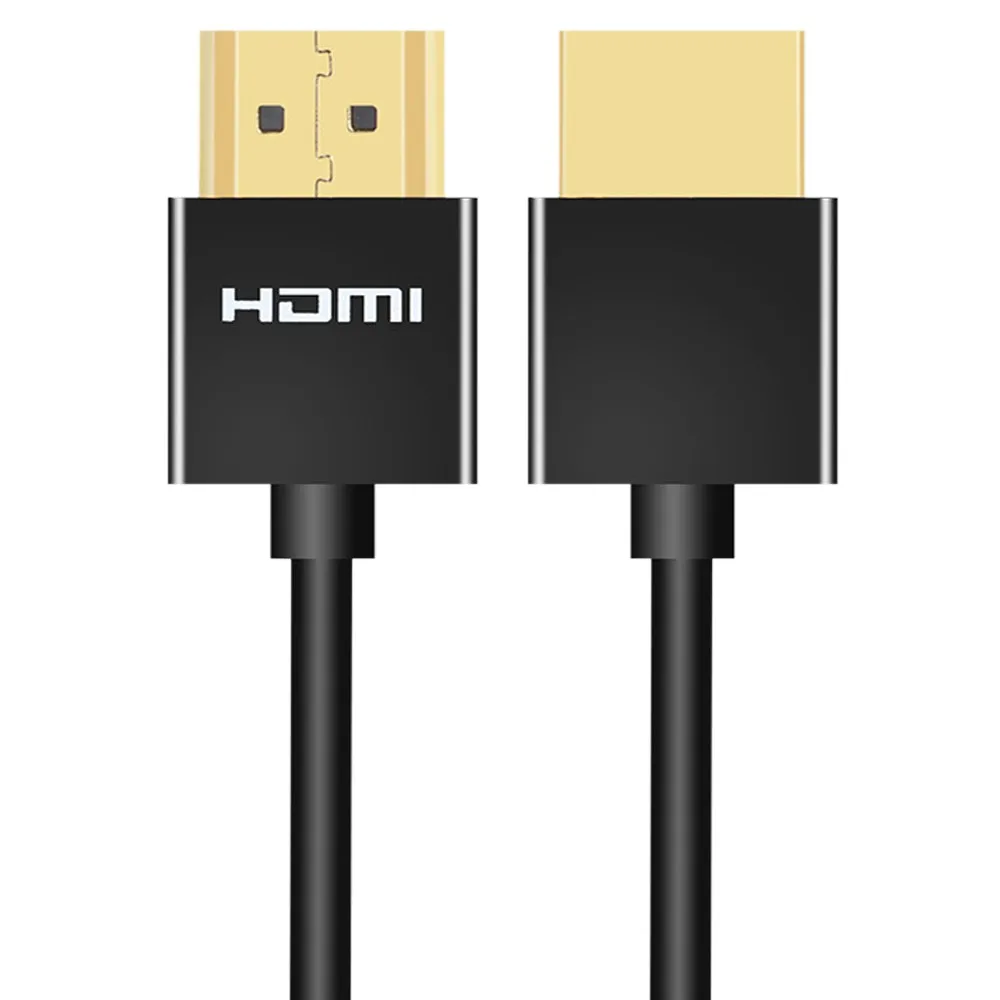

App store best selling Ultra slim HDMI cable support 4K 3D

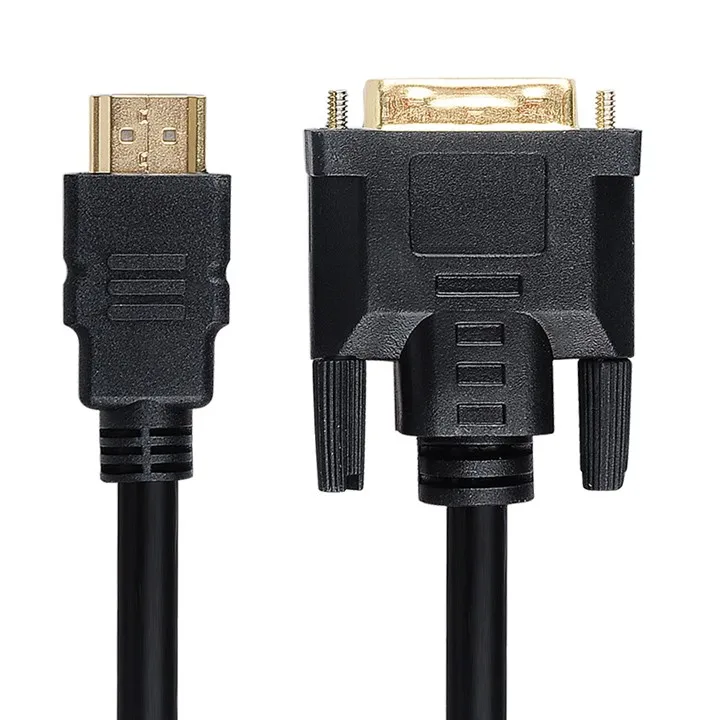

HDMI to DVI-D Cable
HDMI to VGA Adapter

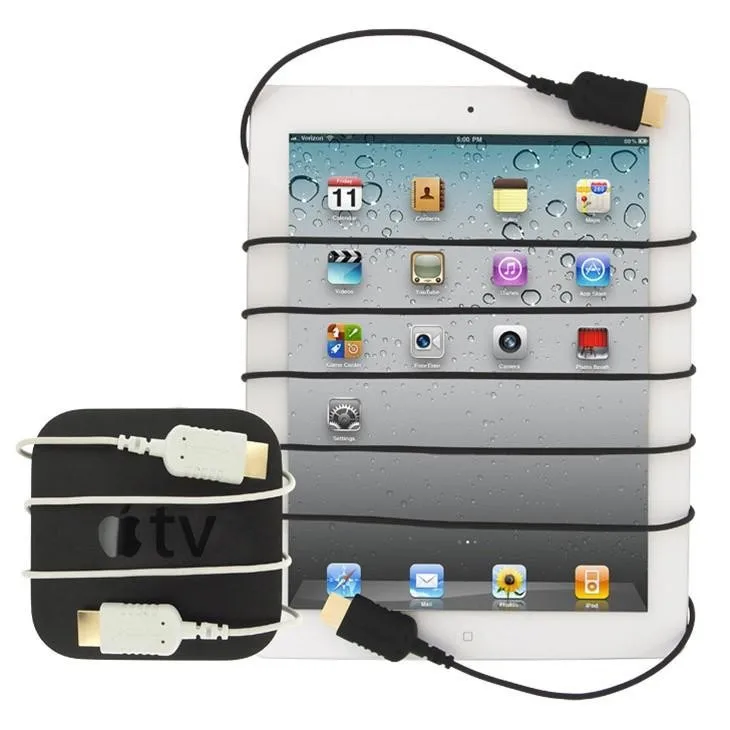

Core Technology ! World ' thinnest most flexible HDMI cable 2.5mm
3 Port 4K HDMI Switch 3x1 Switch with Pigtail Cable Supports Full HD 4K 3D

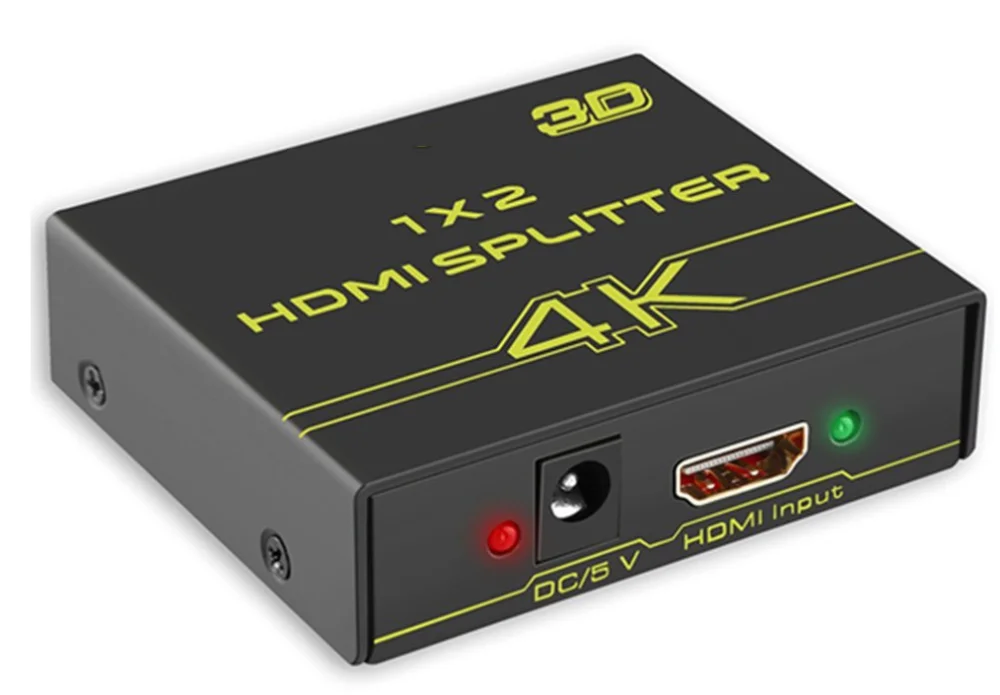

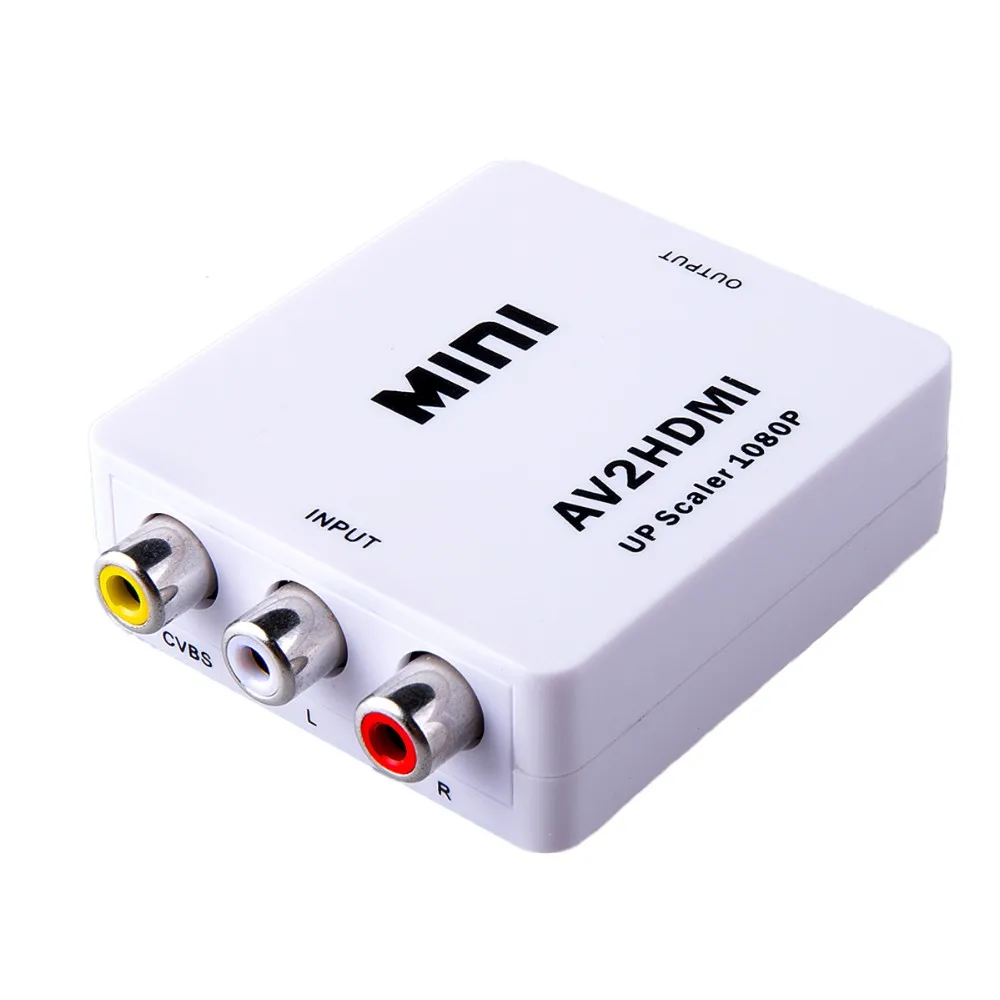

1 in 2 out HDMI 2 port splitter supports 4K 3DRCA AV to HDMI audio video converter support 1080P
