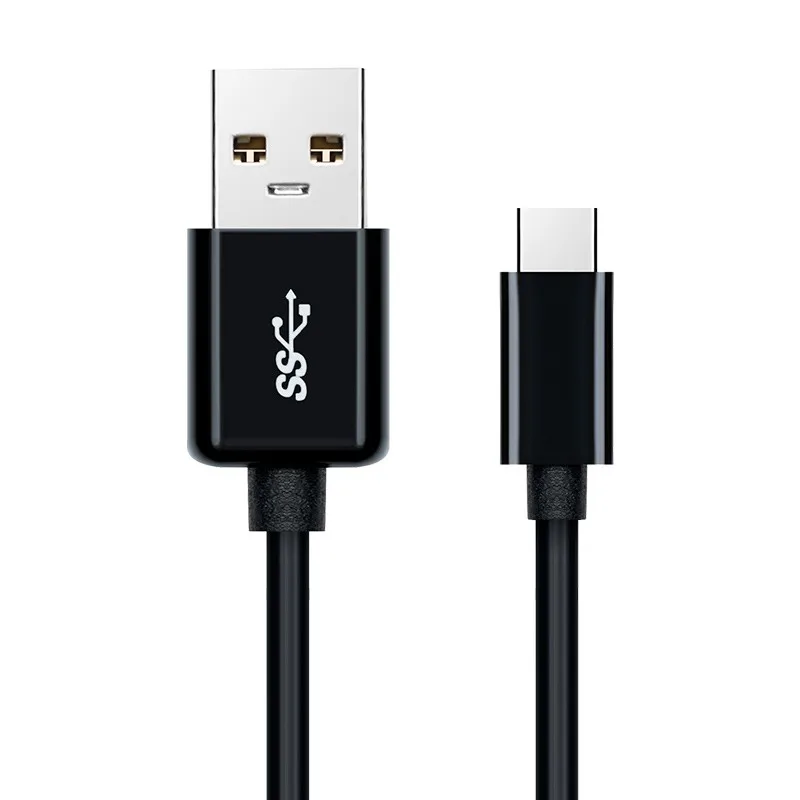

Supercharge Quick Charging Type C USB Cable 5A 5 V 0.2m
Connect a USB-C device to a USB-A port on a laptop, desktop computer, tablet, or other device for super fast charging and data transfer.
Key Features• Provide compatibility for USB-A Laptop, Tablet, or Desktop to connect to a USB-C Cellphone, Tablet Printer or External Hard Drive

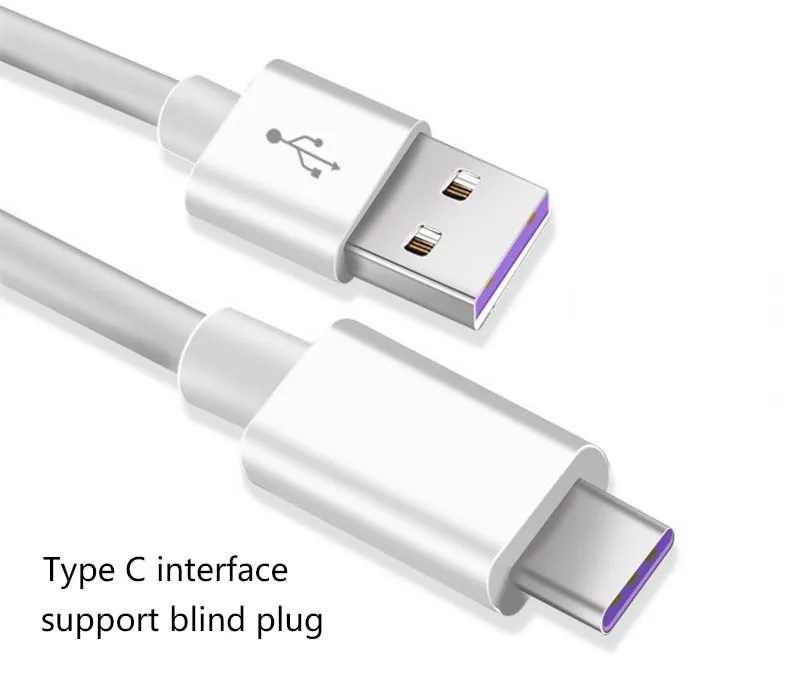

• Reversible USB-C Connector allows for plugging in any way
• USB-C Connector with 56K ohm pull-up resistor protects your mobile device from damage
• Support 4.5V 5A Supercharge technology
• Support high speed data transfer up to 480 Mbps






Technical Spec
Electrical Characteristics
• Nominal Velocity of Propagation - 480 Mbps
• DC Resistance - 300 V
• Dielectric Strength - AC 500 V/minute
• Insulation Resistance - 10 MΩ
Physical Characteristics:
• Voltage Rating - 30 V
• Maximum Bend Radius - 90 mm
• Temperature Rating - 80
• Operating Temperature Range - -20- 80
• Storage Temperature Range - -25- 85
• Approvals – RoHS, REACH, CE, UL Compliant

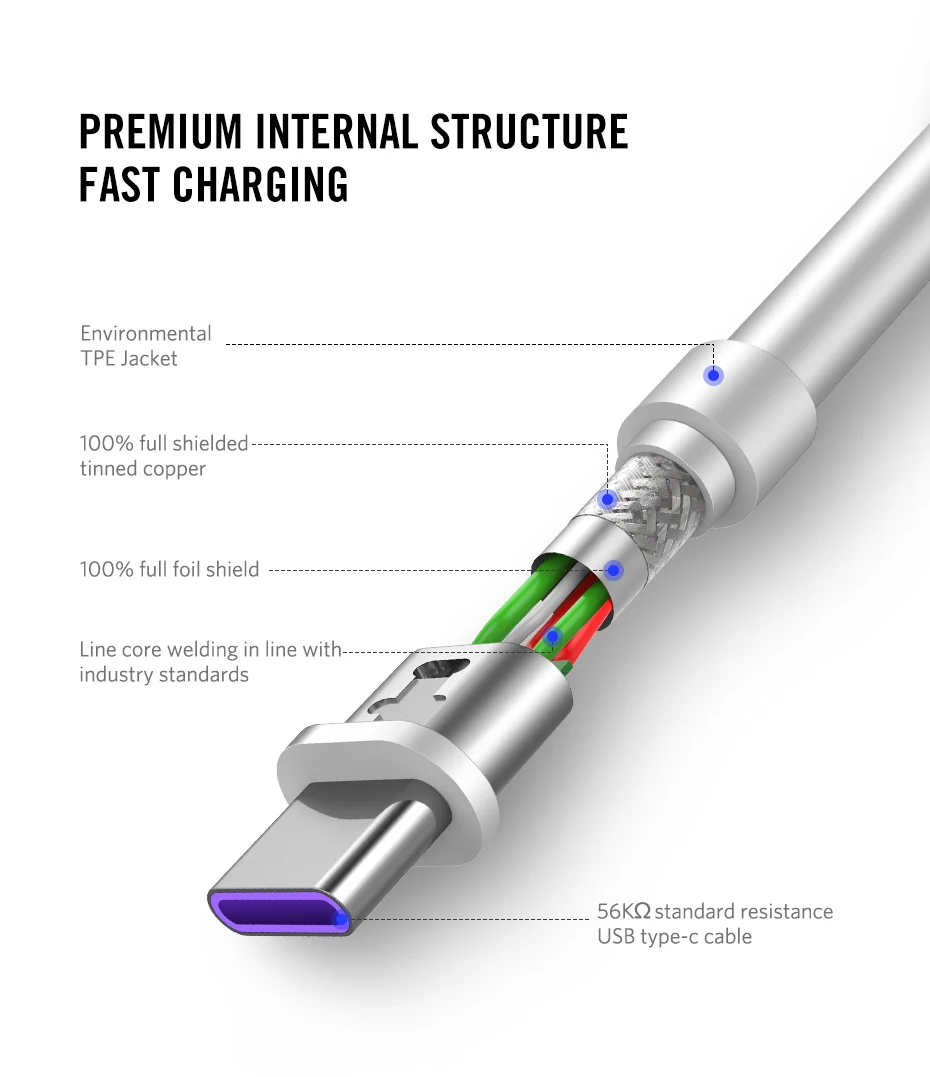

Conductor 1 (1 pair)
• Conductor Type - 28AWG Tinned Copper
• Insulation - Foamed PE SKIN
• Shield - Aluminum Foil, 100% Coverage
Conductor 2 (2 conductors)
• Conductor Type - 20AWG Tinned Copper
• Insulation - HDPE
Overall Cable
• Drain Wire - 28AWG Tinned Copper
• Foil Shield - Aluminum Foil, 100% Coverage
• Braided Shield - 16/3/0.12, Al/Mg
• Jacket - PVC, Black, O.D.: 3.8±0.2 mm
Connector 1
• Connector Type - USB 2.0 A Male
• Pin Construction - Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Connector 2
• Connector Type - USB 2.0 Type C Male
• Pin Construction - Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Technical Data sheet and testing report can be provided by email.
SKU
SPECIFICATION
C103-002
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 0.2m
C103-005
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 0.5m
C103-010
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 1m
C103-012
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 1.2m
C103-015
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 1.5m
C103-018
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 1.8m
C103-020
USB 2.0 USB-C to USB-A Data Supercharge and Cable, 4.5V 5A, 2m
Related Hot selling

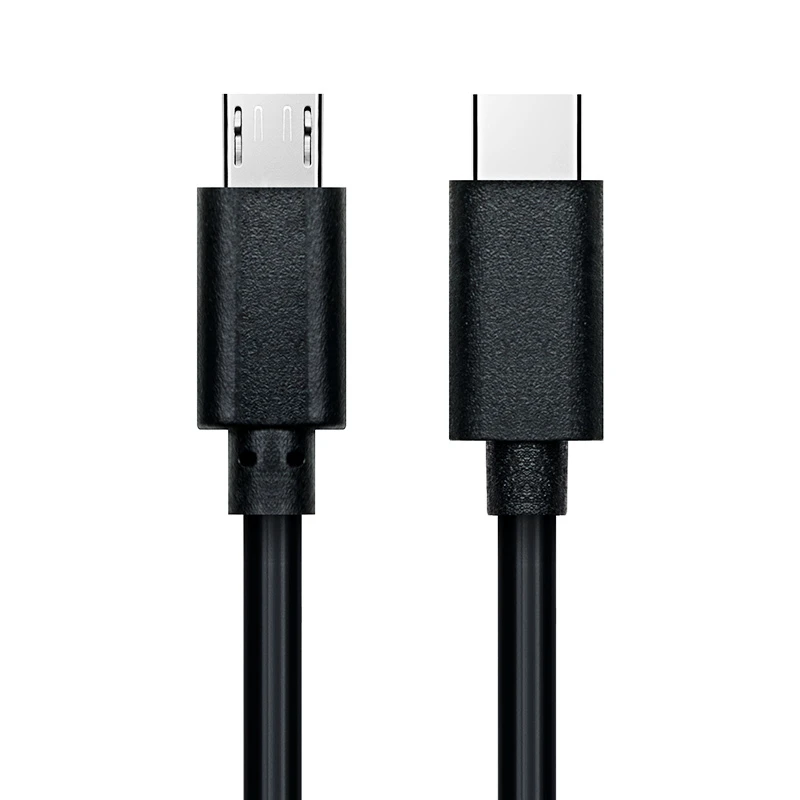

USB-C to Micro USB Charging Cable

USB-C to USB-A 2.0 Cable, ABS shell

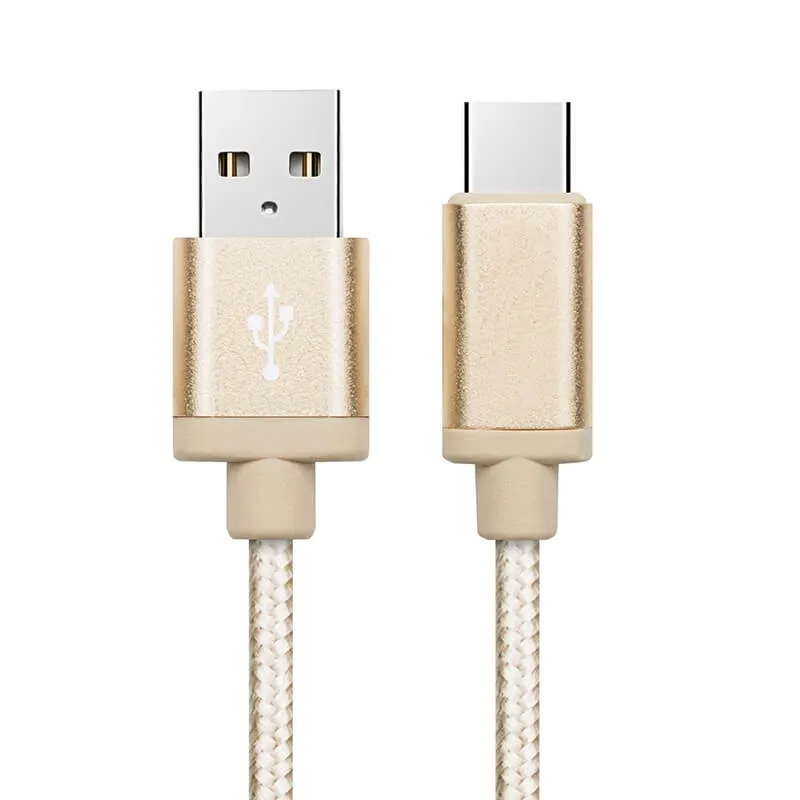

Nylon braided USB-C t0 USB-A 2.0 Cable

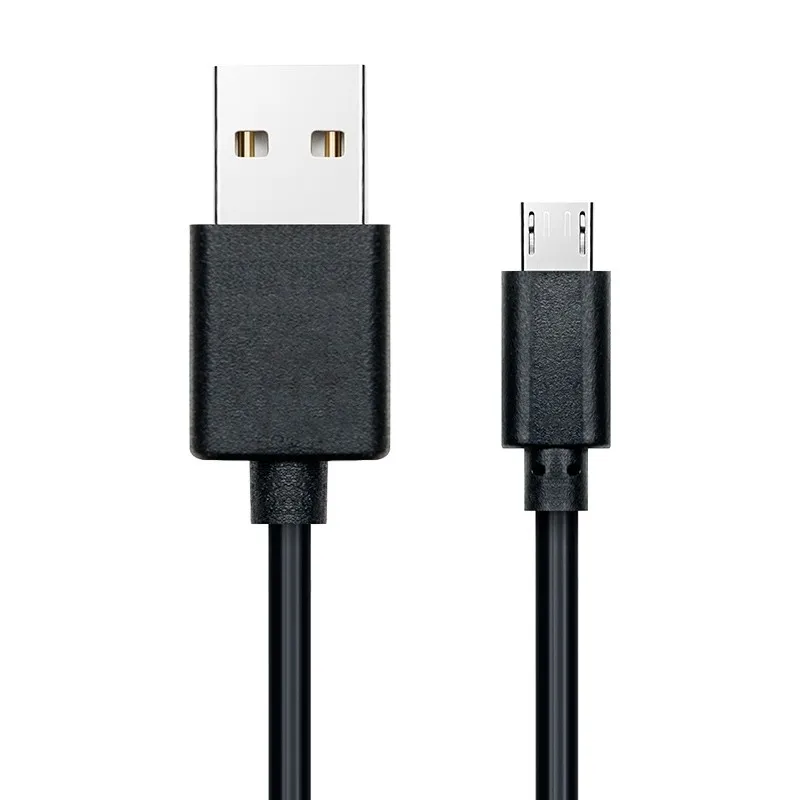

USB to Micro Charge data cable

USB Type C to type c charging data cable

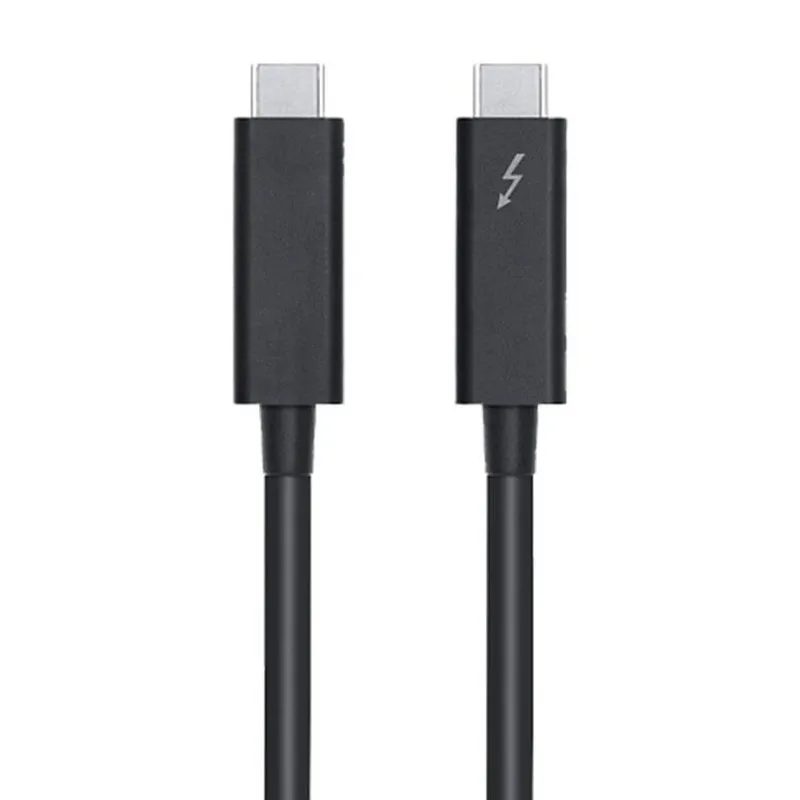

40 Gbps thunderbolt 3 to thunderbolt 3 cable
