Super Speed HDMI Long Fiber 8K@60hz 4K@120hz HDMI AOC 8K HDMI Active Optical Cable

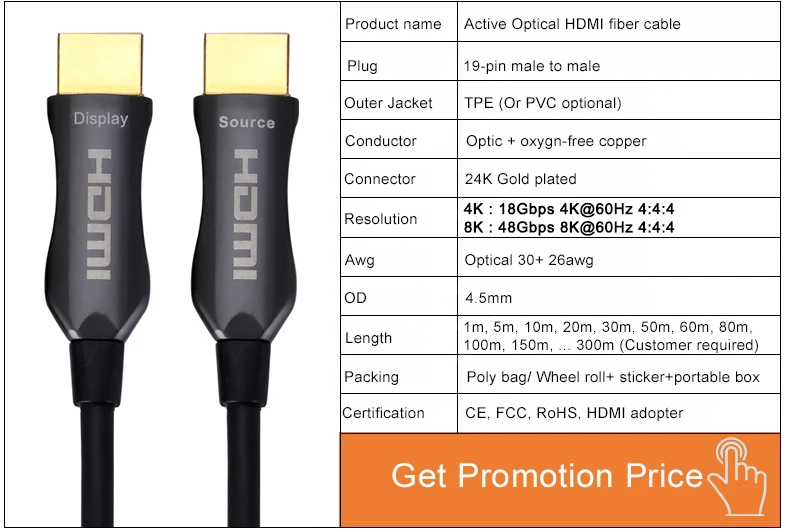

Specification:
Product name Hotsell high quality Super Speed HDMI Long Fiber 8K@60hz 4K@120hz HDMI AOC 8K HDMI Active Optical Cable
keyword 8K Optical fiber HDMI cable
Plug 19-pin male to male

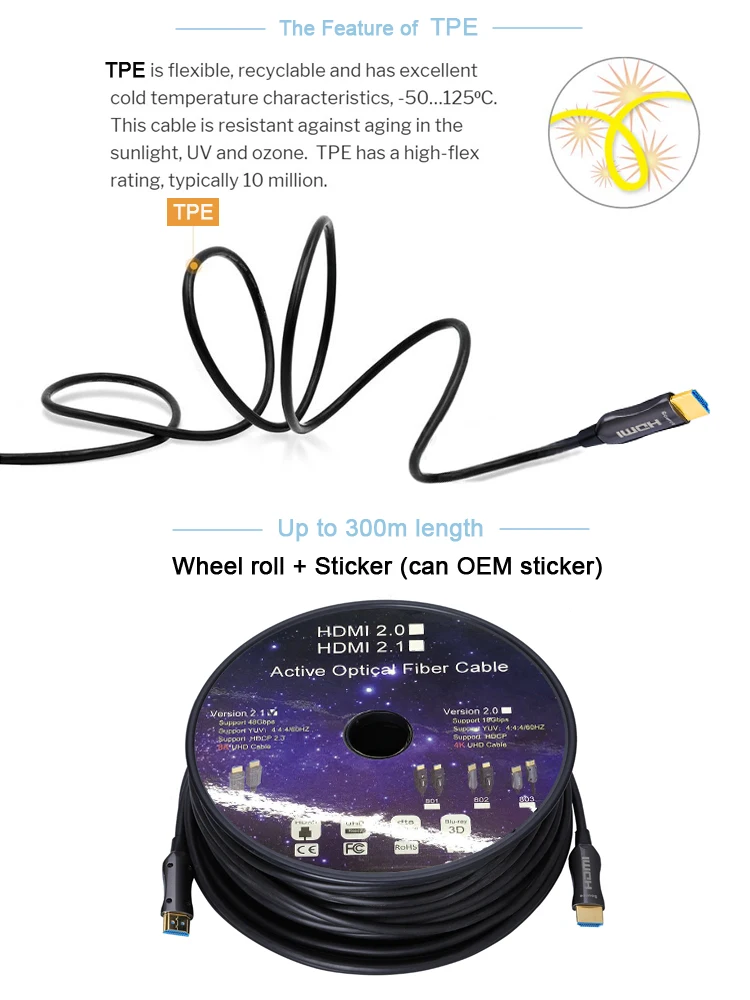

Outer Jacket PVC Jacket
Conductor oxygn-free copper
Connector 24K Gold plated
Resolution 48Gbps 4K@120Hz
Certification CE, FCC, RoHS, HDMI adopter
Material optic cable + Bare coppe OD:4.5mm
Length 2m to 100m
Electrical:
Quality Control 100% open and short test, 216P, 8K 60Hz and 3D test
Voltage DC 300V 5MΩ /10ms
Insulation resistance 10M minimum
Contact resistance 2Ω Maximum
Working temperature -25° C - 80° C
Data transfer rate 18Gbps maximum
Differential impedance 100± 10Ω (TDR)

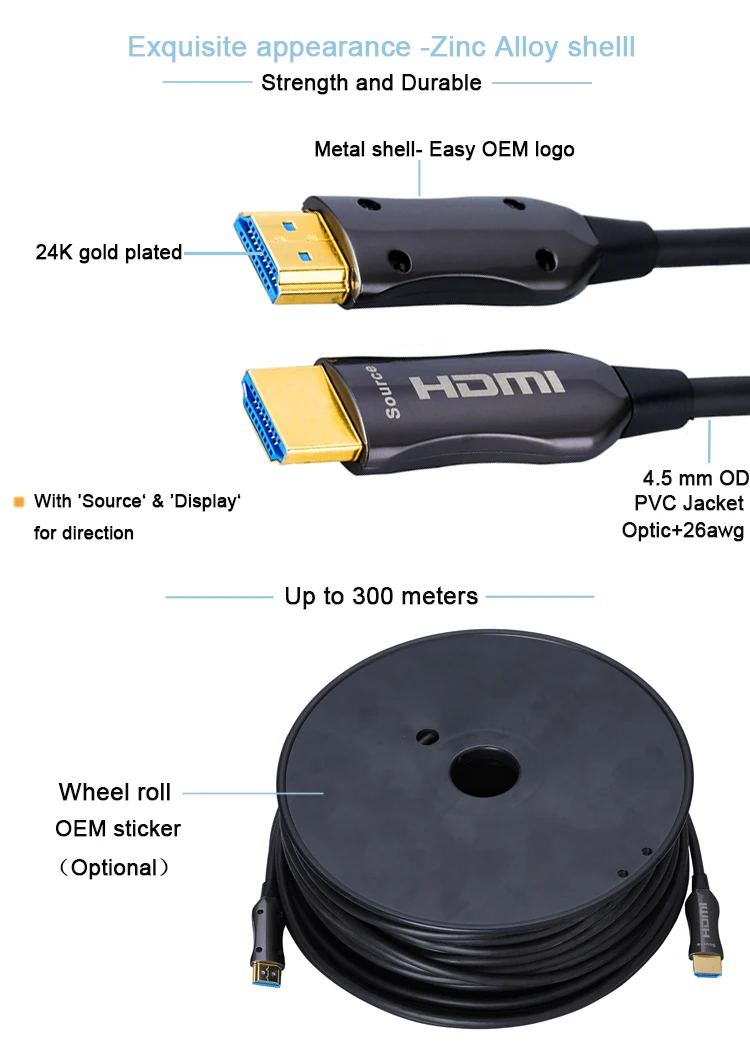

Features and structure of HDMI AOC cable:
- HDMI AOC cable is a hybrid active optical fiber composed of four multimode fiber and seven copper cables
- Can directly transmit high resolution, lossless 4K@120HZ ultra-high-definition video directly
- Center conductor: high quality digital signal delivered by oxygen-free copper
- Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability
- Inner shield: 100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
- Outer shield: 95% copper braid shield, prevents most low frequency noises and interference




product use

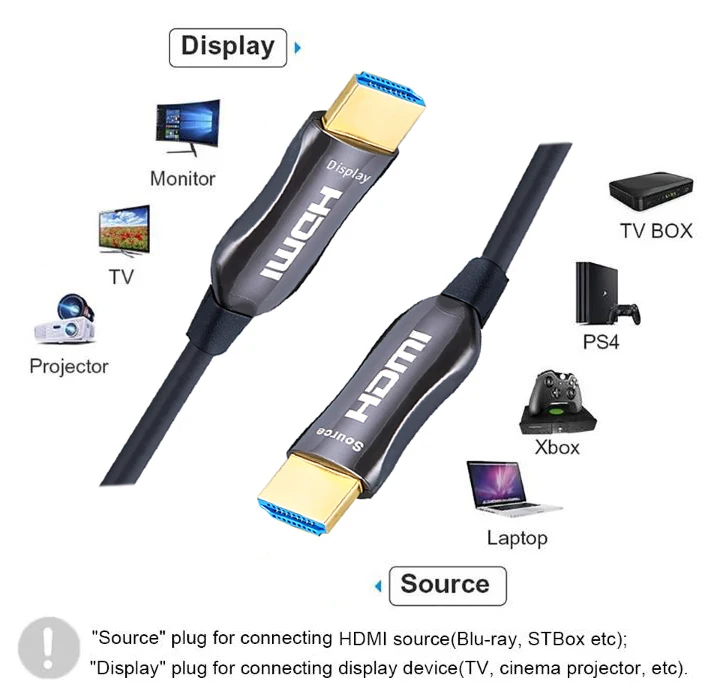

Application:
HDTV,home themter,DVD player,projector,PS4,XBOX 360 and other HDMI devices.

300 meters length maximum

HDMI AOC cable, fiber optic cable offer a HDR picture

Packaging & Shipping
Packaging: HDMI AOC cable products normal packing (And we will also provide the OEM package)

Shipping: More shipping ways can be chosed.
(1)by express (including DHL,UPS,EMS,Fedex):3~7days
(2)by sea:21~45days
(3)by air:3~7days

- For sample: You are welcome to place sample order to test our superior quality and services.
- For OEM : The OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
- For order: The order information and photos at different production stage will be sent to you and the information will be updated timely.
