SPECIFICATION
Normal type Flame retardant
WDZC-YJY
WDZB-YJY

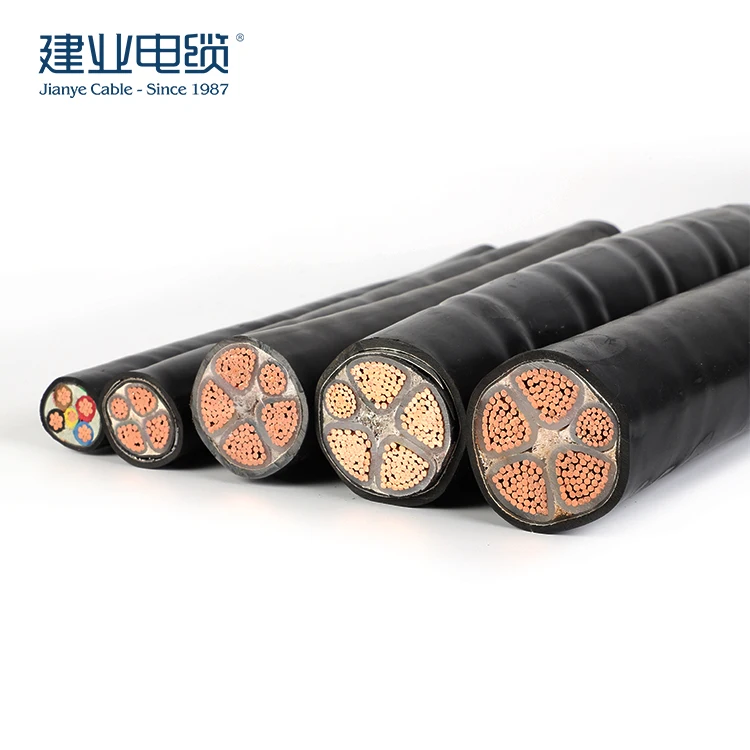

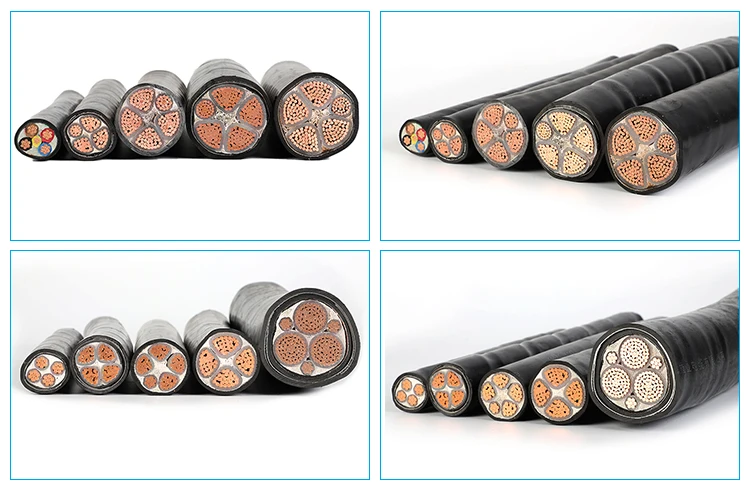

WDZA-YJY Cu conductor XLPE insulated PVC sheathed low smoke zero halogen flame resistant power cable
WDZC-YJY23
WDZB-YJY23
WDZA-YJY23 Cu conductor XLPE insulated polyolefin sheathed internal steel type armored low smoke zero halogen flame resistant power cable
WDZC-KYJY
WDZB-KYJY
WDZA-KYJY Cu conductor XLPE inSUlated polyolefin Sheathed low Smoke Zero halogen flame resistant control cable
WDZC-KYJY23 WDZB-KYJY23 WDZA-KYJY23 Cu conductor XLPE insulated polyolefin sheathed internal steel type armored low smoke zero halogen flame resistant power cable
♦.Standards:
The cable is manufactured according to GB/T 19666. The rated voltage Uo/U of the cable is up to 0.6/kV.
♦.Operation characteristic
1. Rated voltage Uo/U: up to 0.6/1kV
2. Maximum rated temperature
2.1 PVC insulated cable: The maximum operating tern­perature of cores shall not exceed 70°C when the cable is used for long period. The temperature of cores shall not exceed 160°C at short circuit (the max. duration dose not exceed 5 seconds).
2.2 XLPE insulated cable: The maximum operating temperature of cores shall not exceed 90°C when the cable is used for long period.The temperature of cores shall not exceed 250°C at short circuit (the max. duration dose not exceed 5 seconds).
♦.Installation requirement
Cable installation temperature shall not be less then 0°C.
The permissible bending radius of cable shall not be less
then 10 times of the cables diameter.
The cable is suitable for the places have special req­uirement to fire resistance,light transmittance. HCI and toxicity..
♦.Specification
Power cable
Nominal cross-sectional area:1.5-630mm2.
Control cable
Nominal cross-sectional area:0.75-10mm2.
♦.Main Technical parameter
Flame resistant property
Test cable bunching combustion according to GB/T 19666 or IEC 60332-3 standards.
ZA: the nonmetal content of cable is 7L per meter, time of
supply fire is40 minute.
ZB: the nonmetal content of cable is 3.5L per meter, time
of supply fire is 40 minute.
ZC: the nonmetal content of cable is 1.5L per meter, time
of supply fire is 20 minute.
Test result: the maximal charring height should not ex­ceed 2.5m.
