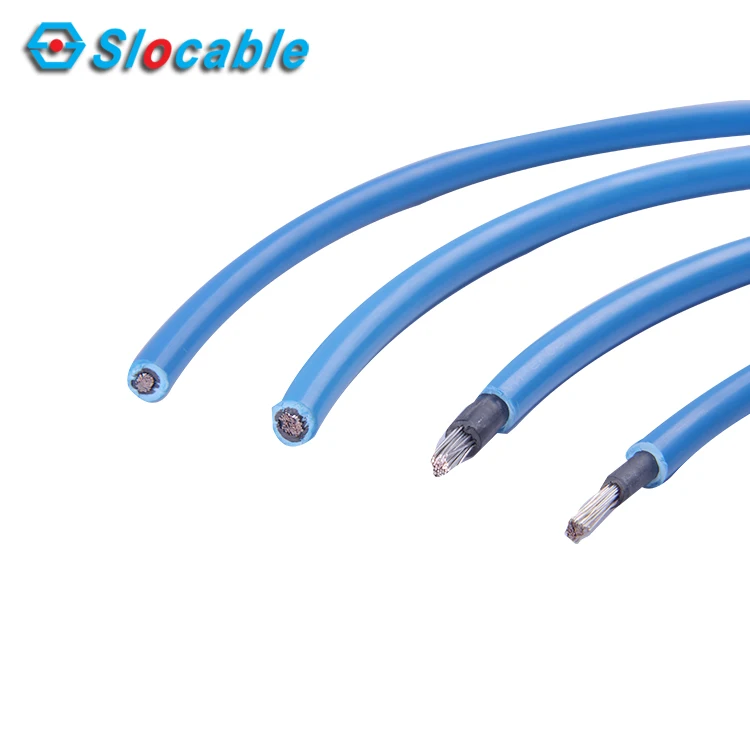

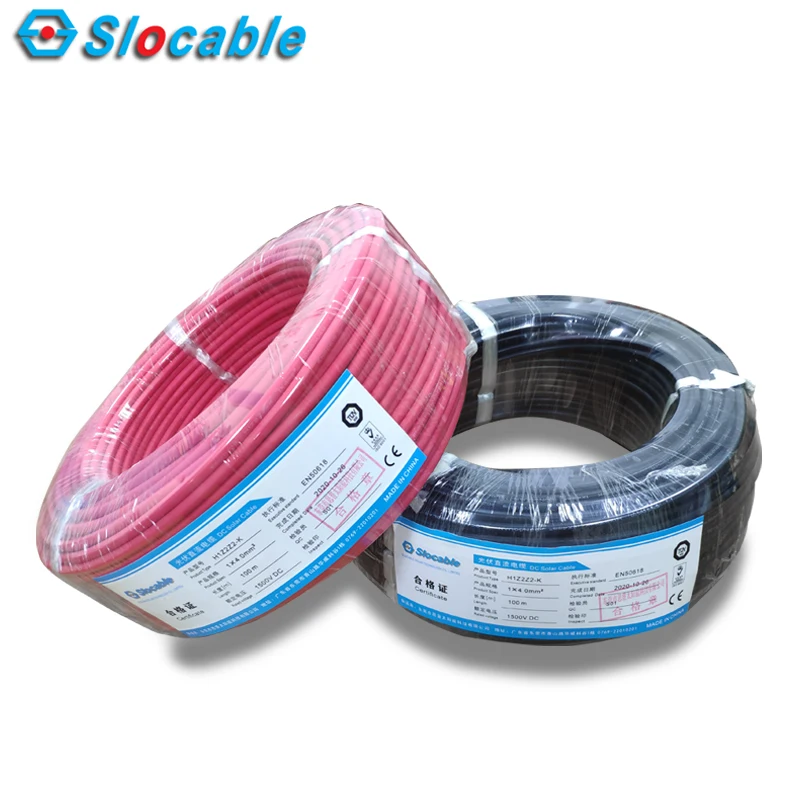

Slocable High Voltage 4mm2 Copper Wire PV 1500V Solar Panel Wire
Detail Information for 1500V Solar Cable
Dual wall insulation. Electron beam cross-linkedExcellent resistance to U.V., oil, greases, oxygen, water, fluids, salt, general weathering and ozoneExcellent resistance to abrasionHalogen free, flame retardant, low toxicityExcellent flexibility and stripping performanceHigh current carrying capacityCE, TUV and ISO approved
Technical Data of 1500V Solar Cable
Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
PV-1x4mm2 4.0mm2 56 x φ0.285mm 2.6mm 4.97 Ω/km 6.2mm 1500V 50A
(We also produce the solar cable of 2.5mm2, 6mm2, 10mm2,
you can consult me directly if necessary)
Wire: Copper (Class 5, tinned)
UV Resistance
Insulation Material: XLPE
High wear and abrasion resistance
Double Insulation
Flame test according to:
DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free
Smallest Permissible Bending Radius : 5 x D
High resistance against oil, greases, oxygen and ozone
Temperature Range: -40 ~ +90
Microbe-resistant

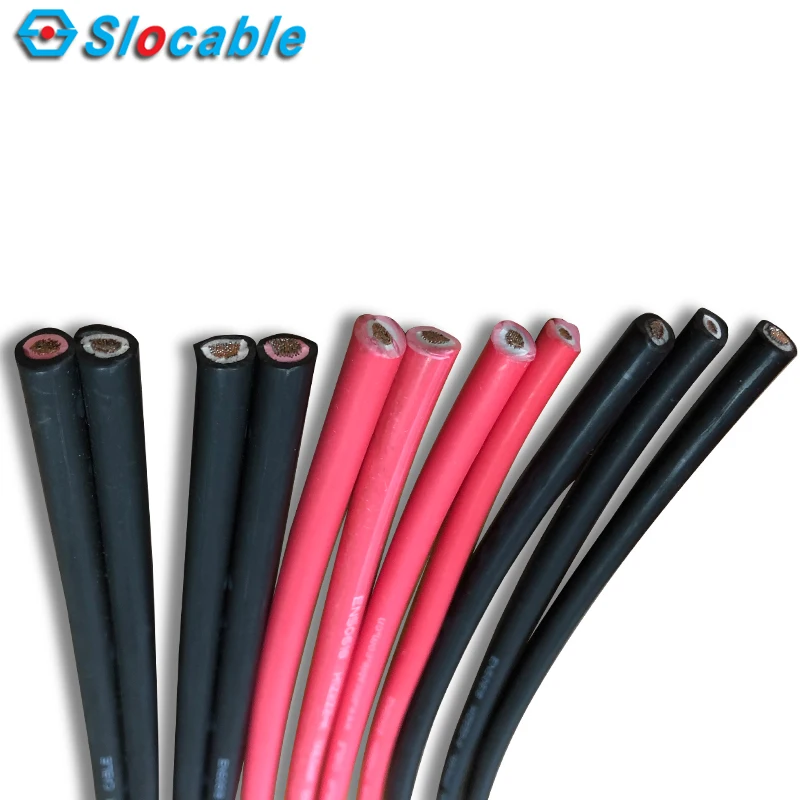

Colours: Black, Red


We can customize blue solar cables, pls consult me if necessary.

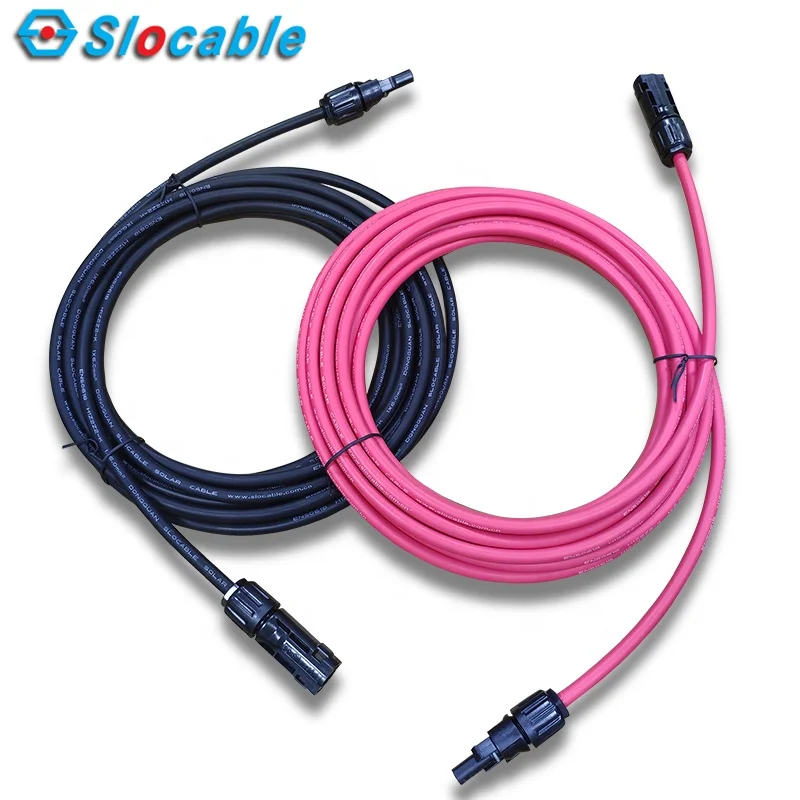

And we can also customize the cable with the solar connector as your requirement
