Slocable High Grade 2 PFG 1169 PV1-F 4mm2 and 2.5mm2 Solar Cable with Solar Connector 2to1
Detail information of Connector 2to1:
1. PV Connectors:
Simple on-site processingMating safety provided by keyed housingsMultiple plugging and unplugging cyclesAccommodates PV cables with different insulation diametersHigh current carrying capacityCE, TUV and ISO approved
2. Solar Cables:
Dual wall insulation, electron beam cross-linked.Excellent resistance to U.V., water, ozone, fluids, salt, general weathering.Excellent resistance to abrasion.Halogen free, flame retardant, low toxicity.Excellent flexibility and stripping performance.High current carrying capacity.CE TUV and ISO approved

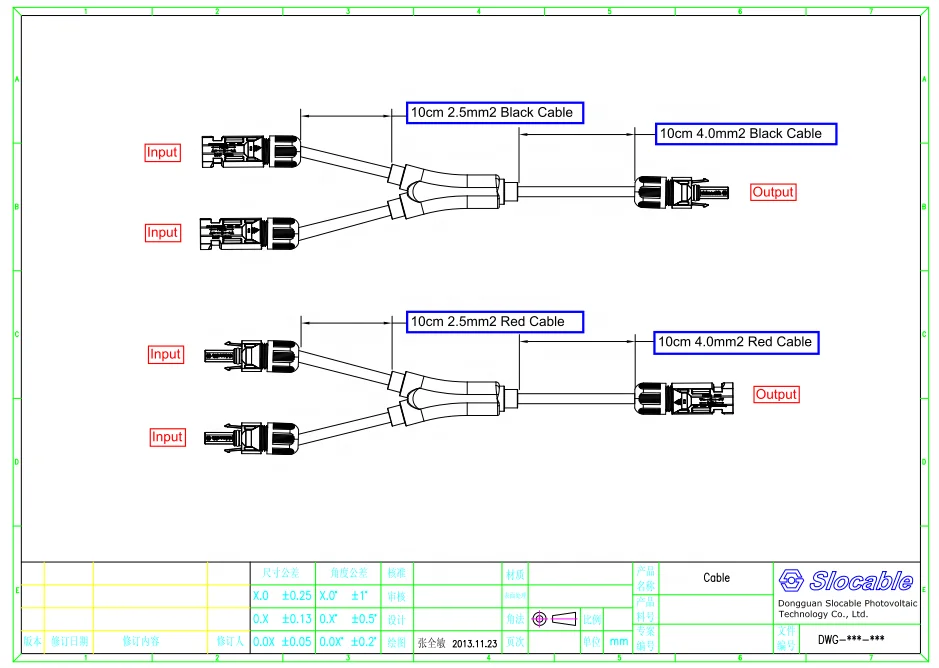

Technical Data of of PV Connector 2to1 Assembly:

Technical Data of PV Connectors
Rated current: 50A (2.5-6mm²)
Degree of protection: IP2*/IP68
Retaed voltage: 1500V/1000V DC
Flame class: UL94-V0
Test voltage: 6000V(50Hz,1min)
Safety class: II
Overvoltage category: CATIII
Suitable cable: OD4.5-8.5 (2.5-6.0mm²)
Contact resistance: <0.5mΩ
Insertion/ withdrawal force: ≤50N/>50N
Contact material: Copper, Tin Plated
Connecting System: Crimp connection
Insulation material: PPO
Temperature range: -40 ~+85

Technical Data of Solar Cables
Wire: Copper (Class 5, tinned)
UV resistance
Insulation material: XLPE
High wear and abrasion resistance
Double insulation
Flame test according to:
DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free
Smallest permissible bending radius: 5 x D
High resistance against
oil, greases, oxygen and ozone
Temperature range: -40 ~ +90
Microbe-resistant
Colours: Black, Red

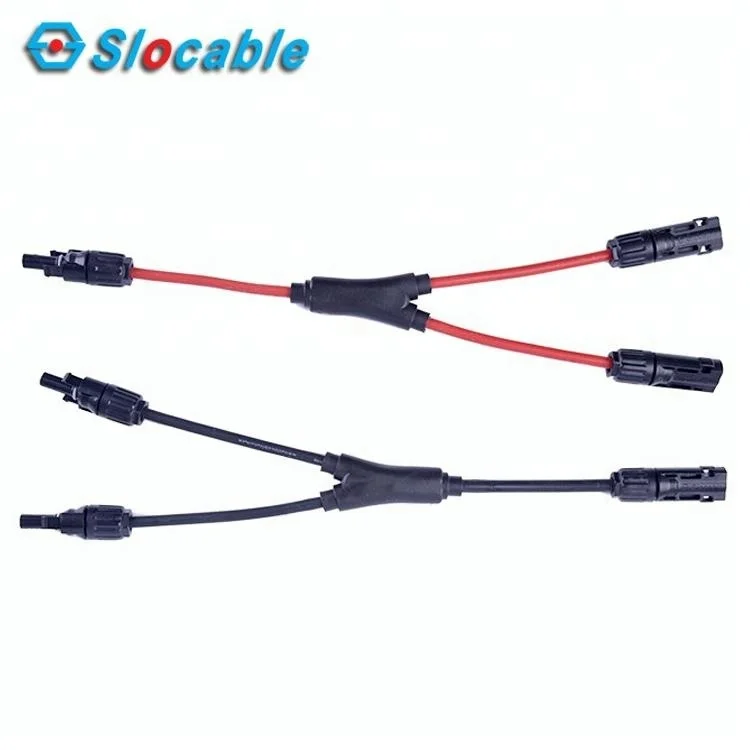

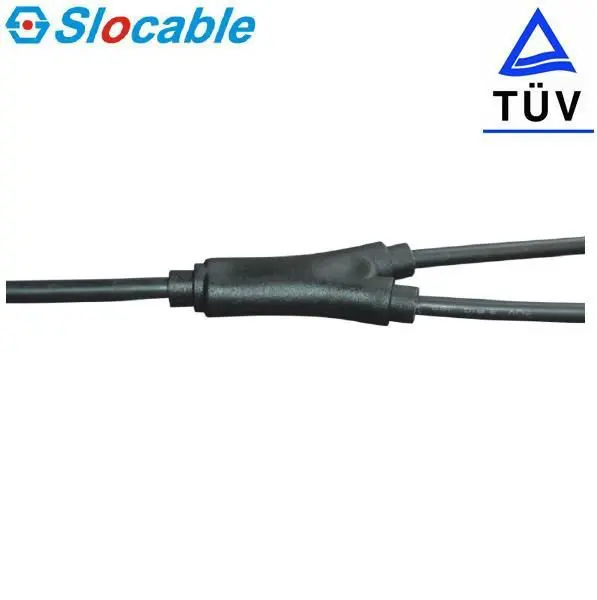

Pictures of PV Connector 2to1

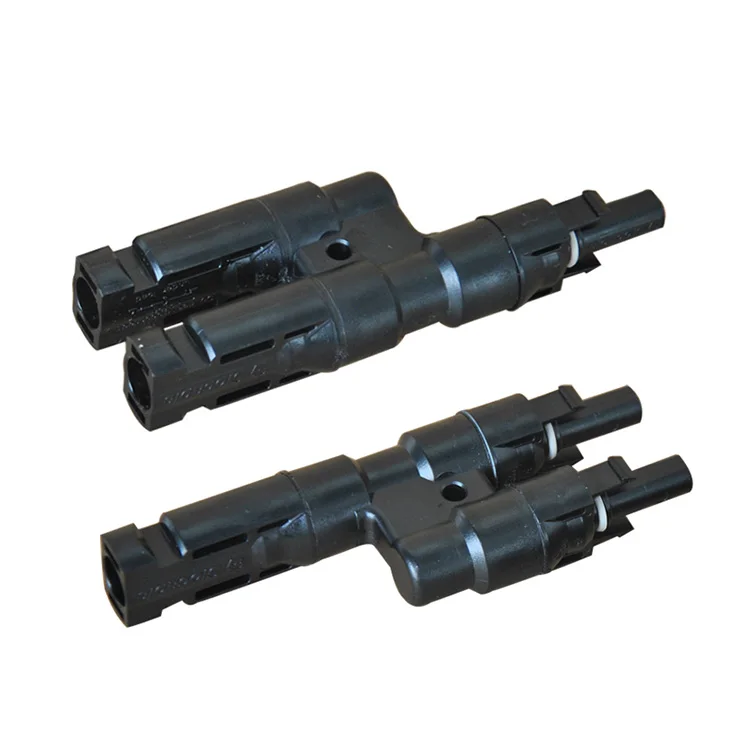

Click the following picture to get more information of 2 to 1 Connector
