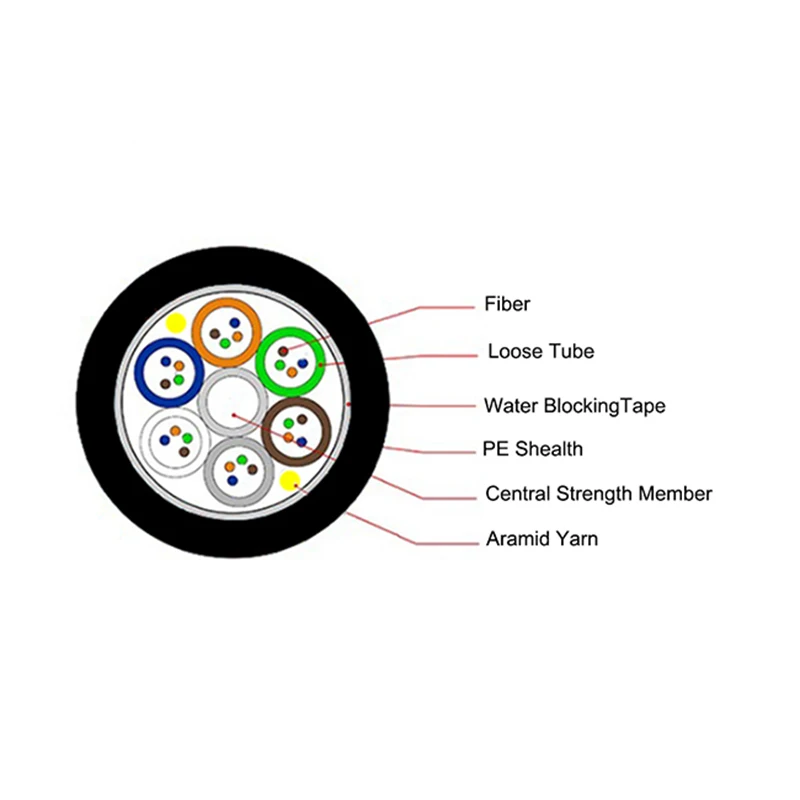

The fibers,250um, are positioned in a loose tube made of a high modules plastic. The tubes are filled with a water-resistant filling compound. A fiber reinforce(FRP) located in the center of core as a non-metallic strength member. The tubes(or fillers) are stranded around the strength member into a compact and circular core. The cable core is protective from water ingress by water-blocking yarn. The cable is completed with a PE sheath.


Feature
1, Non-mental design can prevent the cable from radio interference and magnetic wave interference
2, Specially designed compact structure is good at preventing loose tubes from shrinking
3, Loose tube filling compound ensure good moisture resistance performance
4, Good flexibility
5, High dense fiber packed,small diameter and light weight; it`s the better option for blowing installation progress.
Technical data
No. of cable
24
36
48
60
72
96
144
216
Fiber type
G.652D
Central Strength Member
Material
FRP
Diameter(±0.05mm) mm
1.8
1.8
1.8
1.8
1.8
2.2
1.8
1.3
Additional Sheath
Material
MDPE
Size(±0.05mm) mm
—
—
—
—
—
—
3.8
—
Loose Tube
Material
PBT
Diameter(±0.05mm)
1.2
Thickness(±0.03mm)
0.15
MAX.NO./per
12
Filler Rope
Material
LDPE
Diameter(±0.05mm)
1.3
NO.
4
3
2
1
—
—
—
—
Water Blocking Layer
Material
Water Blocking Yarn
Ripcord
Material
Kevlar
Outer Sheath
Material
HDPE
Thickness mm
0.5 nominal0.40(min.)
Colour
Black.
Cable Diameter(±0.2mm) mm
5
5
5
5
5
5.8
7.5
7.6
Cable Wetght(±10.0kg/km) kg/km
25
25
25
25
25
35
57
58
Attenuation coefficient
1310nm dB/km
≤0.35
1550nm dB/km
≤0.21
MAX. Tensile Strength N
500
500
500
500
500
1000
500
1000
MAX. Crush Resistance N/100mm
800
Min. bending radius
Without Tension mm
10.0×Cable-φ
Under Maximum Tension mm
20.0×Cable-φ
Temperature range
Installation
-10~+40
Transport&Storage
-40~+70
Operation
-40~+70
Application
