Version A : USB to RS485 4 cores wire end

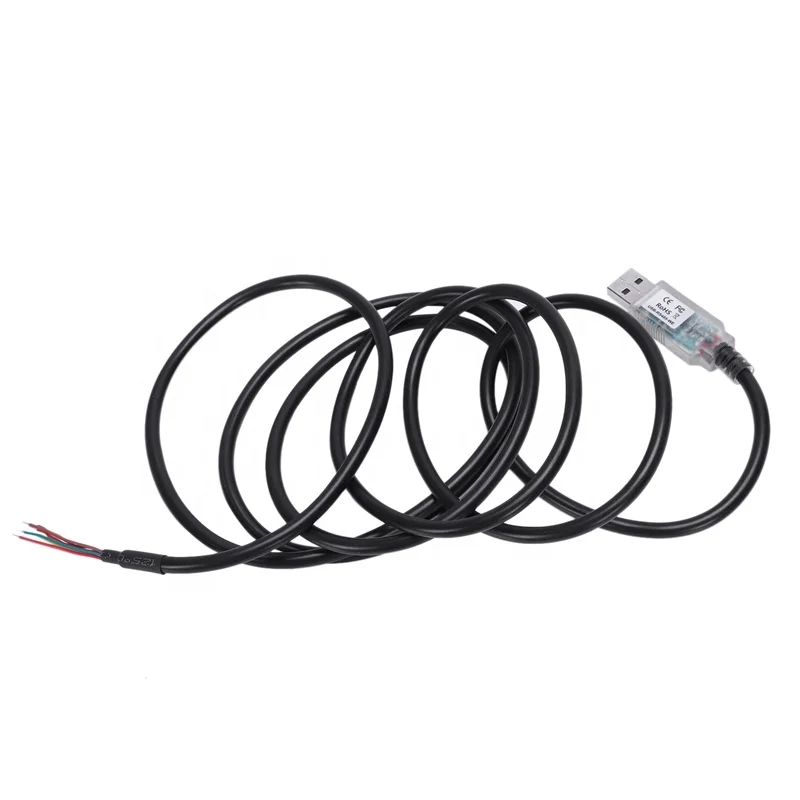

USB RS485 adapterUSB2.0. full speed 12M supportFT232 USB RS485 cable, signals compatible with USB-RS485-WE-1800-BTWith 2 LEDs for data+, data- transferingRed-VCC(5v),Black-GND,White - Data+, Green - Data-FT232RL + SP485LEEN chipSupport Android, Support Win 10, 8,8.1, Win 7, XP, 2000, Linux, Mac OSIntegrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5Support FTDI VCP driver and D2XX driverHalf duplex, non-isolated300 ~ 1Mbps baud rateUp to 5km distrance transferinVersion B : USB to RS485 6 cores wire end
ftdi usb rs485 cable, compatible usb rs485 we 1800 bt
half duplex, non isolated
Standard 10k pull up & down resistor, 120R terminal resistor
usb2.0 standard, full speed 12M support
On-board signals: Data+, Data-, VCC5V, GND
ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift
6 core, 24AWG, bare copper, PVC jacket, OD5.0mm
24AWG wire not suitable for RJ45/rj12 etc
Type USB to Serial rs485 Cable (ODM/OEM FTDI Cable)
Connector 1 USB 2.0/USB3.0
Connector 2 6Pin connector,6 open wires,DC3.5MM Plug optional
Chipset Used FT232 OR optional
Cable 3 core, 4 core, 6 core available
Pinout VCC, TXD, RTS, RXD, CTS, GND
Support WINDOWS7/8/98/ME/2000/XP,Vista32,Mac8.6 or later,LINUX O.S,etc
Detailed Images
RS485 Converter Cable FTDI Chip to 4 Wires 6 Cores End Connector Wiring Pinout USB Serial RS485 Cable Support Arduino Win10 Win8 - ANKUX.COM

RS485 Converter Cable FTDI Chip to 4 Wires 6 Cores End Connector Wiring Pinout USB Serial RS485 Cable Support Arduino Win10 Win8 - ANKUX.COM

NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android
