RG6 with messenger for CATV factory price dual/tri/quad shield PVC/PE jacket
Cable / Communication Cable
Production Video
Products Description
Name
RG6 DUAL
RG6 Tri
RG6 Quad

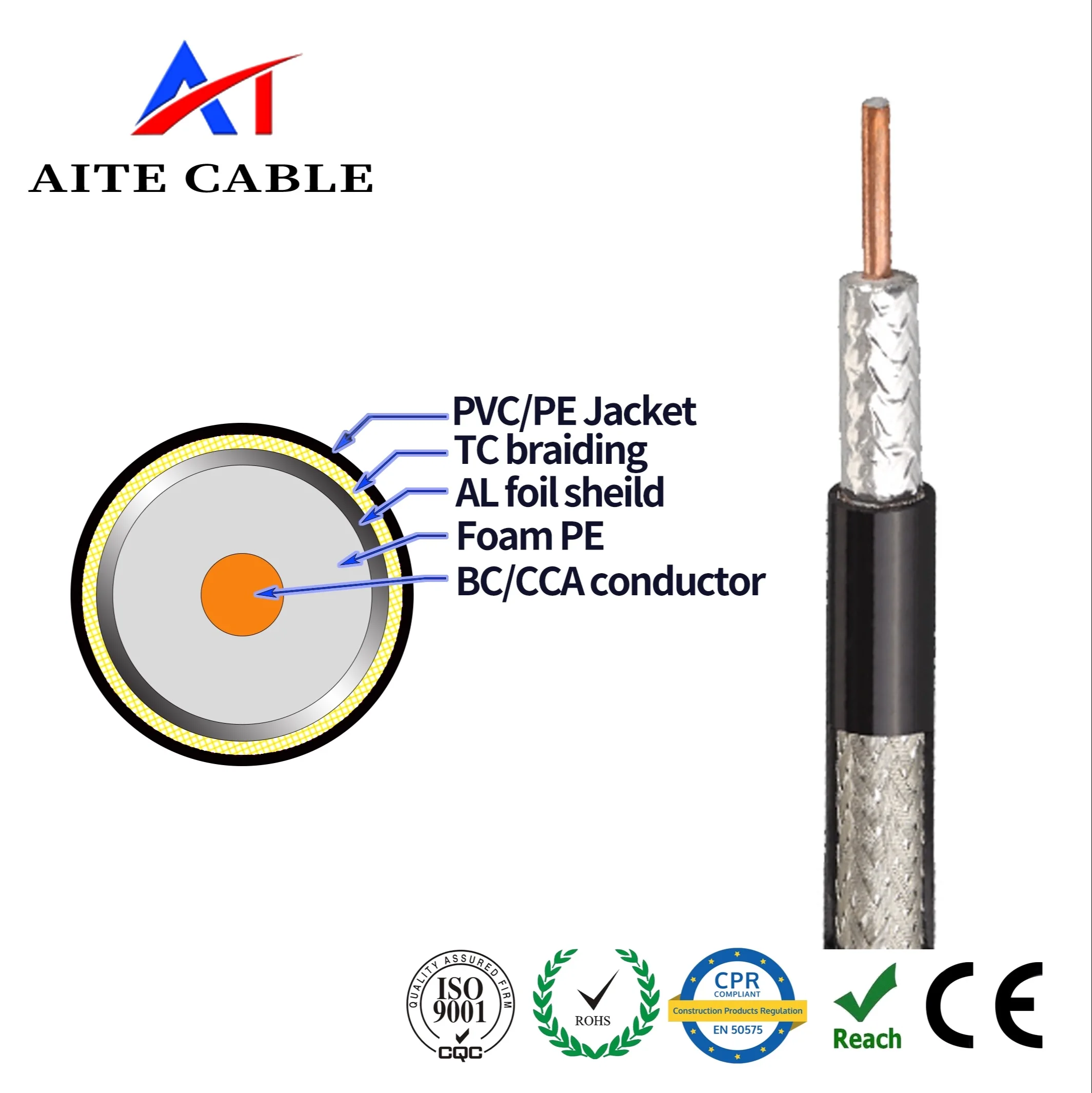

Structure
Material
Diameter(mm)
Inner conductor
Bare copper/CCS
1.02
Insulation
Foamed PE
4.57
First Shield
AL/Cu Foil
100%
Second Shield
AL/BC Braiding
40-95%
60%
60%
Third shield
AL/CU Foil
/
100%
100%
Fourth Shield
AL/BC Braiding
/
/
40%
Jacket
PVC/PE
6.90
7.06
7.50
Messenger
Galvanized steel
1.30
1.30
1.30
Electrical Characteristics
Impedance (Ω)
75±3
Capacitance (pF/m)
52±2
Velocity of Propagation(%)
85.0
Return Loss
≥20
Attenuation(@20)
Frequency (MHZ)
Max Attenuation (dB/100m)
55
5.2
187
9.3
211
10.0
400
13.5
500
15.0
750
18.5
860
20.0
1000
21.5
1500
26.8
1800
28.9
2200
32.2
3000
37.6

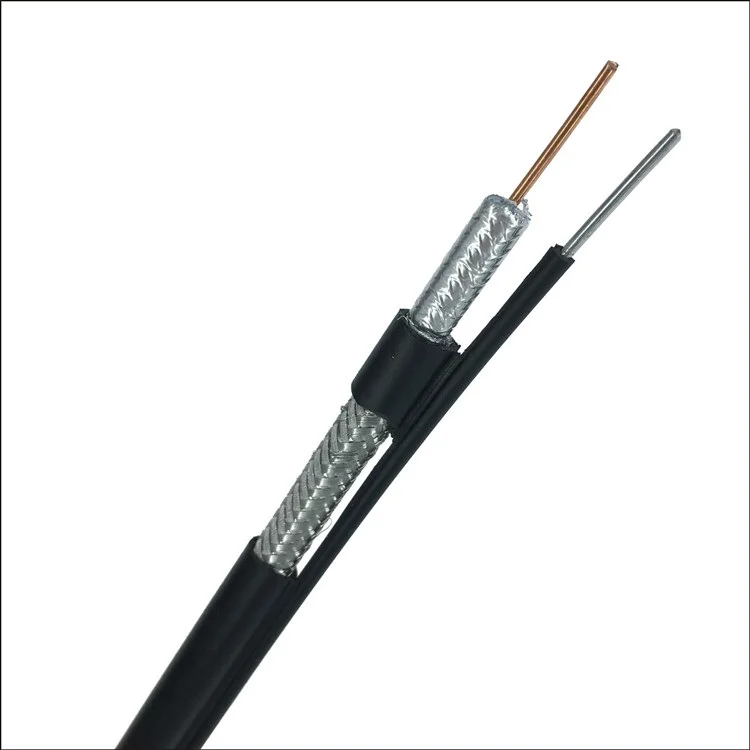

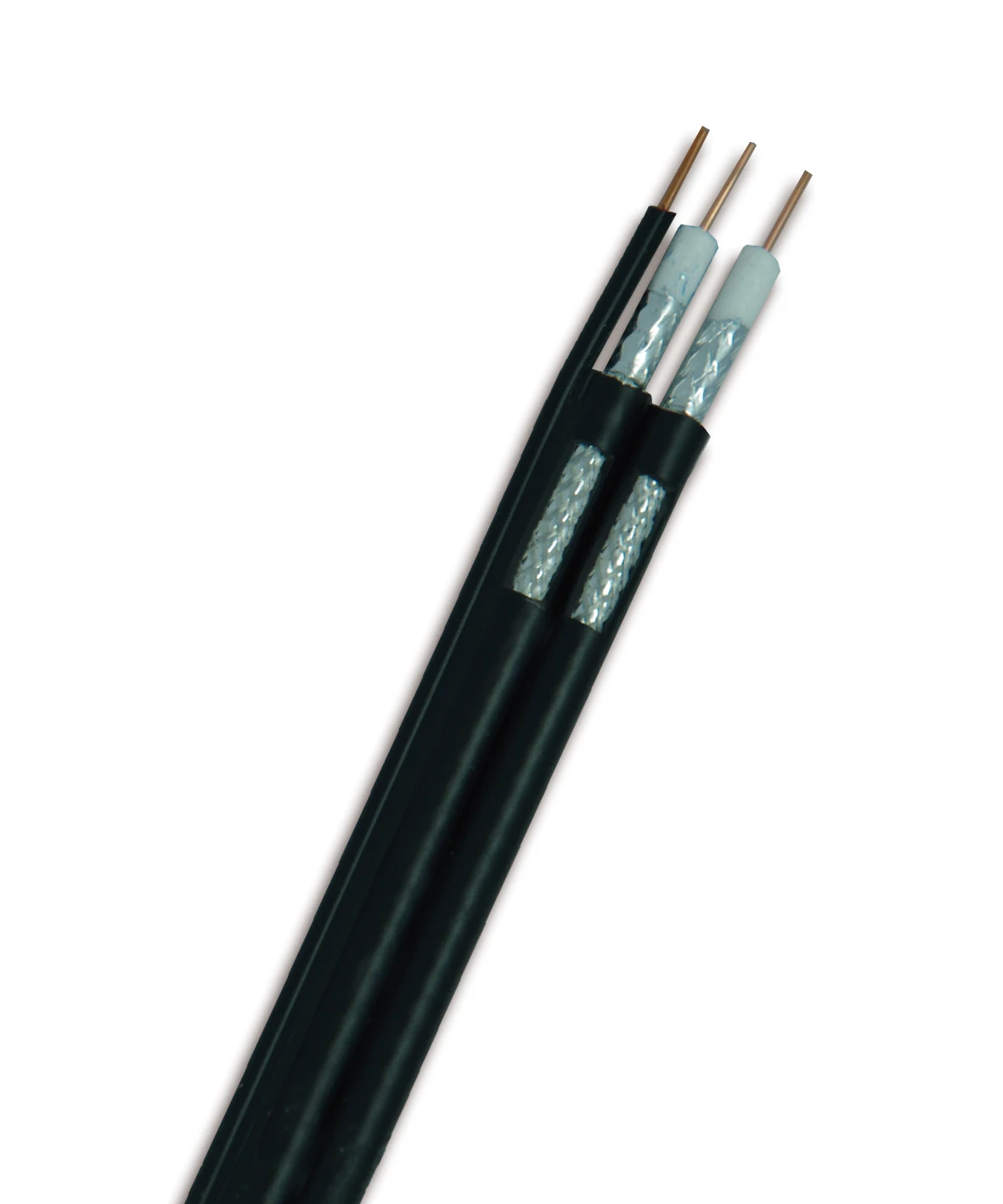

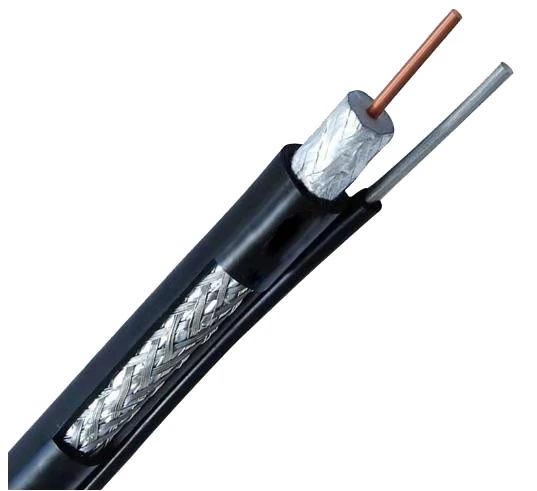

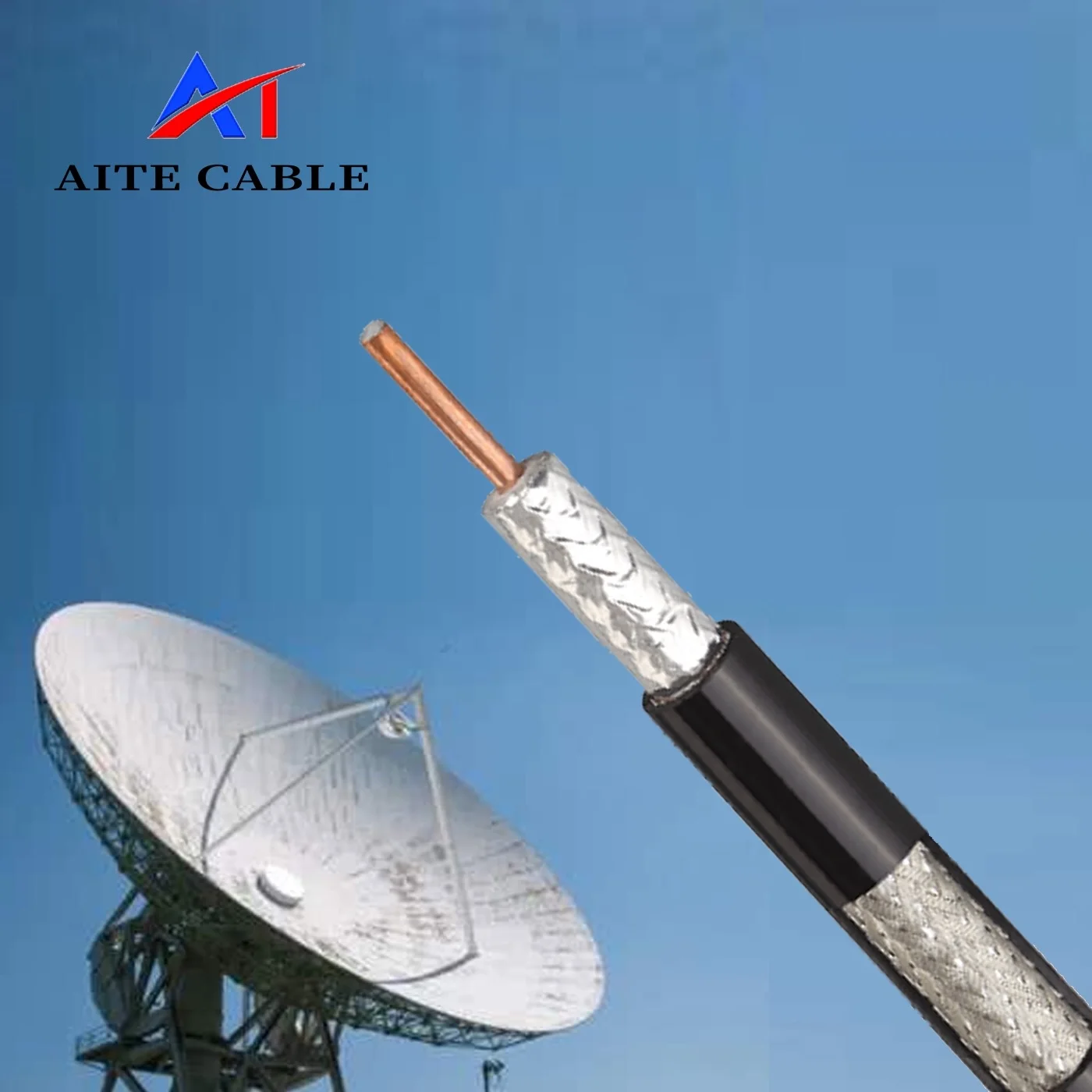

Details Images
