RG6 Siamese cables for CCTV camera cable
Cable / Communication Cable
Production Video
Products Description
Name
RG6 DUAL
Structure
Material
Diameter(mm)
Inner conductor
Bare copper/CCS
1.02
Insulation
Foamed PE
4.57
First Shield
AL/Cu Foil
100%
Second Shield
AL/BC Braiding
40-95%
Jacket
PVC/PE/LSZH
6.90
Power wire conductor
CU/CCA
18AWG
Power wire insulation
PVC/PE
2.0
Electrical Characteristics
Impedance (Ω)
75±3
Capacitance (pF/m)
52±2
Velocity of Propagation(%)
85.0
Return Loss
≥20
Attenuation(@20)
Frequency (MHZ)
Max Attenuation (dB/100m)
55
5.2
187
9.3
211
10.0
400
13.5
500
15.0
750
18.5
860
20.0
1000
21.5
1500
26.8
1800
28.9
2200
32.2
3000
37.6
Details Images

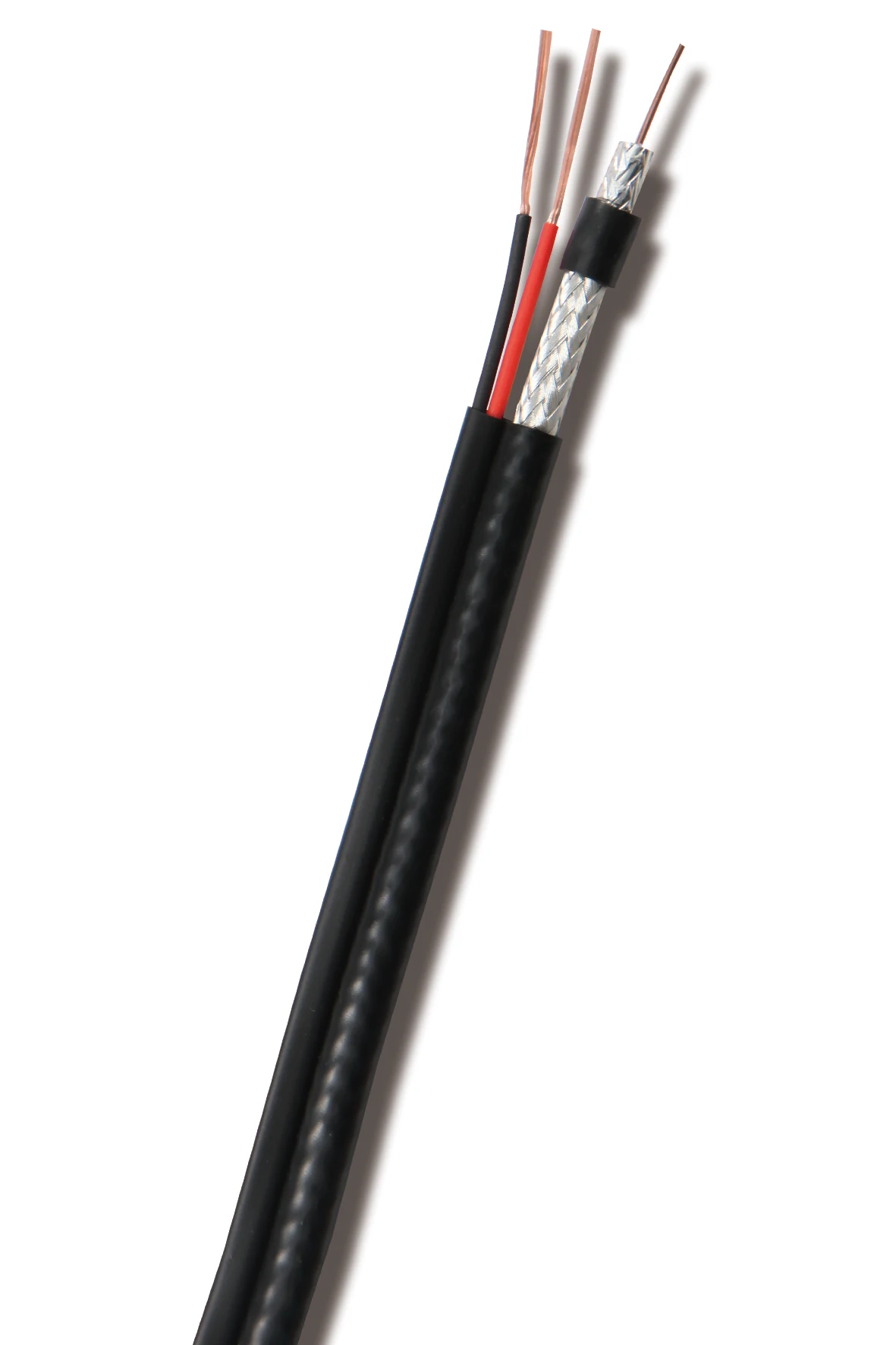

RG6 Siamese cables for CCTV camera cable - ANKUX.COM

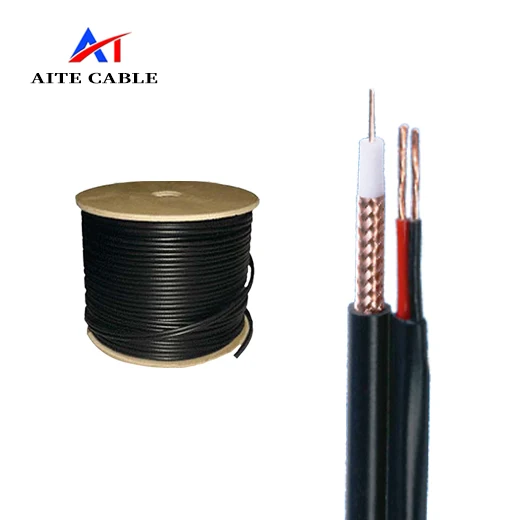

RG6 Siamese cables for CCTV camera cable - ANKUX.COM
