Product Description
SMA RF Cable Male Female Connector for RG58 RG303 RG405 RG223 LMR400
The
SMA RF coaxial connector
is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
RF Cable SMA Male Female Connector for RG58 RG303 RG405 RG223 LMR400 - ANKUX.COM

RF Cable SMA Male Female Connector for RG58 RG303 RG405 RG223 LMR400 - ANKUX.COM

Specification:
Impedance:50Ω
Freqency Range:DC to 18GHz
VSWR:≤1.3
Insulation Resistance:>5000MΩ
Center Contact Resistance:≤3mΩ
Outer Contact Resistance:≤2mΩ
Mating Cycles:>500
Temperature Range:-65-+165
Dielectric:PTFE
Durability:Mating cycles >500
Standard:MIL-C-39012
Detailed Images
SMA RF Cable Connector for Soft Cable
Soft cable type:
Cable
RG142/RG178/LMR200/LMR300/RG223/RG316
SMA connector type:
Male/ female, straight/right angle, 2 /4-hole flange mount
NOTE:
We have over 10,000 types of RF connectors, cable assemblies, adapters,D-sub connectors,.etc, if the connector you are using is not found, please contact us with your details.
List of SMA RF Cable Connector for Soft Cable:

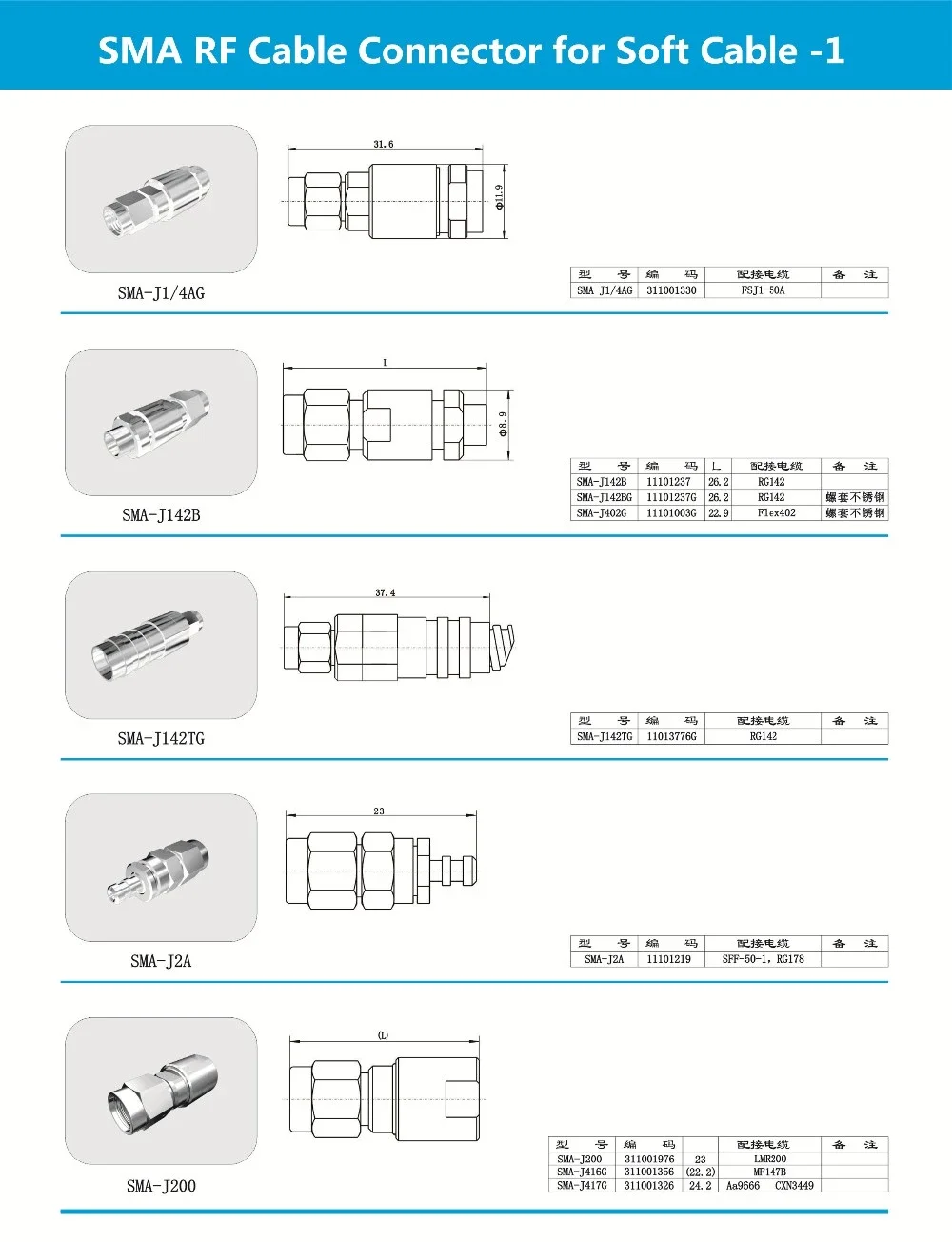

1.SMA-J1/4AG, SMA male connector for FSJ1-50A cable with length 31.6mm
2.SMA-J142B, SMA male connector for RG142 cable with length 26.2mm
3.SMA-J142TG, Stainless steel SMA male SMT connector for RG142 cable
4.SMA-J2A, SMA male connector for RG178 cable with length 23mm
5.SMA-J200, SMA male connector for LMR200 cable with length 23mm

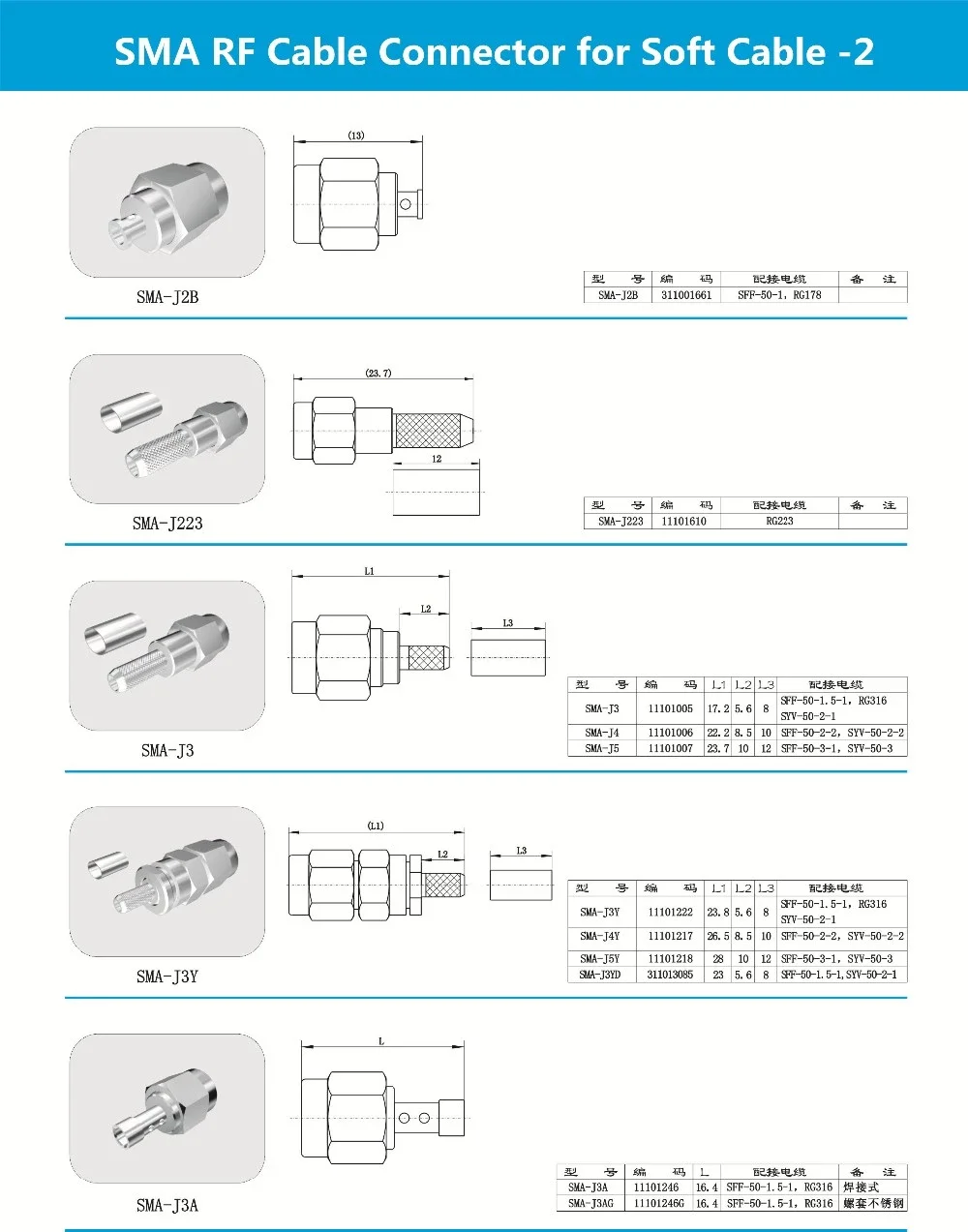

6.SMA-J2B SMA male connector for RG178 cable with length 13mm
7.SMA-J223, SMA male connector for RG223 cable with length 23.7mm
8.SMA-J3, SMA male connector for RG316 cable with length 17.2mm

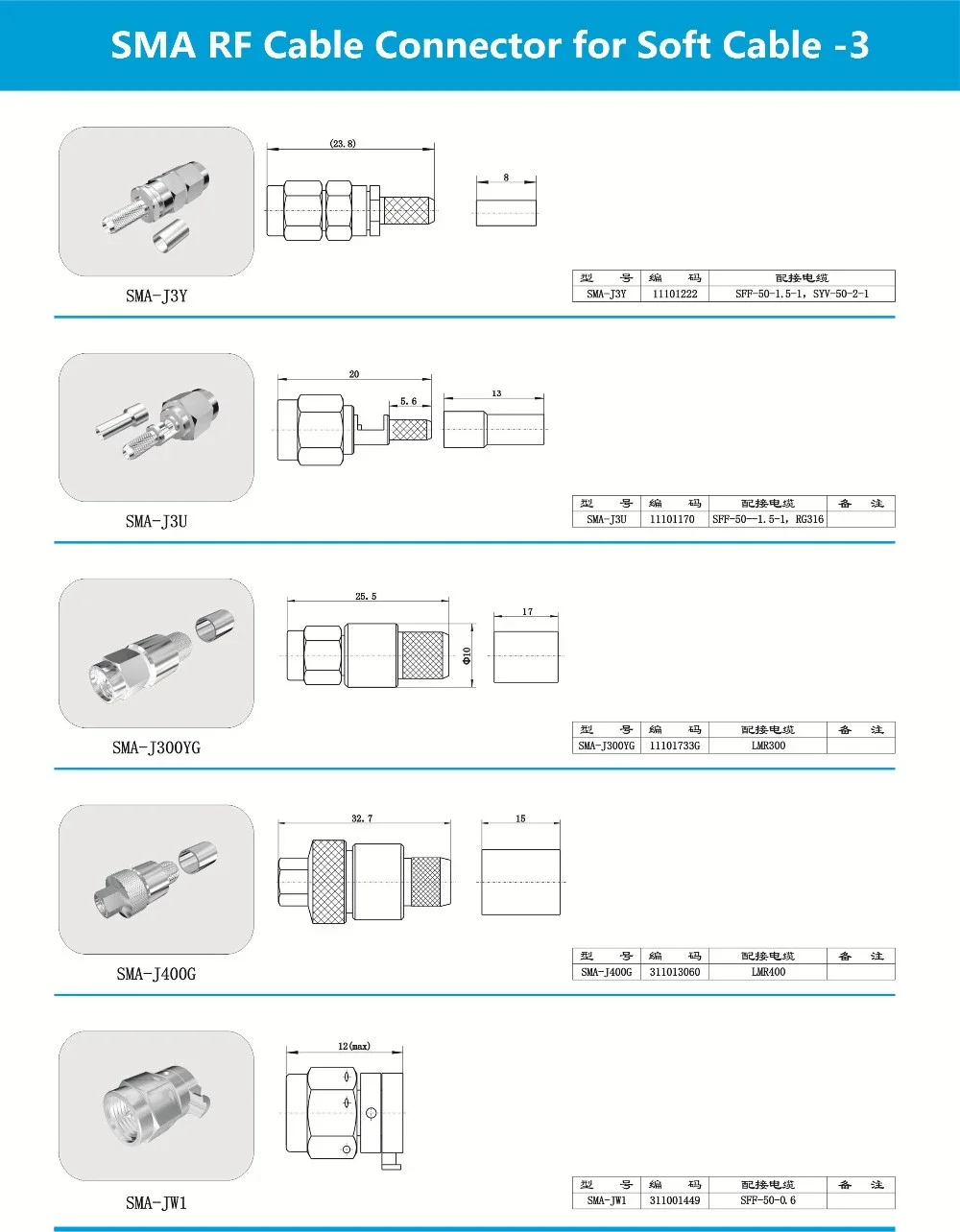

9.SMA-J3Y, SMA male connector for RG316 cable with length 23.8mm
10.SMA-J3A, SMA male solder connector for RG316 cable with length 16.48mm
11.SMA-J3U, SMA male connector for RG316 cable with length 20mm
12.SMA-J300YG, SMA male connector for LMR300 cable with length 25.5mm
13.SMA-J400G, SMA male connector for LMR400 cable with length 32.7mm
14.SMA-J400G, Stainless steel SMA male connector for LMR400 cable with length 32.7mm
15.SMA-JW1, SMA male connector for SFF-50-0.6 cable with length 12mm
