Raynool RG402 RG401 RG405 type RF Coaxial cable Low PIM 086 141 coax CMP Plenum rated FEP cable for Antenna
Cable / Communication Cable
Product Description
Raynool RG402 RG401 RG405 type RF Coaxial cable Low PIM 086 141 coax CMP Plenum rated FEP cable for Antenna - ANKUX.COM
Product Description

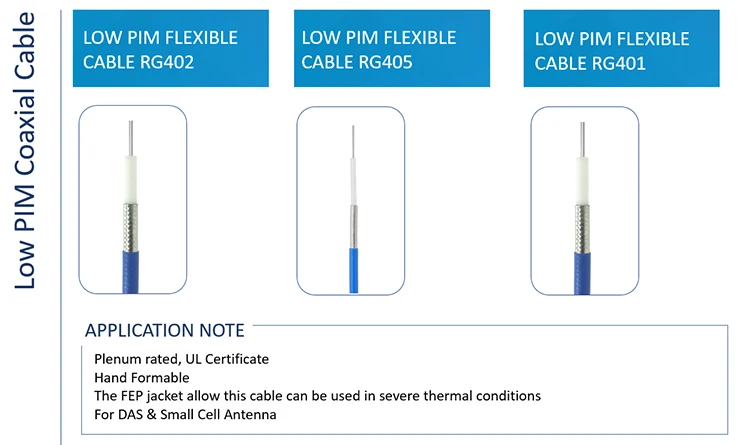

RG402, RG401, RG405 cable assembly
* Tinned soaked cable assembly are available
RG402 Cable Construction
Inner ConductorSilver Plated Copper0.93 mm
InsulationPTFE3.00 mm
Outer ConductorTinned Copper braid3.52 mm
JacketFEP4.32 mm

RG401 Cable Construction
Inner ConductorSilver Plated Copper1.63 mm
InsulationPTFE5.27 mm
Outer ConductorTinned Copper braid6.20 mm
JacketFEP7.00 mm

RG405 Cable Construction
Inner ConductorSilver Plated Copper0.525 mm
InsulationPTFE1.65 mm
Outer ConductorTinned Copper braid2.15 mm
JacketFEP2.65 mm

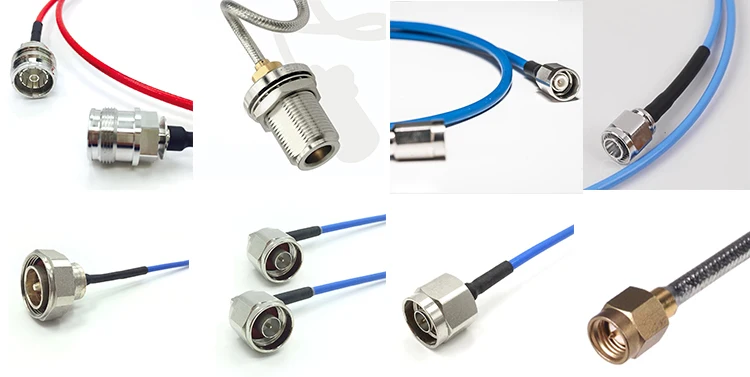

RF Connector type
Low PIM Connector:7/16 DIN / 4.3-10 / N / 2.2-5 / NEX10
QMA / SMA / TNC / SMP
Raynool RG402 RG401 RG405 type RF Coaxial cable Low PIM 086 141 coax CMP Plenum rated FEP cable for Antenna - ANKUX.COM

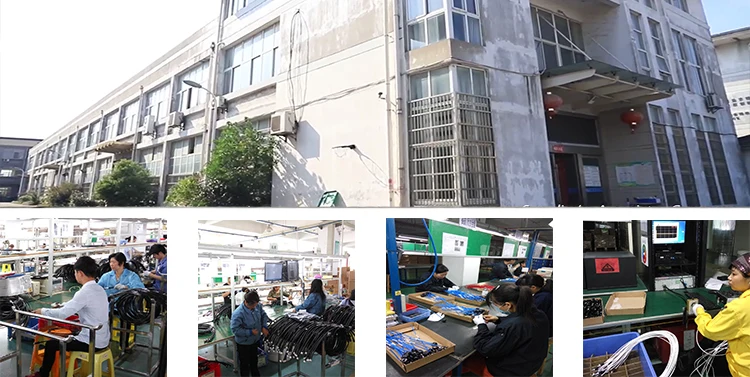

Factory product line
Raynool RG402 RG401 RG405 type RF Coaxial cable Low PIM 086 141 coax CMP Plenum rated FEP cable for Antenna - ANKUX.COM
Raynool Cable Assembly factory product line
Raynool RG402 RG401 RG405 type RF Coaxial cable Low PIM 086 141 coax CMP Plenum rated FEP cable for Antenna - ANKUX.COM
Packaging & Shipping
Customized label
Carton package
