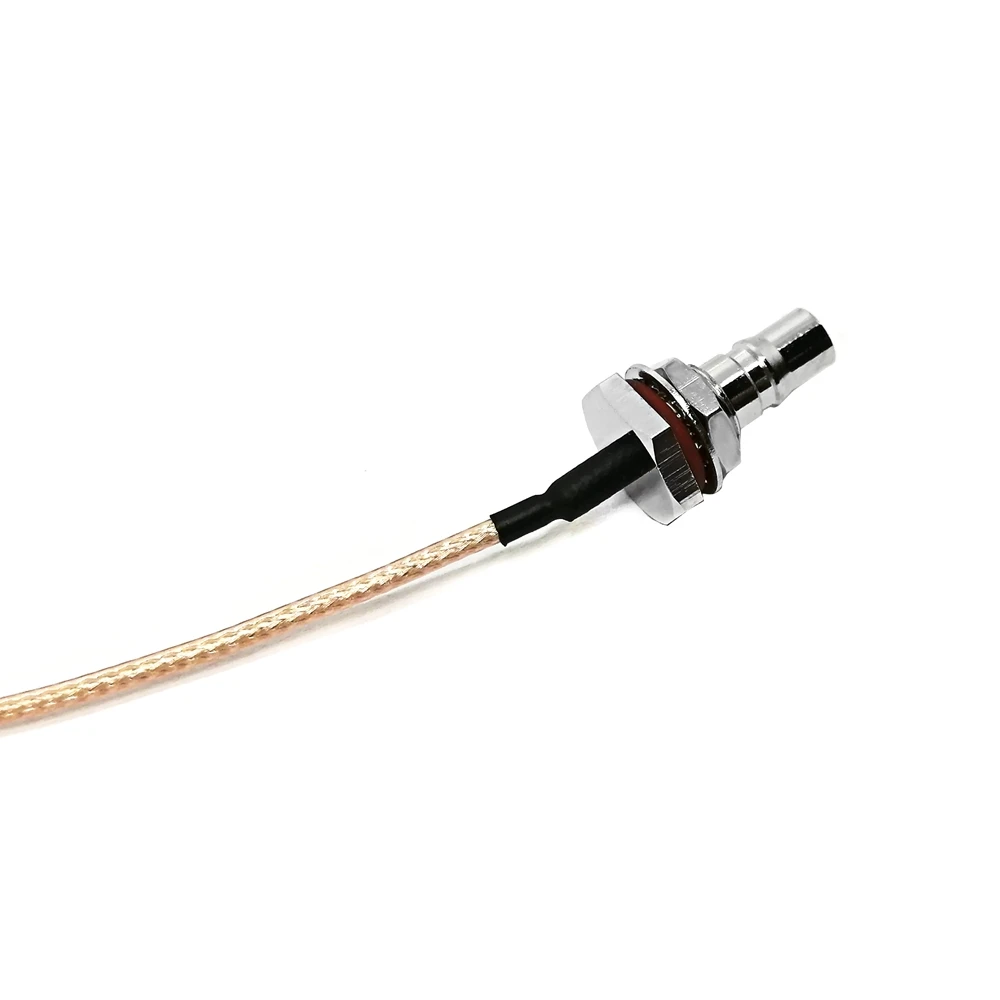

qma female bullhead BH to rp sma male cable rg316 pigtail cable
RF coaxial cable assembly (7/16DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
We are manufactory,Can be customized by customer..
1. All materials are RoHS approved
2.Competitive price
3.OEM service offered
4.We are able to supply various types of connector according to clients" requirement
rg316 pigtail cable

qma to sma cable

QMA rg316

Temperature range
- 55 ~+ 155 °C (PE Cable-40 ~+ 85 °C )
Vibration
98 m/s2 (10~ 20 00Hz) ,10g
Impedance
50 OHM
Frequency Range
DC – 6 GHz
Working Voltage
335Vr.m.s at sea level
Contact resistance
CenterContact ≤3m Ω
OuterContact ≤ 2.5 m Ω
Insulation resistance
>5000 M Ω
VSWR
Straight flex cable ≤ 1.10 +0.02f
Semi-rigid cable ≤ 1. 07+0.018f
R ight angle flex cable ≤ 1 .2 0 +0.03f
Semi-rigid cable ≤ 1. 17+0.02f
Durability (mating)
>500 (cycles)
Material & Plating
Body
Brass
Nickel plated / Alloy plated
Inner Pin
Brass
Gold plated
Resilient Contact
Beryllium Copper
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel / Gold plated
O-ring sealing
Silicone Rubber
