Price 25mm 180mm Aluminum Cable PVC XLPE Insulated Single Core Copper Cable
Insulated wires generally consist of a conductive core, an insulating layer, and a protective layer. The core can be divided into four types: hard, soft, mobile and extra soft. There are four types of cores: single core, two core, three core and four core. The insulating layer is generally made of rubber, plastic, and the like. It is widely used in various instruments, telecommunications equipment, power lines and lighting lines with AC voltage below 500V and DC voltage below 1,000V.

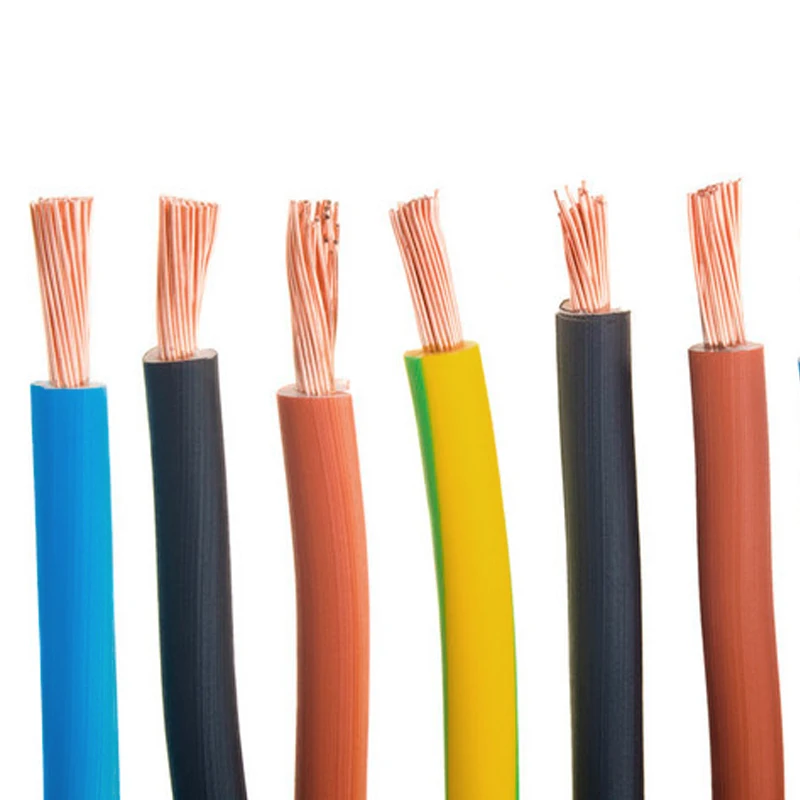

Single Core Electric Wire Construction
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70C
3.Color Code: red, orange, yellow, yellow-green, blue, purple, gray, white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.5.Rated voltage: 300/300V ; 300/500V ;450/750V
6.Long-term working temperature: not be higher than 70C
7.When laying the cable, the ambient temperature should not lower than 0C
8.Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter >
25mm.

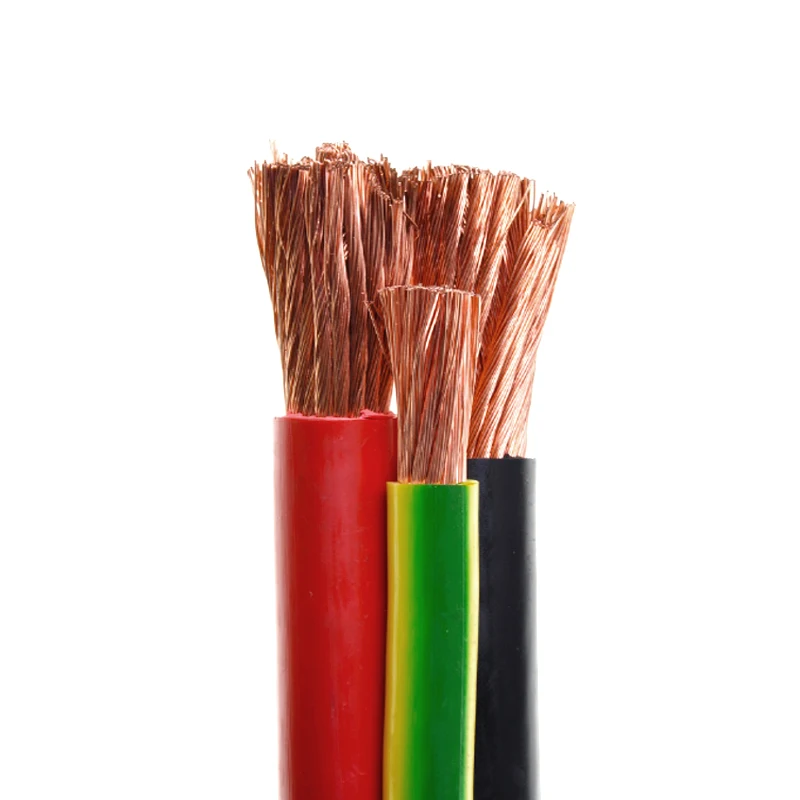

Conditions of use for Rubber flexible cables
1.Standard: ISO9001:2000. CCC certificates, CE certified2.Specification: solid or stranded copper conductor. PVC insulated and PVC and sheathde wire.3.Conductor: bare copper, IEC class 5 , flexible type
4.Insulation: PVC Rubber XLPE
5.Ated Voltage Uo / U: 300/500V, 450/750V
6.Working temperature: -40C to + 70 C
7.Various colors are available
8.Application: cables for energy supply suitable for use in lighting system, mechanical system. Suitable for surface wiring, indoor or outdoor.




Product Model
Part of the production range of insulated wires
Nominal sectional area mm2
Conductor No/Dia. Mm
Nominal Insulated thick mm
Max overall Dia. Mm
Condcutor Resistance at 20
Min insulated resistance at 70MΩ/km
Weight
Kg/km
Cu
Al
Cu
Al
1.5
1/1.38
0.7
3.3
12.1
-
0.011
19.2
-
1.5
7/0.52
0.7
3.5
12.1
-
0.01
20.6
-
2.5
1/1.78
0.8
3.9
7.41
11.8
0.01
30.8
15
4
1/2.25
0.8
4.4
4.61
7.39
0.0085
45.5
21
6
1/2.76
0.8
4.9
3.08
4.91
0.007
65
29
10
7/1.35
1
7
1.83
3.08
0.0065
110
52
16
7/1.70
1
8
1.15
1.91
0.005
170
70
25
7/2.14
1.2
10
0.727
1.2
0.005
270
110
35
7/2.52
1.2
11.5
0.524
0.868
0.004
364
150
50
19/1.78
1.4
13
0.387
0.641
0.0045
500
200
70
19/2.14
1.4
15
0.268
0.443
0.0035
688
269
95
19/2.52
1.6
17.5
0.193
0.32
0.0035
953
360
120
37/2.03
1.6
19
0.153
0.253
0.0032
1168
449
150
37/2.25
1.8
21
0.124
0.206
0.0032
1466
551
185
37/2.52
2
32.5
0.099
0.164
0.0032
1808
668

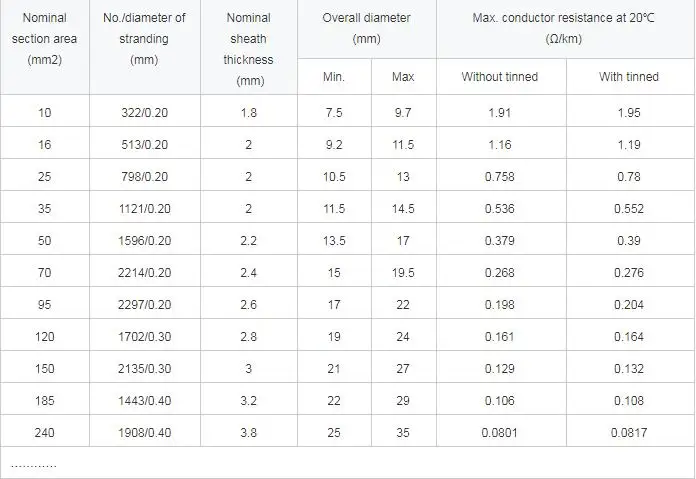

Part of the production range of rubber welding cables

NoticeIn addition, we have other models and sizes, please contact us if you need, thank you.
