Products Description

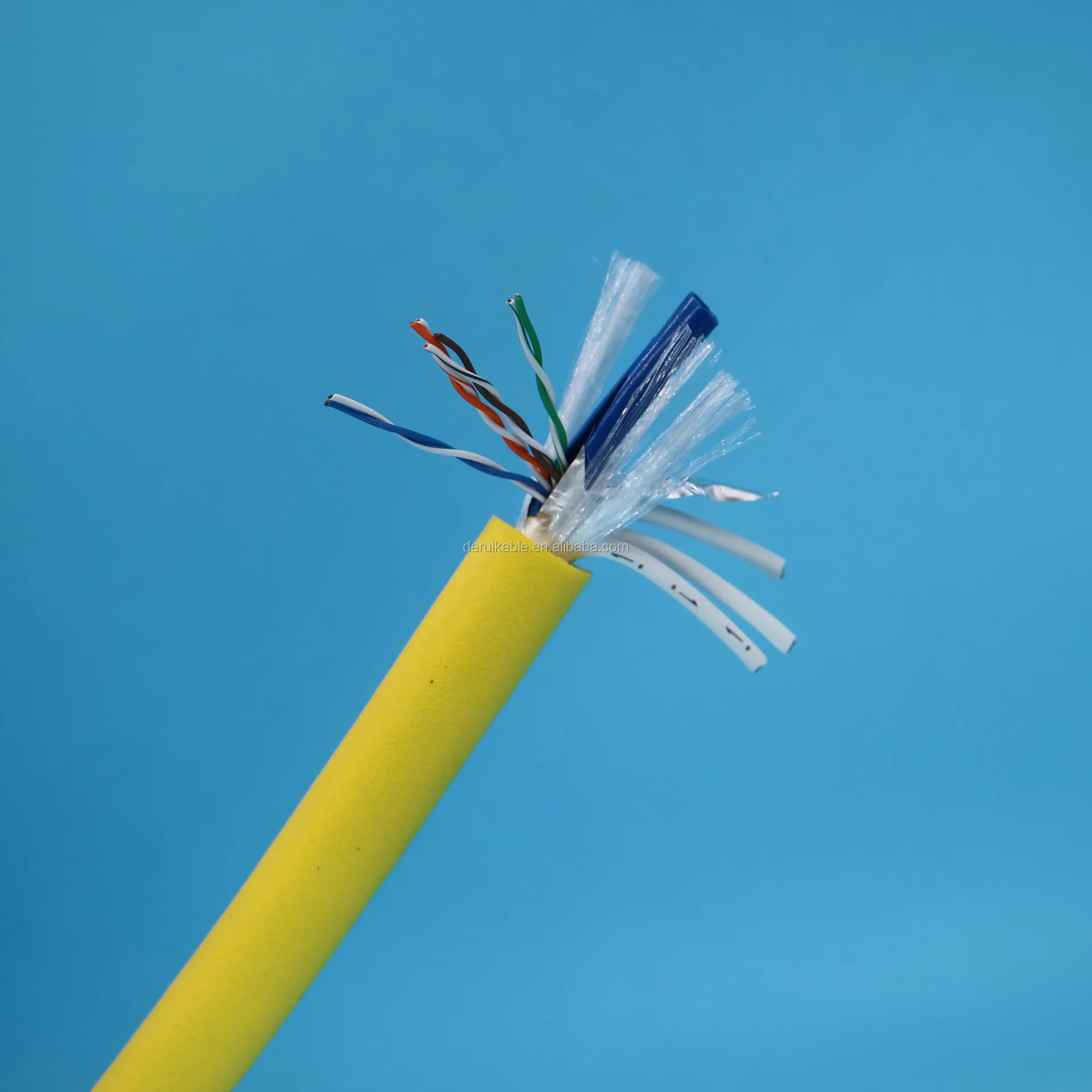

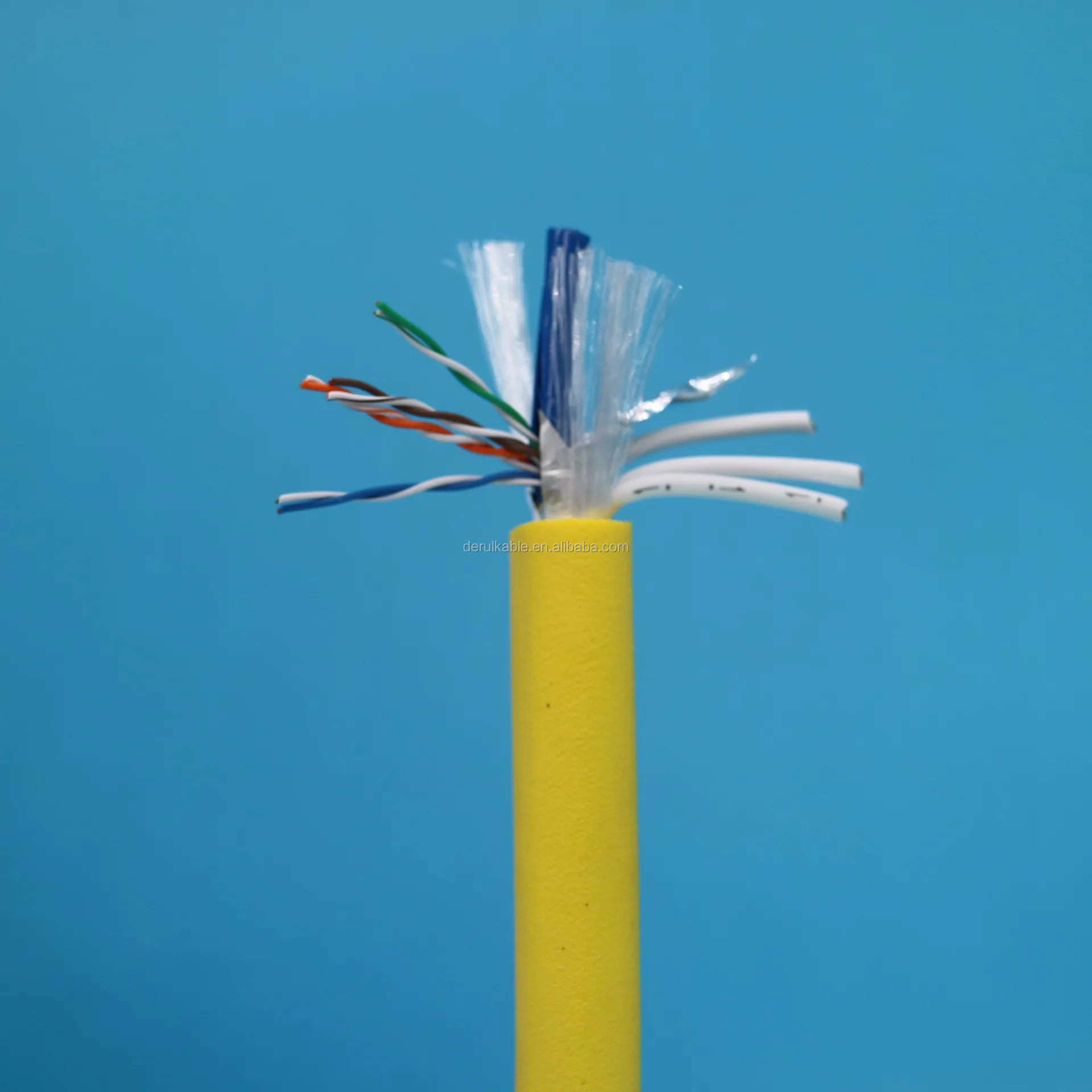

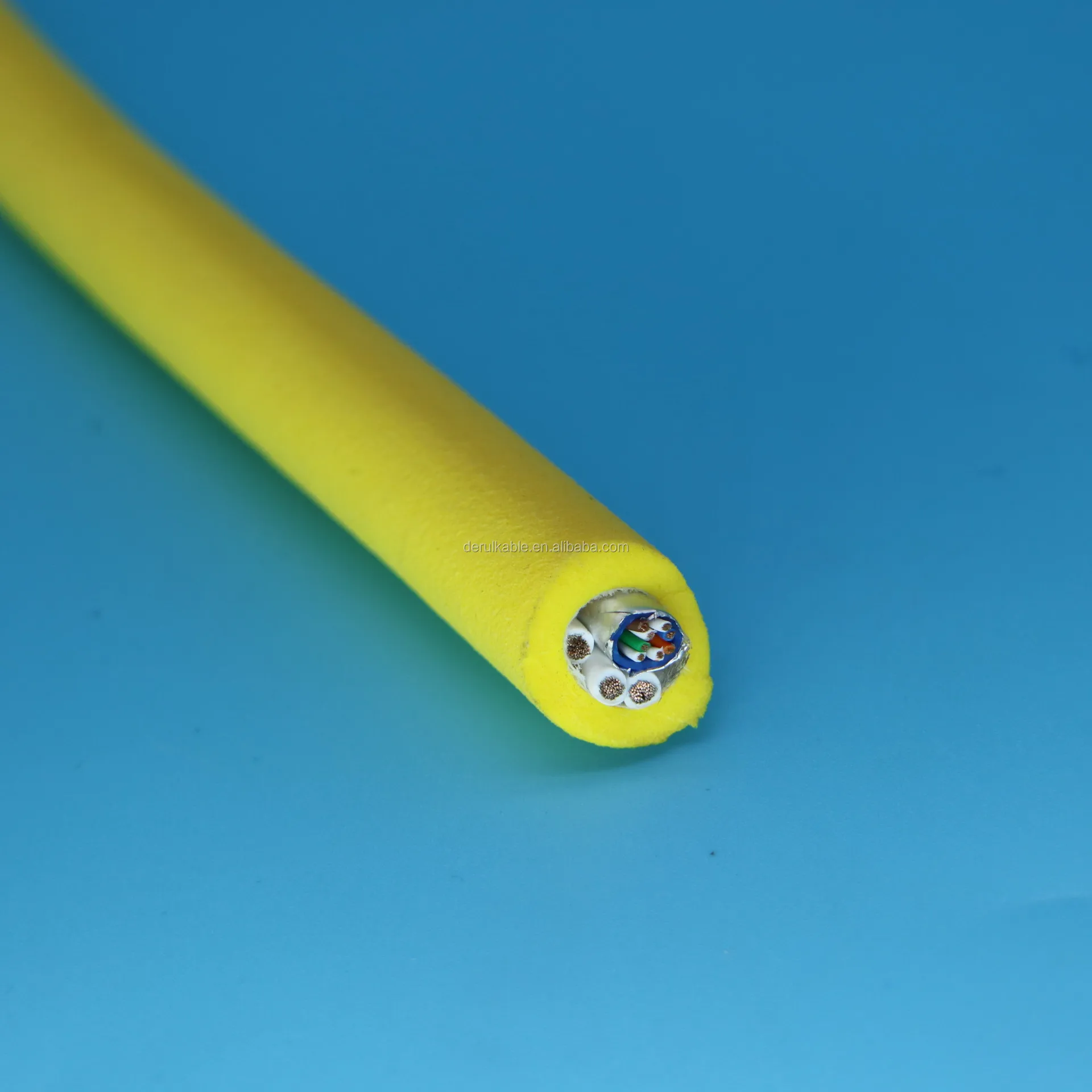

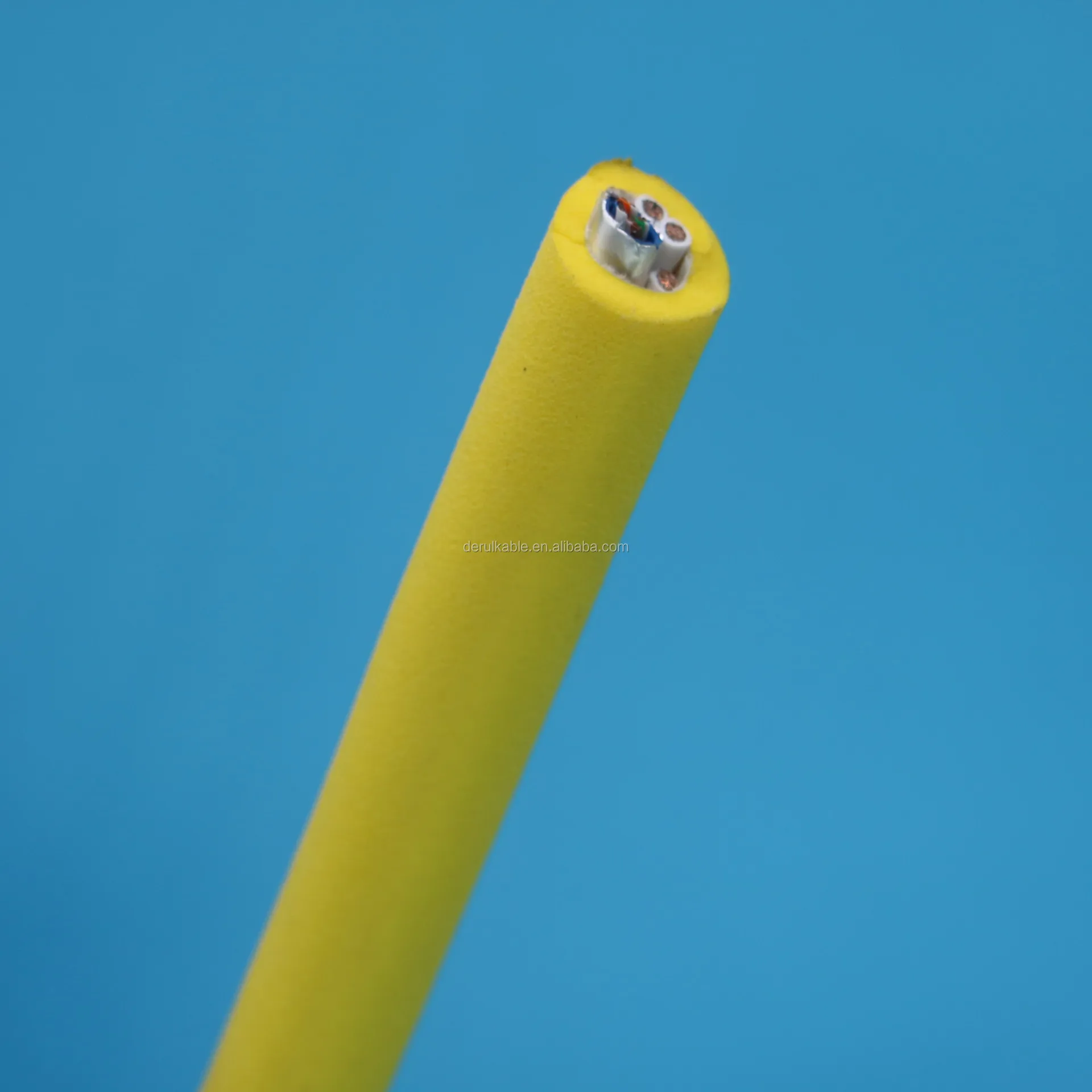

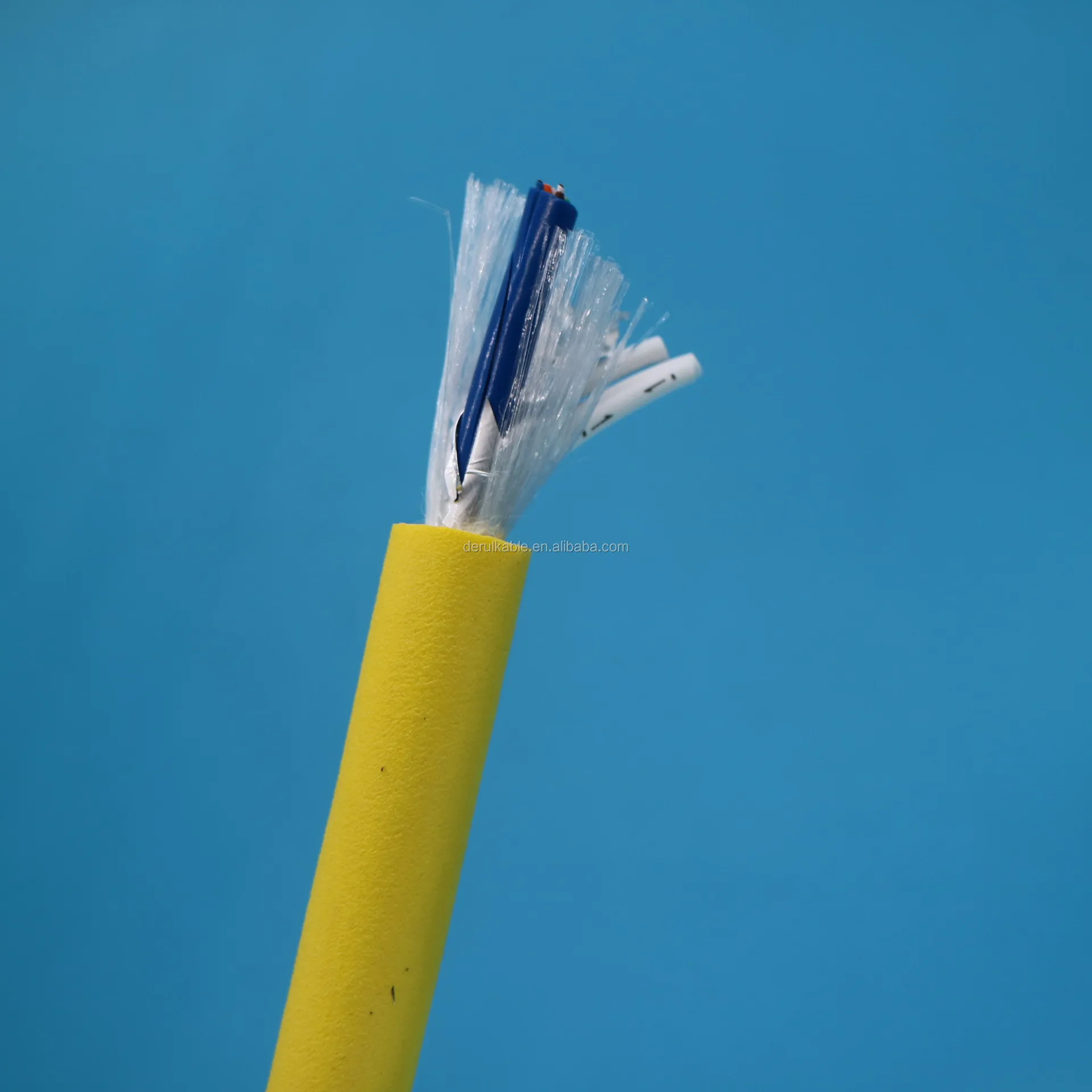

| Product Name | Zero buoyancy rov cable cat6 underwater rov tether |
| Article Type | DERUL-A1214 rov tether/pipe crawler cable/robot cable/drag chain cable |
| Constructure | Conductor+insulator+sheath+shield |
| Conductor | Copper |
| Insulation | PE/PVC/Rubber |
| Shielding | Braided tinned copper/Aluminum foil |
| Voltage | 300-1000V |

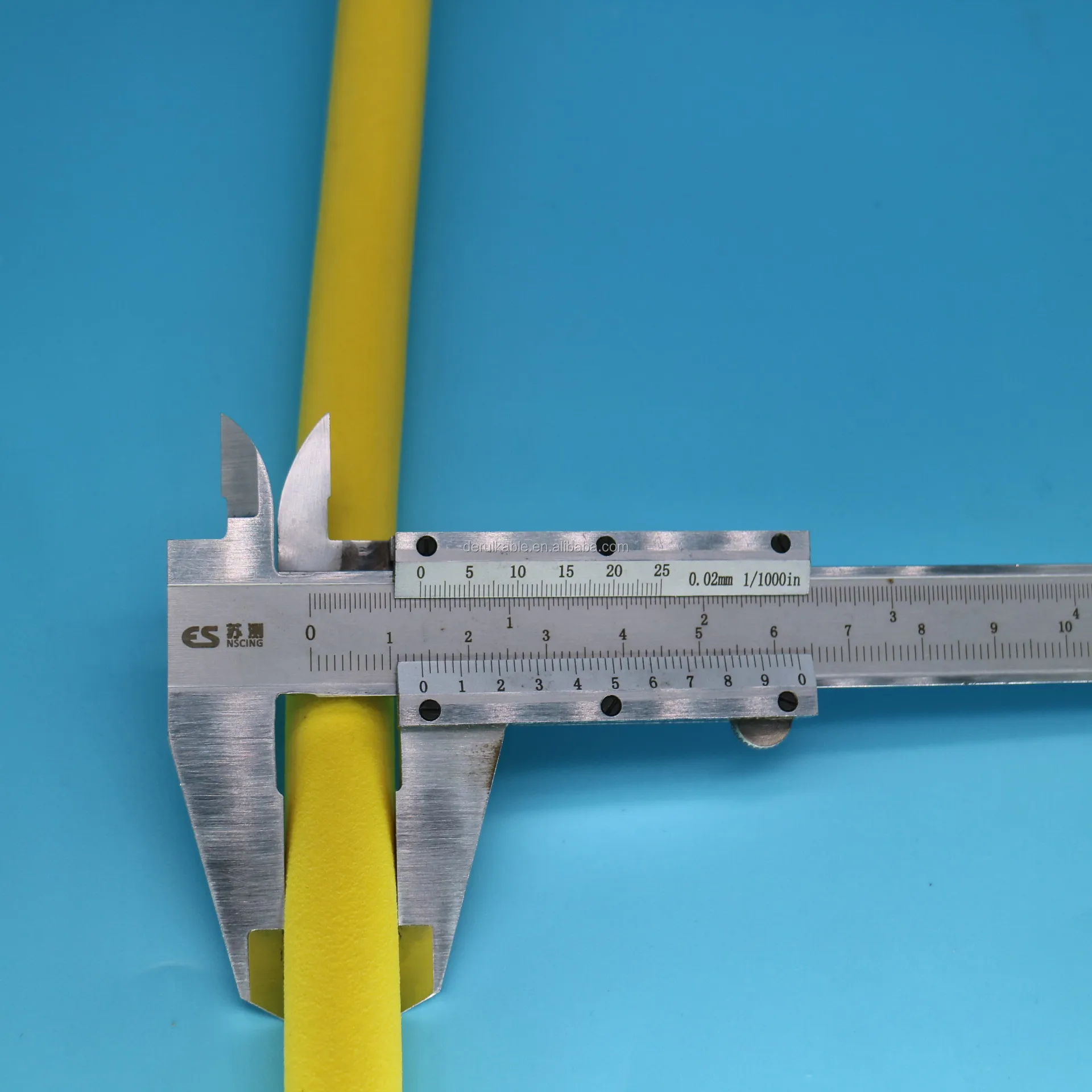

| Diameter | Customized |
| Sheath Color | Customized |
| Applications | ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
| MOQ | 300-500 meters |
| Sample term | Free sample on stock with freight collect |
| Product lead time | 10-15 working days after payment received |
| Shipping lead time | 5-10 working days by DHL/FEDEX/TNT/UPS... |
| Payment term | T/T, Paypal, full payment before shipped. Negotiable. |
Application
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270and
bending cycle is 3 million times.
Construction
Conductor:Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge:28AWG to 4AWG
Insulation:PE
Shielding:Tinned copper braiding
Core color:TBD acc. to DIN 47100 standard.
Outer sheath:low adhesive PUR (polyurethane)
Sheath color:TBD
Technical data
Rated voltage:300/500V (Acc. to DIN VDE 0245)
Testing volatge:2000V (Acc. to DIN VDE 0281-2)
Temperature range:-25 till +80
Operating temperature:-25 till +80
Bending radius:Fixed installation 4xOD, In motion 10xOD
Movable speed:180/S
Oil resistance:Yes (Acc. to DIN EN 50363-10-2)
