The WQ8-MDO100-XXXXC is a Four - Channel, Pluggable , Parallel, Fiber - Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications .This AOC is a high performance module for short- range multi - lane data communication and interconnect applications. It integrates four data lanes in each direction with 100Gbps bandwidth . Each lane can operate at 25.78125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates Wiitek proven circuit and VCSEL technology to provide reliable long-life, high performance , and consistent service .
Features
4 channels full- duplex transceiver modules
Supports 100Gbps total data rate
4 channels 850 nm VCSEL array
4 channels PIN photo detector array
Low power consumption < 3.5W
Hot Pluggable QSFP form factor
Maximum link length of 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Single MPO connector receptacle
Built- in digital diagnostic functions
Operating case temperature 0C to +70C
3.3V power supply voltage
RoHS 6 compliant
Applications
IEEE 8 02 . 3bm 100 G BASE SR4
Infiniband EDR
Data Centers
Mechanical Dimensions

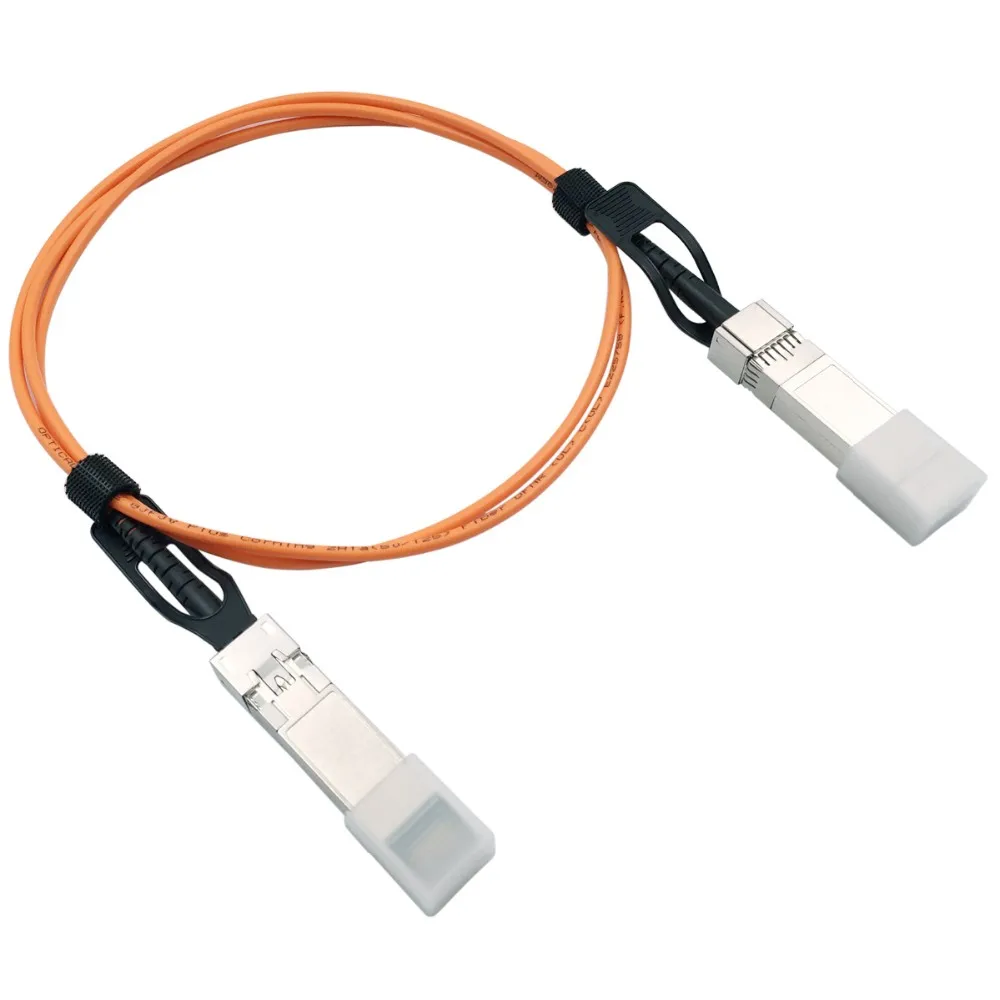

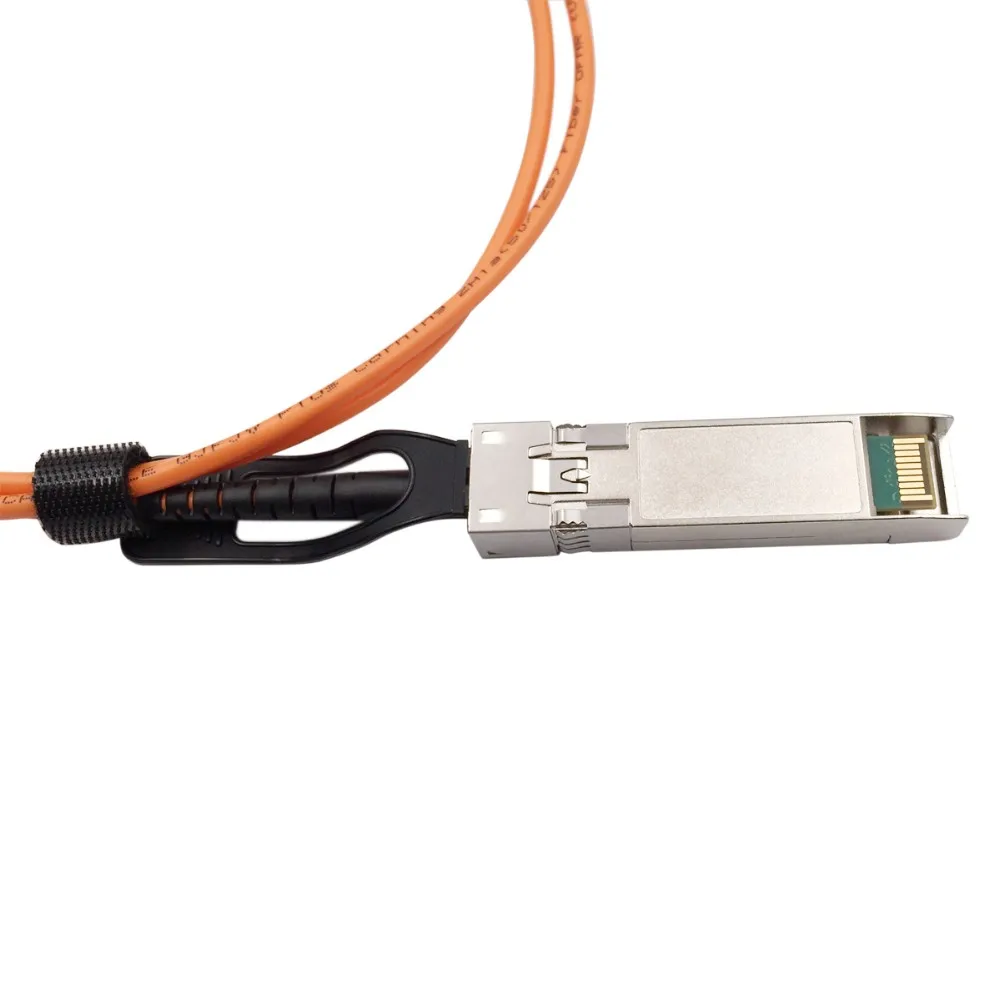

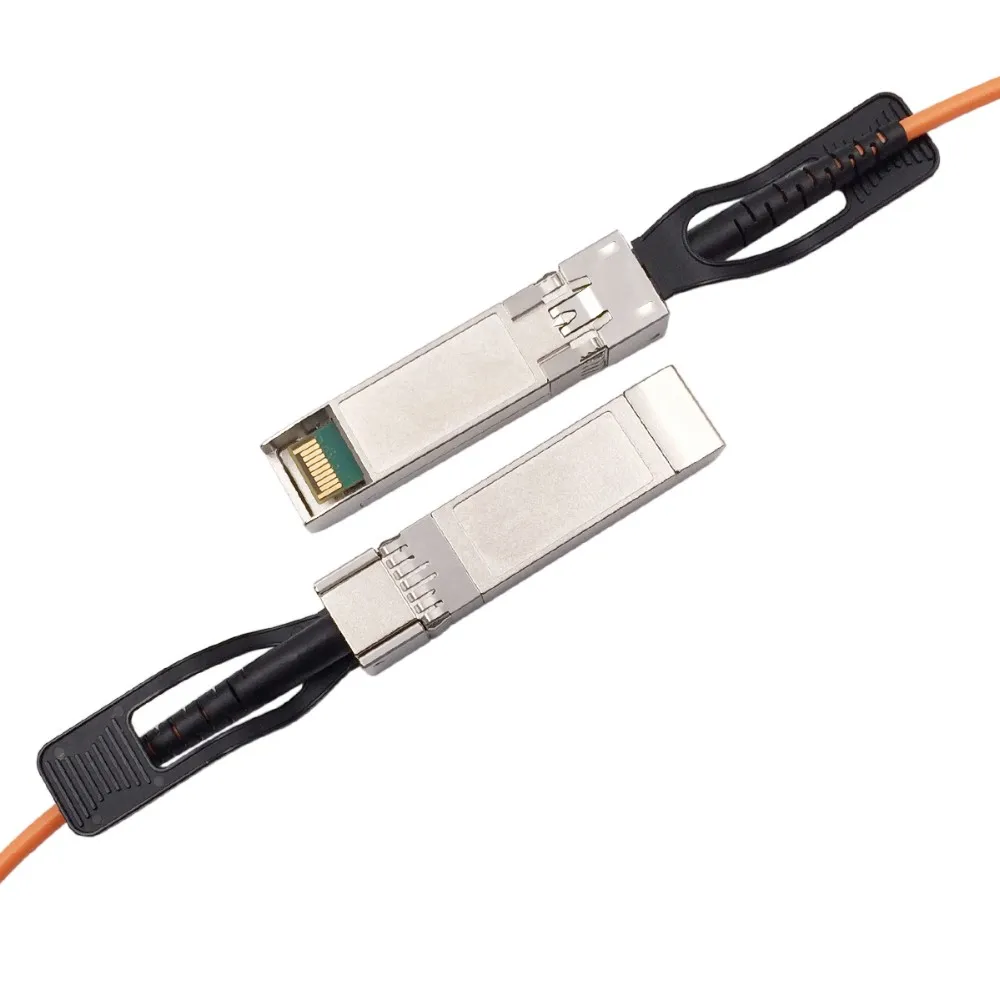

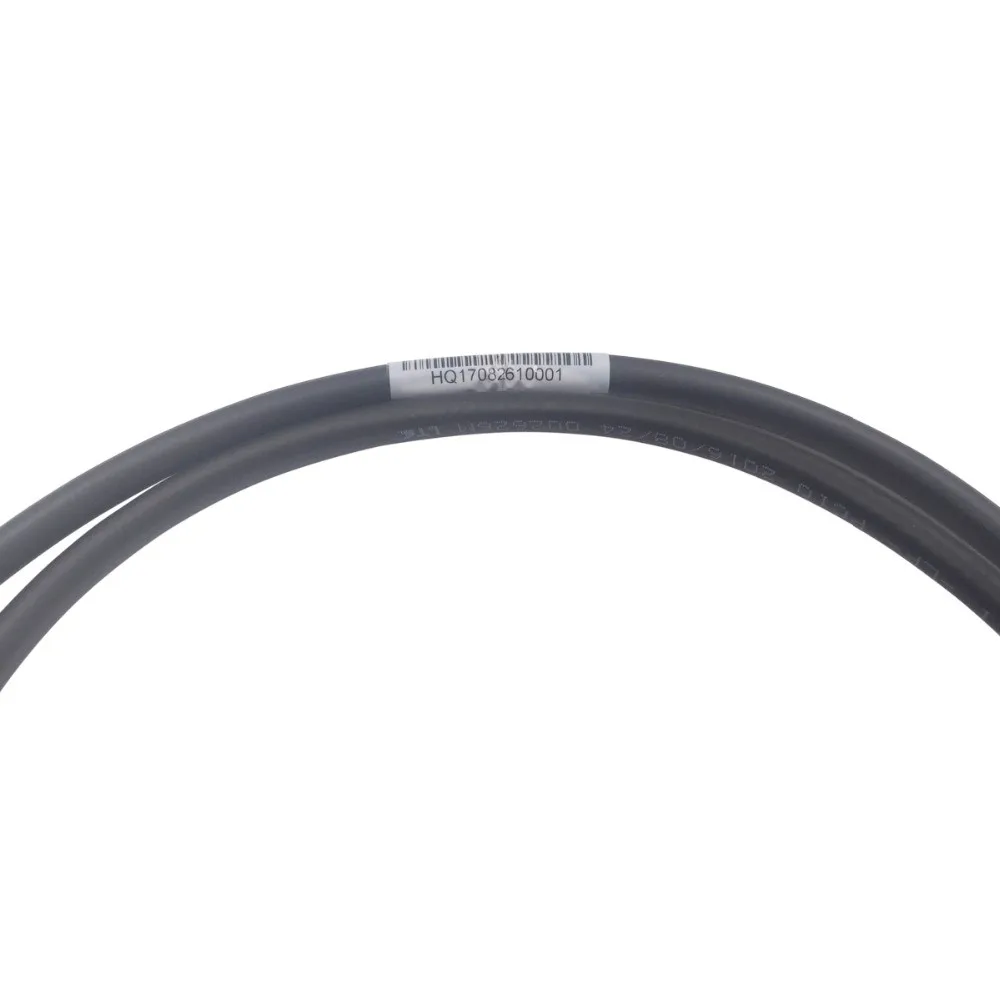

Detailed Images




Packing & Delivery
