Low voltage yjlv avvg 1kv 4x240 mn 3x240 mm 3x185mm vvg avvg cable

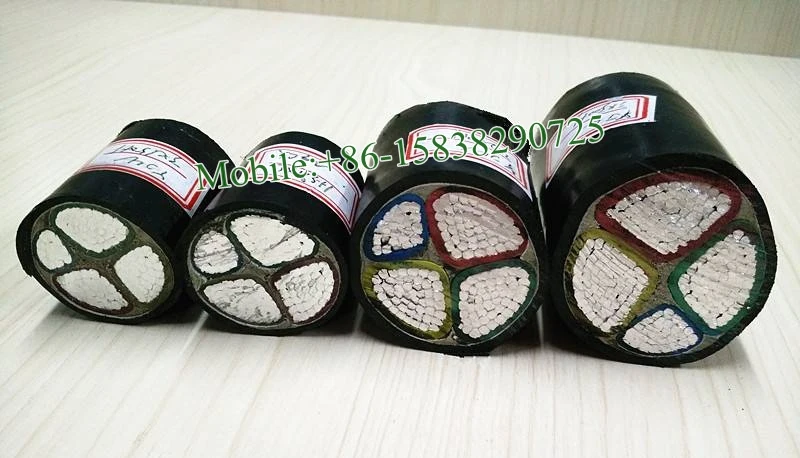

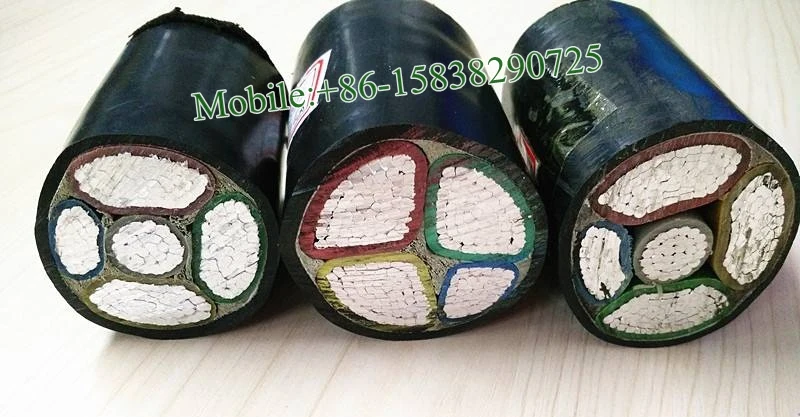

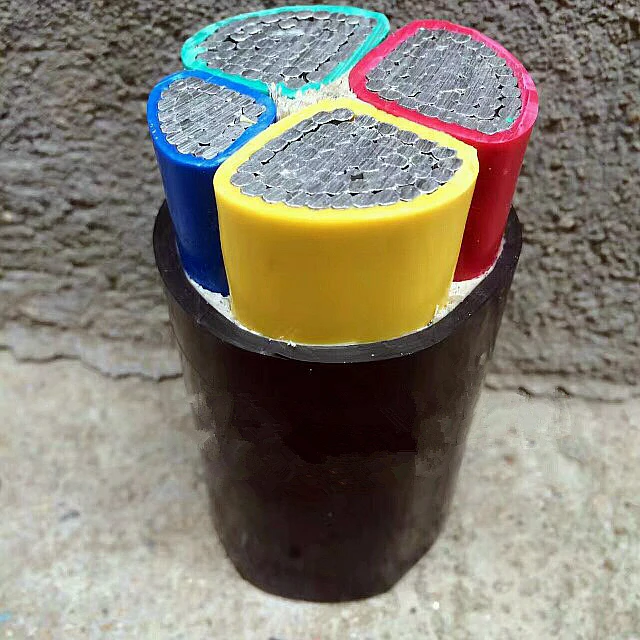

AVVG cable DescriptionCONSTRUCTIONCable construction AVVG - 1kV
1. Conducting aluminum conductor corresponding to class 1 or 2 according to GOST 22483-2012:
- single-wire round 1.5 ... 50 mm2;
- single-wire sector 25 ... 50 mm2;
- stranded round 16 ... 50 mm2;
- multiwire round 70 ... 240 mm2 for single- and two-core cables;
- or multi-wire sector 25 ... 240 mm2.
2. Insulation of PVC conductors of low fire hazard of nominal
0.8 ... 1.9 mm thick.
3. Filling of low-risk internal PVC plastic compound
and outer gaps between twisted insulated conductors
stranded cables with round conductors.
4. Polypropylene fastening tape, spirally applied to twisted strands
cables with sector veins.
5. PVC sheath of reduced fire hazard corresponding to
Obp-2 category according to GOST 23286-78, nominal thickness 1.2 ... 2.5 mm.

Cable decoding AVVG - 1kV
_AVVG - 1kV
aluminum conductor
low flammability PVC insulation
low flammability PVC sheath
no protective cover ("bare")
reduced smoke and gas emission (low smoke)
rated voltage 1 kV
Technical characteristics of cable AVVG - 1kV
Rated alternating voltage: 1 kV with frequency 50 Hz
Nominal DC voltage: 1.4 kV for single-core cables
Test voltage of 3.5 kV, frequency 50 Hz
Test voltage of 8.4 kV for single-core cables
The exposure time during the test 10 min
Insulation resistance at 20 °C not less than 7 ... 12 MΩ - km
Construction length not less than 200 ... 450 m
Small meters in a batch of not more than 10 ... 20% of pieces from 50 m
Allowable heating temperature lived 70 °C
The maximum heating temperature of the cores is 80 °C during overload, 160 °C at short circuit current
Minimum bending radius: 7.5 outer diameters for stranded cables
10 outer diameters for single core cables
Operating temperature range -30 ... + 50 °C
Service life not less than 30 years from the date of production
Construction is possible on request.
Product parameters
AVVG 1x1,5 - 1kV AVVG 1x2,5 - 1kV AVVG 1x4,0 - 1kV AVVG 1x6,0 - 1kV AVVG 1x10 - 1kV
AVVG 1x16 - 1kV AVVG 1x25 - 1kV AVVG 1x35 - 1kV AVVG 1x50 - 1kV AVVG 1x70 - 1kV
AVVG 1x95 - 1kV AVVG 1x120 - 1kV AVVG 1x150 - 1kV AVVG 1x185 - 1kV AVVG 1x240 - 1kV
AVVG 2x1,5 - 1kV AVVG 2x1,5+1x1,0 - 1kV AVVG 2x1,5+1x1,5 - 1kV AVVG 2x2,5 - 1kV AVVG 2x2,5+1x1,5 - 1kV
AVVG 2x4,0 - 1kV AVVG 2x4,0+1x2,5 - 1kV AVVG 2x6,0 - 1kV AVVG 2x6,0+1x2,5 - 1kV AVVG 2x6,0+1x4,0 - 1kV
AVVG 2x10 - 1kV AVVG 2x10+1x4,0 - 1kV AVVG 2x10+1x6,0 - 1kV AVVG 2x16 - 1kV AVVG 2x16+1x6,0 - 1kV
AVVG 2x16+1x10 - 1kV AVVG 2x25 - 1kV AVVG 2x25+1x10 - 1kV AVVG 2x25+1x16 - 1kV AVVG 2x35 - 1kV
AVVG 2x35+1x16 - 1kV AVVG 2x50 - 1kV AVVG 2x50+1x16 - 1kV AVVG 2x50+1x25 - 1kV AVVG 2x70 - 1kV *
AVVG 2x70+1x25 - 1kV AVVG 2x70+1x35 - 1kV AVVG 2x95 - 1kV * AVVG 2x95+1x35 - 1kV AVVG 2x95+1x50 - 1kV
AVVG 2x120 - 1kV * AVVG 2x120+1x35 - 1kV AVVG 2x120+1x70 - 1kV AVVG 2x150 - 1kV * AVVG 2x150+1x50 - 1kV
AVVG 2x150+1x70 - 1kV AVVG 2x185 - 1kV * AVVG 2x185+1x50 - 1kV AVVG 2x185+1x95 - 1kV AVVG 2x240 - 1kV *
AVVG 2x240+1x70 - 1kV AVVG 2x240+1x120 - 1kV AVVG 3x1,5 - 1kV AVVG 3x1,5+1x1,0 - 1kV AVVG 3x1,5+1x1,5 - 1kV
AVVG 3x2,5 - 1kV AVVG 3x2,5+1x1,5 - 1kV AVVG 3x4,0 - 1kV AVVG 3x4,0+1x2,5 - 1kV AVVG 3x6,0 - 1kV
AVVG 3x6,0+1x2,5 - 1kV AVVG 3x6,0+1x4,0 - 1kV AVVG 3x10 - 1kV AVVG 3x10+1x4,0 - 1kV AVVG 3x10+1x6,0 - 1kV
AVVG 3x16 - 1kV AVVG 3x16+1x6,0 - 1kV AVVG 3x16+1x10 - 1kV AVVG 3x25 - 1kV AVVG 3x25+1x10 - 1kV
AVVG 3x25+1x16 - 1kV AVVG 3x35 - 1kV AVVG 3x35+1x16 - 1kV AVVG 3x50 - 1kV AVVG 3x50+1x16 - 1kV
AVVG 3x50+1x25 - 1kV AVVG 3x70 - 1kV AVVG 3x70+1x25 - 1kV AVVG 3x70+1x35 - 1kV AVVG 3x95 - 1kV
AVVG 3x95+1x35 - 1kV AVVG 3x95+1x50 - 1kV AVVG 3x120 - 1kV AVVG 3x120+1x35 - 1kV AVVG 3x120+1x70 - 1kV
AVVG 3x150 - 1kV AVVG 3x150+1x50 - 1kV AVVG 3x150+1x70 - 1kV AVVG 3x185 - 1kV AVVG 3x185+1x50 - 1kV
AVVG 3x185+1x95 - 1kV AVVG 3x240 - 1kV AVVG 3x240+1x70 - 1kV AVVG 3x240+1x120 - 1kV AVVG 4x1,5 - 1kV
AVVG 4x1,5+1x1,0 - 1kV AVVG 4x1,5+1x1,5 - 1kV AVVG 4x2,5 - 1kV AVVG 4x2,5+1x1,5 - 1kV AVVG 4x4,0 - 1kV
AVVG 4x4,0+1x2,5 - 1kV AVVG 4x6,0 - 1kV AVVG 4x6,0+1x2,5 - 1kV AVVG 4x6,0+1x4,0 - 1kV AVVG 4x10 - 1kV
AVVG 4x10+1x4,0 - 1kV AVVG 4x10+1x6,0 - 1kV AVVG 4x16 - 1kV AVVG 4x16+1x6,0 - 1kV AVVG 4x16+1x10 - 1kV
AVVG 4x25 - 1kV AVVG 4x25+1x10 - 1kV AVVG 4x25+1x16 - 1kV AVVG 4x35 - 1kV AVVG 4x50 - 1kV
AVVG 4x70 - 1kV AVVG 4x95 - 1kV AVVG 4x120 - 1kV AVVG 4x150 - 1kV AVVG 4x185 - 1kV
AVVG 4x240 - 1kV AVVG 5x1,5 - 1kV AVVG 5x2,5 - 1kV AVVG 5x4,0 - 1kV AVVG 5x6,0 - 1kV
AVVG 5x10 - 1kV AVVG 5x16 - 1kV AVVG 5x25 - 1kV AVVG 5x35 - 1kV AVVG 5x50 - 1kV
AVVG 5x70 - 1kV AVVG 5x95 - 1kV AVVG 5x120 - 1kV AVVG 5x150 - 1kV AVVG 5x185 - 1kV
AVVG 5x240 - 1kV
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
MARKINGAVVG factory S.Y + N (x or G) S mm²
N = number of coresS = section in mm²x = without Green-YellowG = with Green-Yellow




Packaging & Shipping
Packing & Delivery

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
