30*2.5 mm2 EPR Rubber Insulated and NBR-rubber Sheathed Control Cable /Kvv
It is used as the control cable in the controlling, monitoring and protecting circuit with rated AC voltage up to 450/750V.
PVC insulated and sheathed control cable is general type, we can also manufacture the products suitable for using in the different sites according to the customer"s needs. Silicon rubber insulated control cable has excellent properties of resistant to high temperature, aging, oil and radiation and is flexible. Fluoroplastic insulated and sheathed control cable adopts F46 or PFA, has the properties of wide use, water-proof, resistance to oil, acid, alkali and wearing and all kinds of chemical gent(except the chloroform),hard to cause burning etc. It is widely used as the transmitting wire for the instruments, apparatus and control system in the chemical, petroleum, power, metallurgical industry under the higher or lower temperature and all kinds of severe conditions.
1.Product Standard
This product is manufactured according to GB/9300,IEC60502.
2.Implemented standard
Plastics insulated and sheathed control cable, implement China National standard GB9930.
Rubber insulated and sheathed control cable implements the enterprise standard.
Fluoroplastic insulated and sheathed control cable implements the enterprise standard.
Plastics insulated and sheathed control cable, implement IEC60502-1:2004.
3.Application characteristics
1) Rated AC voltage: U0/U450/750V
2) Permitted long-term operating temperature of conductor:
Description
Long-term operating temperature
PVC insulation and sheath
70 , 105
PE insulating and sheath
70
Low-smoke and halogen-free, flame-retardant polyolefin insulation and sheath
70,90,125
Cross-linked PE or EPR insulation
90
F46 and silicon rubber insulation and sheath
200
3) The lowest environment temperature:
Description
Fixed laying
Non-fixed
PVC insulation and sheath
-40
-15
F46 and silicon rubber insulation and sheath
-60
-20
4) Installation and laying temperature:
PVC sheath-not lower than 0;
Fluoroplastic sheath--- not lower than -25
5)Permitted minimum bending radius: not less than 6times outer diameter for non-armored, interlocked or braid armored cable not less than 12 times outer diameter for copper-tape shield or steel wire tape winding, steel tape wrapping armored cable, and not less than 8 times outer diameter for fluoroplastic insulated and sheathed cable.
4.Basic type,name and main application
PVC,XLPE insulated control cable
Type
Model Name
Application
KVV
(KYJV)
Copper-core PVC(XLPE)insulated PVC sheathed control cable
Laid in fixed positions such as indoor, in cable channel and pipe, etc.

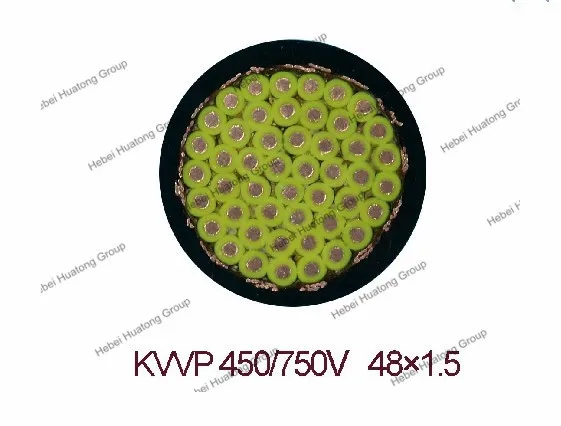

KVVP
(KYJVP)
Copper-core PVC (XLPE)insulated PVC sheathed braid shielded control cable
Laid in fixed positions such as indoor, in cable channel and pipe, etc.
KVVP2
(KYJVP2)
Copper-core PVC (XLPE)insulated PVC sheathed copper-tape shielded control cable
Laid in fixed positions such as indoor, in cable channel and pipe, etc.
KVV22
(KYJV22)
Copper-core PVC (XLPE)insulated PVC sheathed steel-tape armored control cable
Laid in fixed positions able to bear large mechanical force such as indoor, in cable channel and pipe,and underground etc
KVVP2-22
(KYJVP2-22)
Copper-core PVC (XLPE)insulated PVC sheathed copper-tape shielded steel-tape armored control cable
Laid in fixed positions able to bear large mechanical force such as indoor, in cable channel and pipe, and underground etc
KVVR
(KYJVR)
Copper-core PVC (XLPE)insulated PVC sheathed flexiblecontrol cable
Laid indoor where movement is requiring flexible cables
KVVRP
(KYJVRP)
Copper-core PVC (XLPE)insulated PVC sheathed braid shielded flexible control cable
flexible control cable Laid indoor where movement is requiring flexible and shielded cables
Rubber insulated and sheathed cable
KGG
KGG silicon-rubber insulated and sheathed
control cable with Cu core
KGGPS
KGGPS silicon-rubber insulated and sheathed,
tinned copper wirebraid shielded control cable with Cu core
KEF
KEF EPR insulated PCP-rubber sheathed
control cable with Cu core
KEFPS
KEFPS EPR insulated PCP-rubber sheathed,
tinned copper wirebraid shielded control cable with Cu core
KEN
KEN EPR insulated NBR-rubber sheathed
control cable with Cu core
KENPS
KENPS EPR insulated NBR-rubber sheathed,
tinned copper wirebraid shielded control cable with Cu core

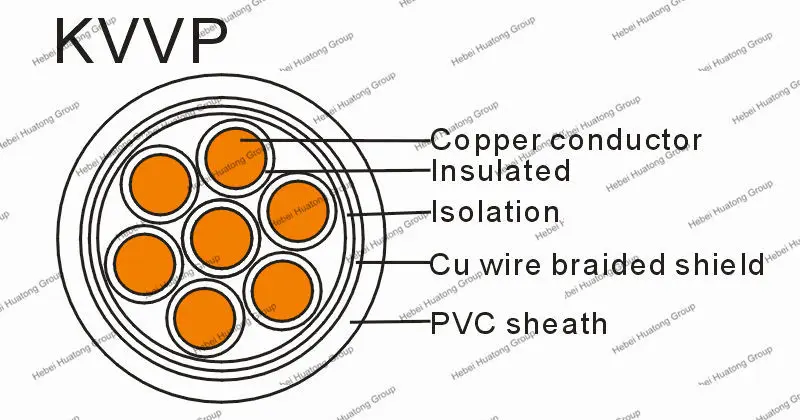

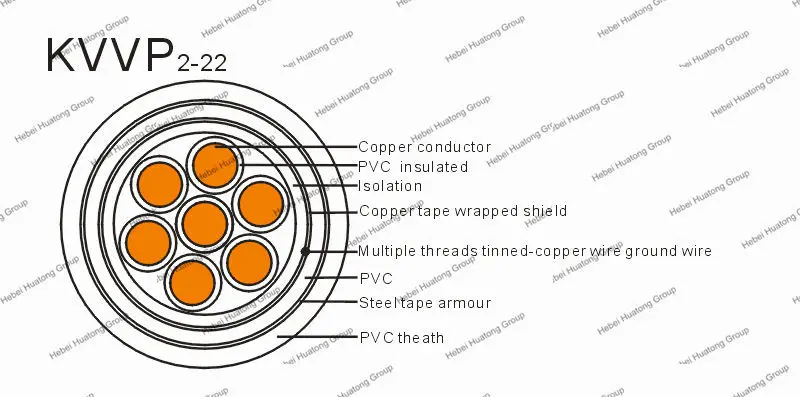

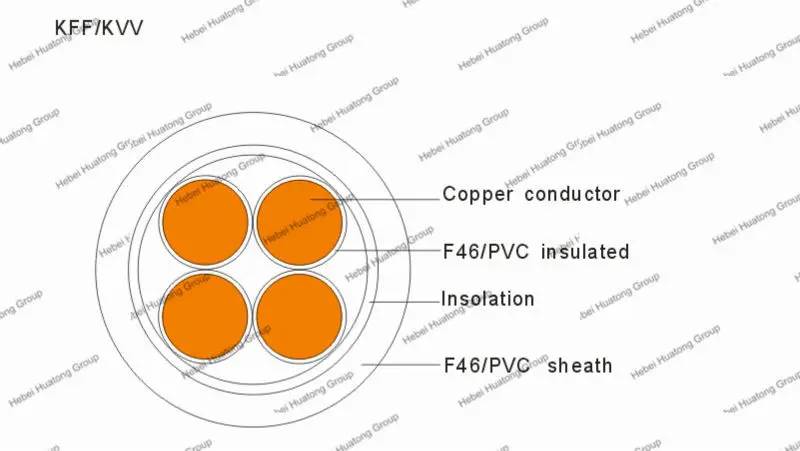

5.Sktch diagram of structure
