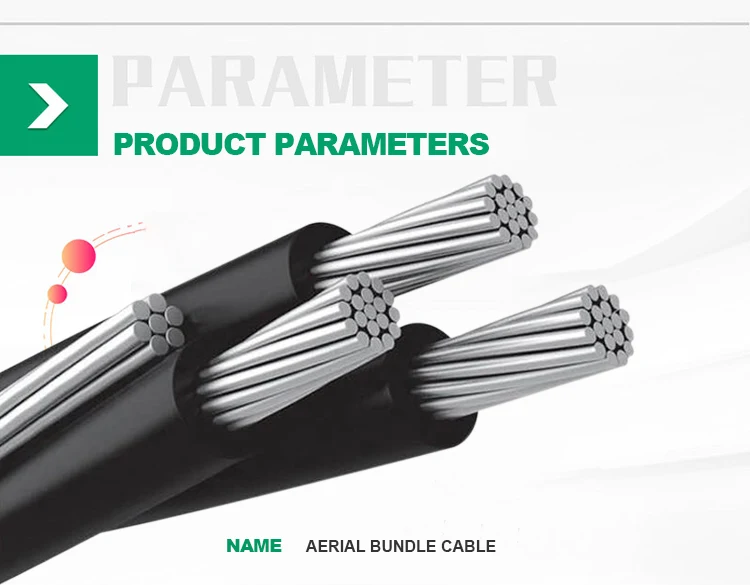

Low high voltage ABC overhead aluminium electrical overhead insulated wire 70mm
Technical data
1. Maximum operating temperature 90 degrees.
2. Maximum short circuit temperature 250 degrees

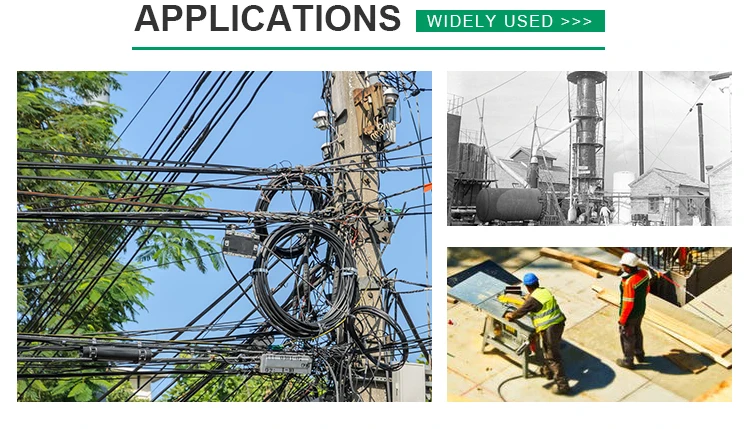

Application field
1. Areas where underground networks are expensive.
2. Electrification of rural areas
Road conductor type
1 AAC: all aluminum bare wire.
Bare conductor of ASC: aluminum strand.
2 AAAC: all aluminum alloy bare conductor.
Bare conductor of AASC: aluminum alloy stranded wire.
3 ACSR: steel core aluminum wire

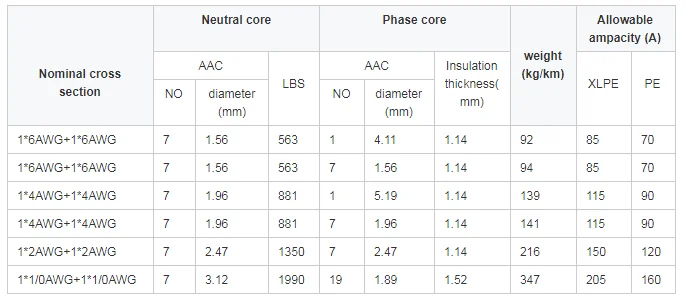

Duplex Service Drop---Aluminum Conductor*APPLICATIONS:Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

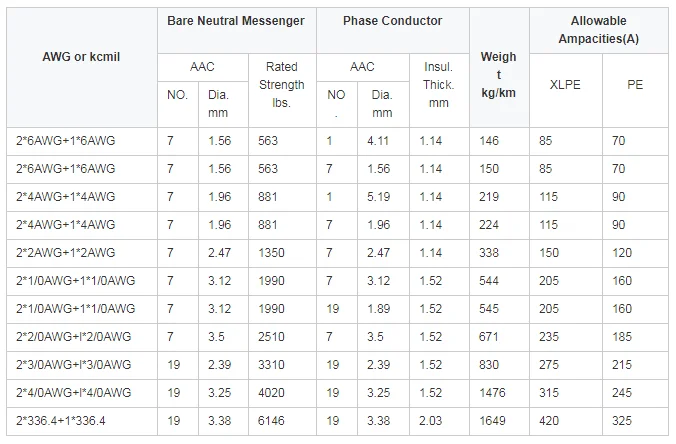

Triplex Service Drop---Aluminum Conductor*APPLICATIONS:Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

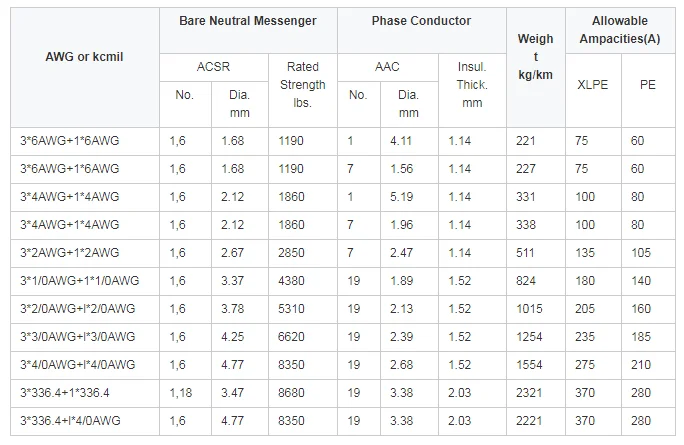

Quadruplex Service Drop---Aluminum Conductor*APPLICATIONS:Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90C for cross-linked polyethylene (XLPE) insulated conductors.
*CONSTRUCTION:Conductors are concentrically stranded, compressed 1350-H19 aluminum.
Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase
identification (one conductor one ridge, one conductor two ridges, one conductor plain.)
