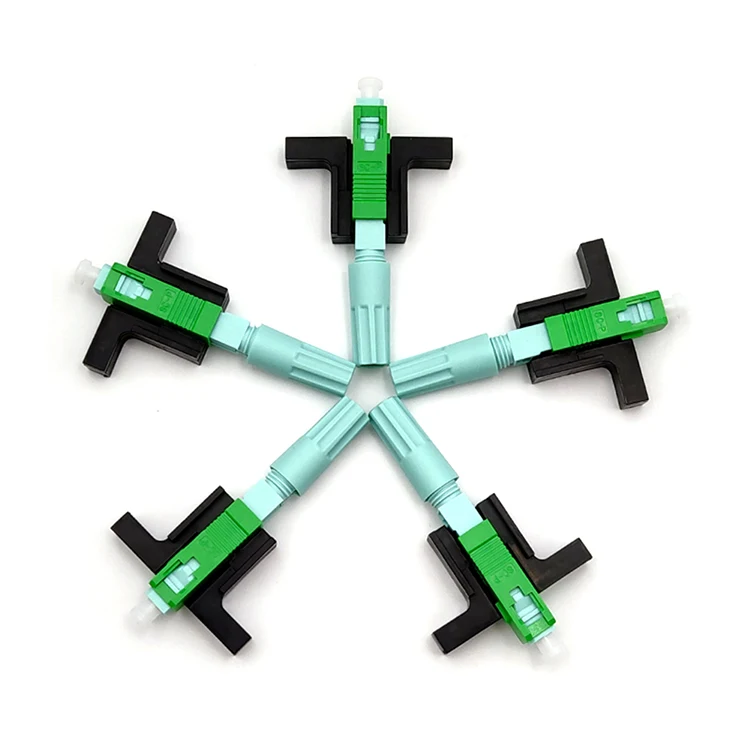

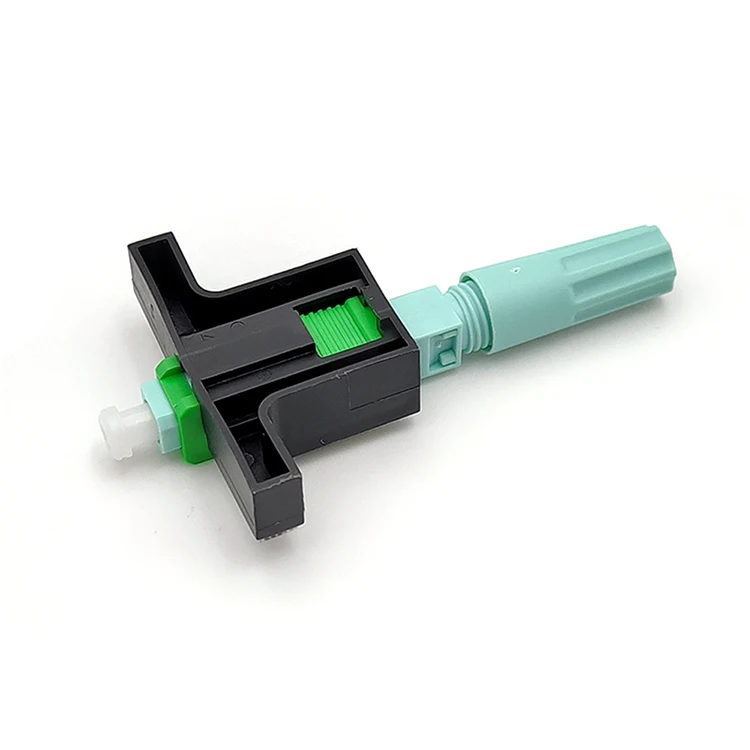

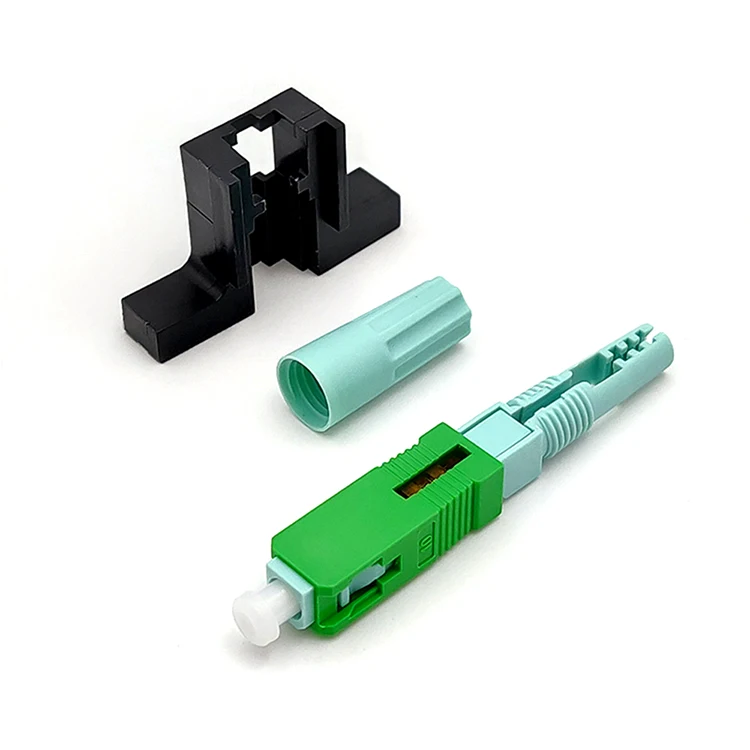

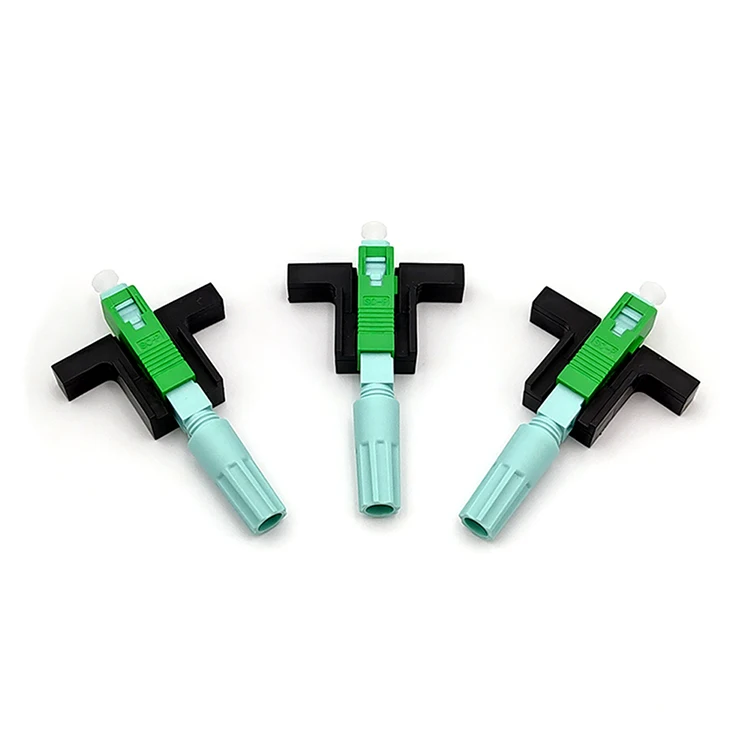

FTTH Sc APC/Upc Single Mode Fiber Optic Fast Connector for Gpon


The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a evolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and superior optical performance,their cable tensile test complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.

Item	Specification
Application	Drop cable or Indoor cable
Fiber mode	Single mode or Multi mode
Fiber type	G.652D, G.657A1
Fiber diameter	0.125mm
Working wavelength	1310 nm, 1490 nm, 1550 nm
Fiber cable	3.0*2.0mm rubber-insulated optical cable ? 3.0/? 2.0 /? 0.9 insulated optical cable
Force holds 2 x 3mm cable type at the beginning of the fast connector	≥ 40 N, loss ≤ 0.4 dB (sample cable length:22 - 28 cm, test time:2 minutes)
Fiber lock	Lock holds fiber reliability, bears hang force ≥ 3.0 N, attenuation changes ≤ 0.2 dB.

Features:
1.Reliable and superior optical performance
2.Using corning fiber
3.Imported Brand matching gel(FIS)
4.Print manufacturer name on fast connector body
5.Easy for assembling with mechanical splice and no polishing
6.Lock and open the structure to make sure optical fiber, flexible, easy to use
7.Operating Wavelength:1310nm, 1490nm, 1510nm
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor
condition.
9.Analysis 3D ferrule (3D geometry test)
