IEC60502-1/JIS 0.6/1KV Multiple Pairs & Triads 1.5mm2 2.5mm2 4mm2 CVV-I/C SB PVC Instrumentation Cable

Cable / Instrumentation Cable

IEC60502-1/JIS 0.6/1KV Multiple Pairs & Triads 1.5mm2 2.5mm2 4mm2 CVV-I/C SB PVC Instrumentation Cable
1.Instrument cable minimizes noise and signal interference,delievery clean signal in harsh environment and general manufacturing operations.
2.Instrument cable have a maximun counductor temperature at 90 °c and a low temperature rating of -40 °c.
3.the cable jacket is resistent to sunlight ,moistureand vapour penetration.
4.Instrument cable is avaiable in individually shielded pairs or triads with an overall shield construction in 300v and 600v.
Instrument cable application :
Instrument cable has a broad range of uses,particularly in the petrochemical ,pulp,paper and sawmill,and other process industries.
Instrument cable design for wet and dry locations ,it is resistent to mechanical damage and corrosive chenicals ,and it is often employed in raceways,direct burial and control applications .

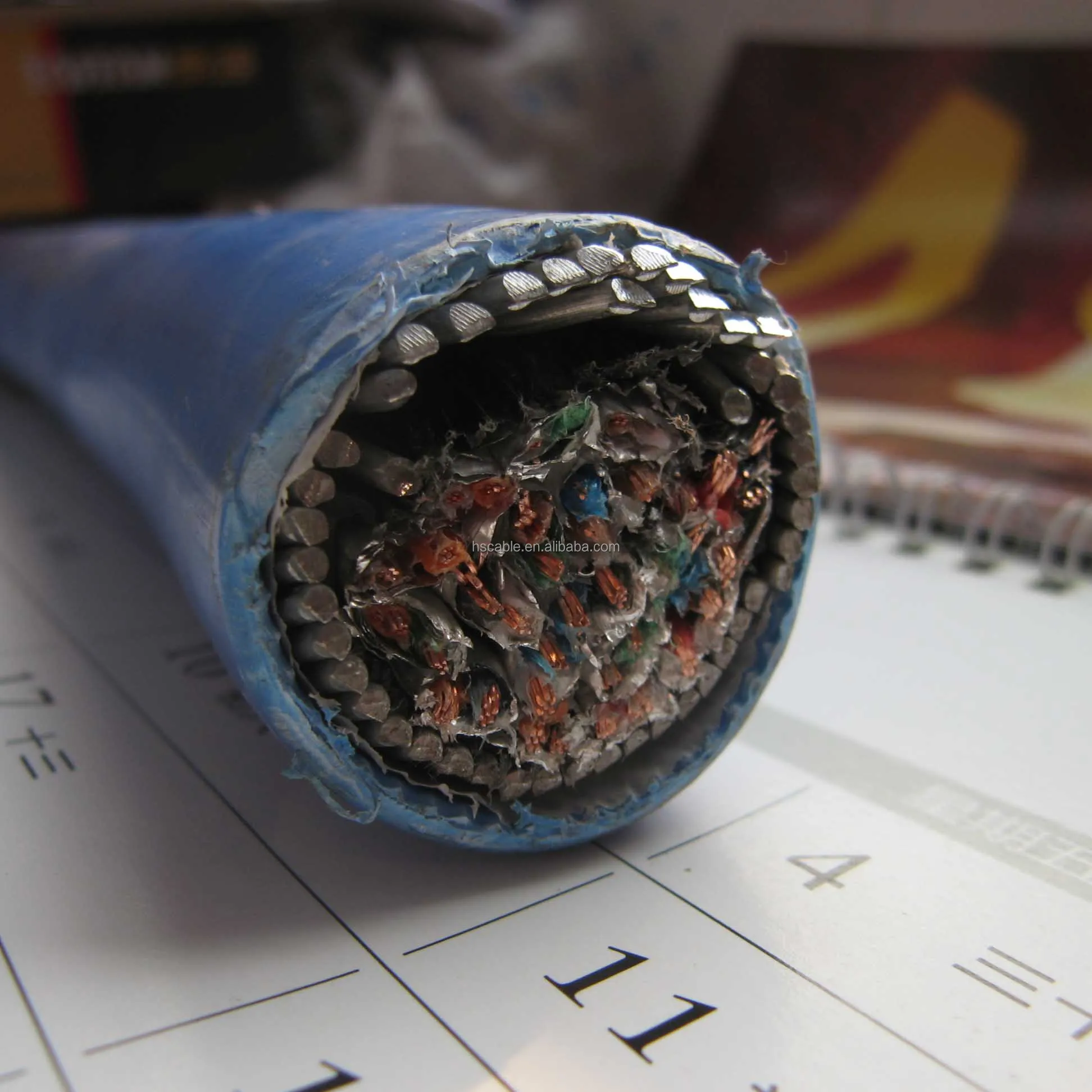

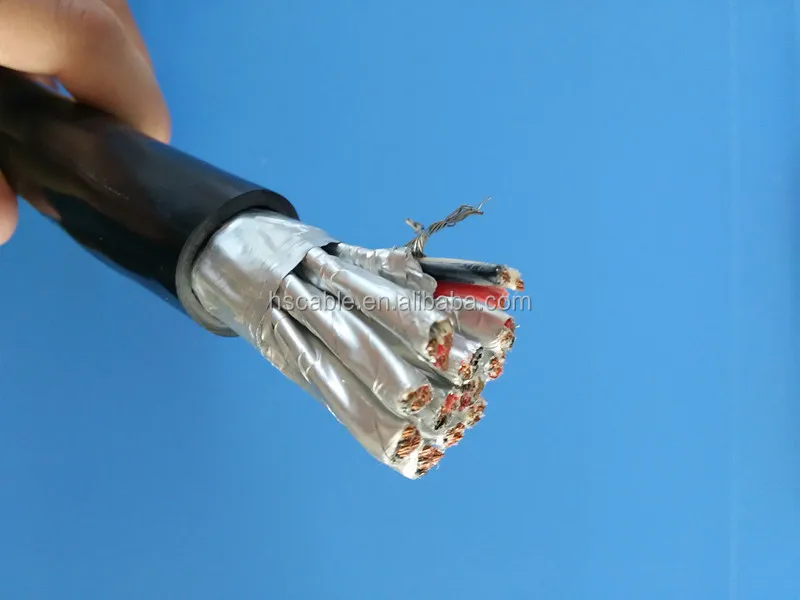

CONSTRUCTION :
1.Conductor: bare copper
2.Insulation: pvc(pe/lszh/xlpe)
3.Individul shield: aluminum/polyester tape with drain wire
4.Overall shield : overall aluminum/polyester tape with drain wire
5.Inner sheath: pvc(pe/lszh/xlpe)
6.Armoured :galvanized steel wire armoured SWA
7.Outer jacket: pvc(pe/lszh)
CONDUCTOR AREA SIZE
MM2
0.5
0.5
0.75
1
1.5
Conductor Stranding
No. x mm
1 x 0.8
16 x 0.2
24 x 0.2
1 x 1.13
7 x 0.53
Conductor resistance max
ohm/km
36.8
39.7
26.5
18.2
12.3
Insulation resistance min
Gohm/km
5
5
5
5
5
Capacitance unbalance at
1 kHz(pair to pair screen)
pF/250m
250
250
250
250
250
Max. Mutual Capacitance @
1 kHz forNon OS or OS cables
(except one-pair and two- pairs)
pF/m
115
115
115
115
120
Max. Mutual Capacitance @
1 kHz IS/OS cables
(include 1 pair and 2 pair)
pF/m
75
75
75
75
85
Max. L/R Ratio for adjacent cores
(Inductance/ Resistance)
UH/ohm
25
25
25
25
40
Test voltage Core to core
V
1000
1000
1000
1000
1000
Test voltage Core to screen
V
1000
1000
1000
1000
1000
Rated voltage max
V
300/500
300/500
300/500
300/500
300/500
