DETAILS
HDMI Cable


Defination Of HDMI Cable
HDMI , which is backwards compatible with earlier versions of the HDMI specification, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.
Features of HDMI HDMI 2.0Version Cable
HDMI significantly increases bandwidth to 48Gbps and includes the following advanced features

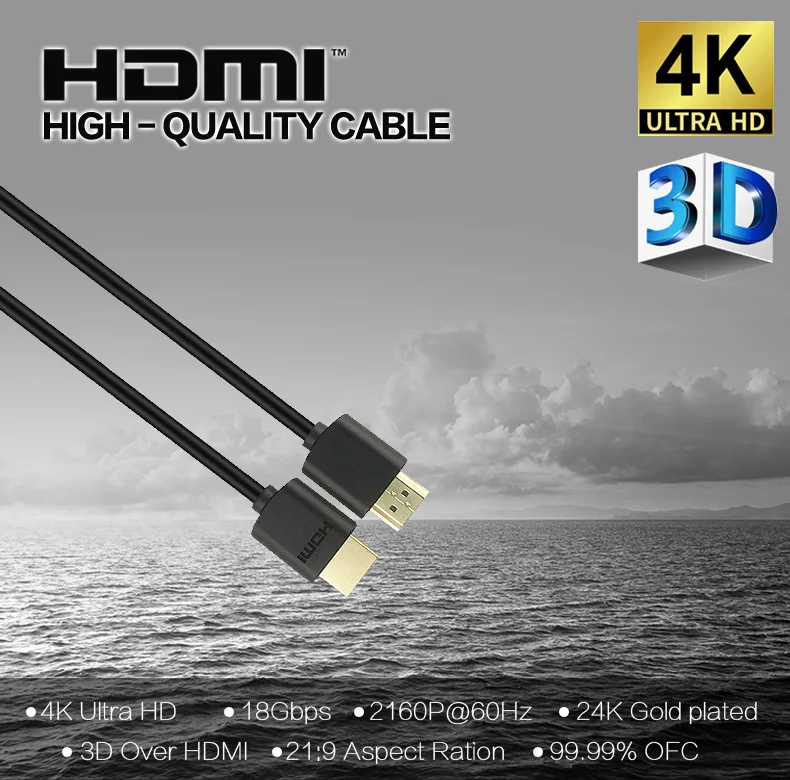

*HDMI 19P MALE TO HDMI 19P MALE cable
*24K gold plated connector *Conductor: 30AWG(CCS)
*HDMI cable OD:5.5MM, 19+1
*Molding type(Black color)
*With dust cap
*Supports up to 4K 60HZ 18Gbps
*With Rohs and CE compliance
*24 months warranty
Connector Type
HDMI 19Pin Male to HDMI 19Pin Male
Connector Finish
24K Gold Plated
Length
0.5M
Gauge
30AWG
Conductor Plating
CCS
Shielding Level
Double Shielded
Ferrite Cores
Yes
Net Jacket
No
Built-in Equalizer
No
Supported Resolutions
3840x2160, 60/50p
Bandwidth
up to 340 MHz per channel (1.8 GHz total)
Data Throughput
up to 3.4 Gbps per channel (18 Gbps total)
HDMI Certified
Yes
FC Compliant
Yes
CE Compliant
Yes
ROHS & Reach Compliant
Yes
Supports DVD Audio
Yes
Supports SACD
Yes
Supports Dolby TrueHD™
&DTS-HD Master Audio™
Yes
Voltage Rating
30V
