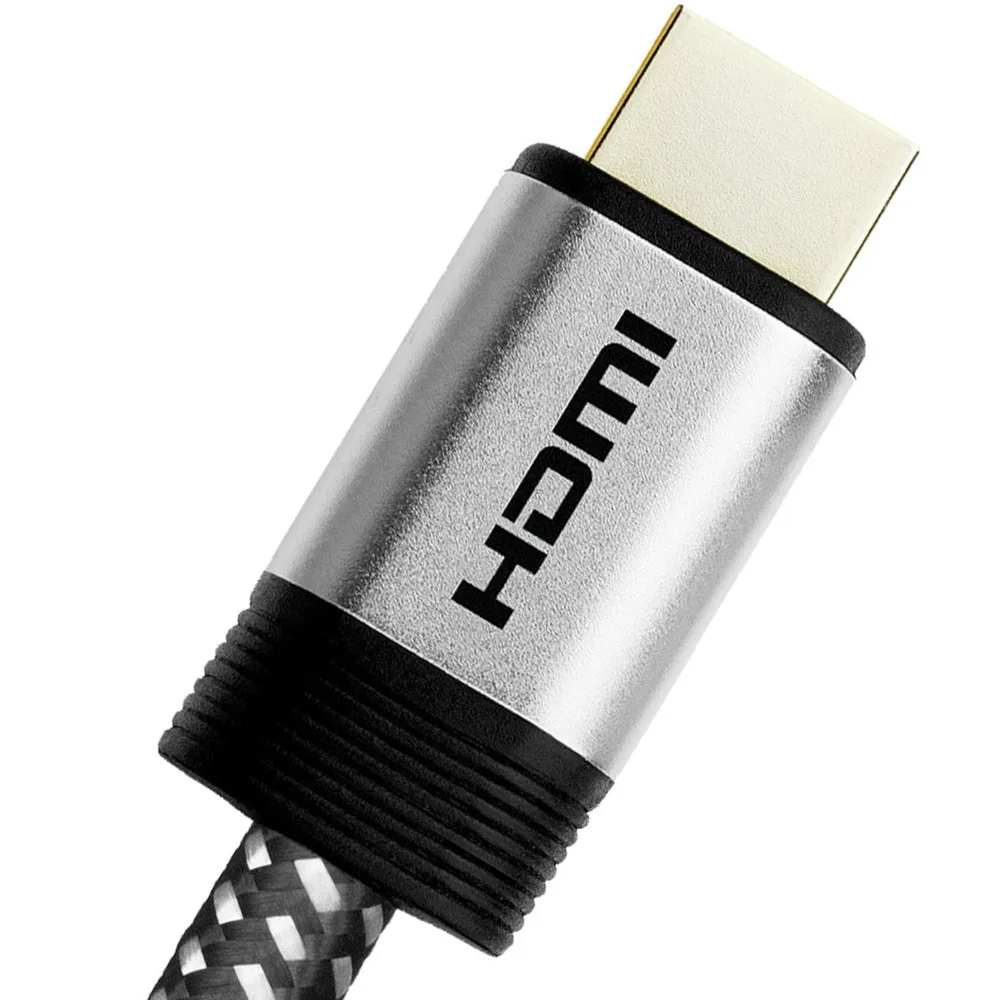

Premium RoHS HDMI Cable Gold Plated Connectors 18Gbs with Ethernet and High-Strength Braided Nylon HDMI Cord 7.5m

Connect a multimedia device to a display and support the latest HDMI features including Ultra HD, 4k at 50/60 (2160p), the heavy duty cable is not easy to get broken, and the aluminum case connectors well protect RFI/EMI.
Key Features• The Heavy Duty Nylon Braid construction is not easy to get broken
• The Aluminum Case connectors well protect RFI/EMI
• Support 3D, Kx2K@60Hz (2160P, 4:4:4) Video and Audio Return Channel (ARC)
• Bandwidth up to 18Gbps
• UMATECK 3 Years Warranty






Technical Spec
Electrical Characteristics
• Nominal Velocity of Propagation - 18Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 100Ω
• Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Physical Characteristics:
• Voltage Rating - 30V
• Maximum Bend Radius - 90mm
• Temperature Rating - 80
• Operating Temperature Range - -20- 80
• Storage Temperature Range - -25- 85
• Approvals – RoHS, CE, UL Compliant
Conductor 1 (5 Pairs)
• Conductor Type - 26AWG Bare Copper
• Insulation - Foamed PE SKIN
• Drain Wire - 28AWG Bare Copper
• Shield - Aluminum Foil, 100% Coverage
Conductor 2 (1 Pair)
• Conductor Type - 28AWG Bare Copper
• Insulation – HDPE
Conductor 2 (2 Conductors)
• Conductor Type - 28AWG Bare Copper
• Insulation – HDPE
Overall Cable
• Drain Wire - 28AWG Bare Copper
• Foil Shield - Aluminum Foil, 100% Coverage
• Braided Shield - 16/8/0.12, Al/Mg
• Jacket - PVC, Black, O.D.: 8.2±0.2mm
Connector 1
• Connector Type - HDMI Type A Male
• Pin Construction - Phosphor Copper
• Injection – Aluminum Case
• Plating –Gold
Connector 2
• Connector Type - HDMI Type A Male
• Pin Construction - Phosphor Copper
• Injection – Aluminum Case
• Plating –Gold
Contact us to get detailed technical data sheet by mail
Order information
Part #
Description
H103-010
Braided HDMI 4K Cable with Aluminum Cases, 30AWG, OD:7.3mm, 1M/3.3FT, Black
H103-018
Braided HDMI 4K Cable with Aluminum Cases, 30AWG, OD:7.3mm, 1.8M/6FT, Black
H103-030
Braided HDMI 4K Cable with Aluminum Cases, 30AWG, OD:7.3mm, 3M/10FT, Black
H103-050
Braided HDMI 4K Cable with Aluminum Cases, 28/30AWG, OD:7.3mm, 5M/16.5FT, Black
H103-075
Braided HDMI 4K Cable with Aluminum Cases, 26/28AWG, OD:8.2mm, 7.5M/25FT, Black
H103-100
Braided HDMI 4K Cable with Aluminum Cases, 26AWG, OD:8.2mm, 10M/33.3FT, Black
H103-120
Braided HDMI 4K Cable with Aluminum Cases, 24/28AWG, OD:8.2mm, 12M/39.4FT, Black
