Product Name:

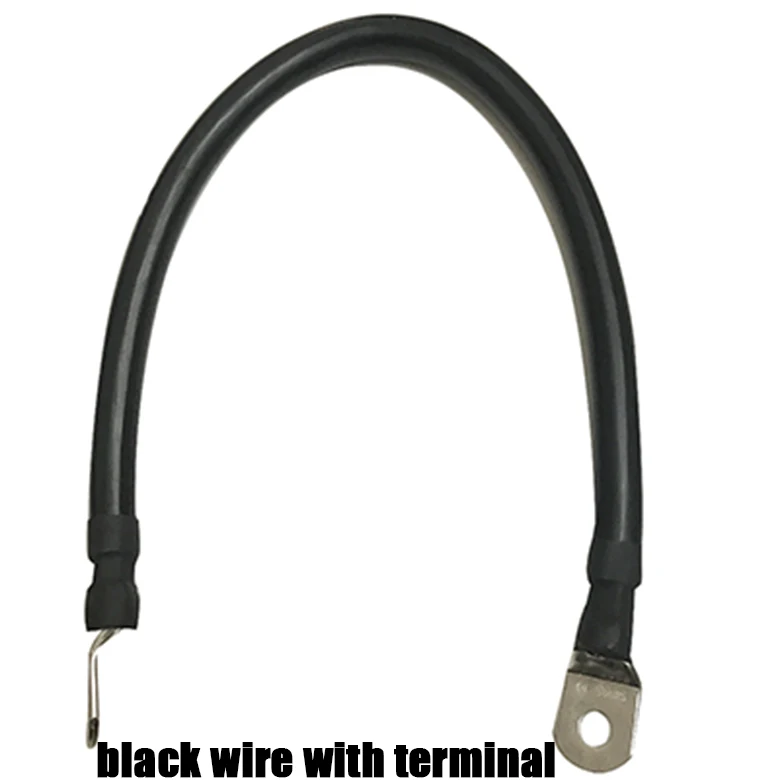

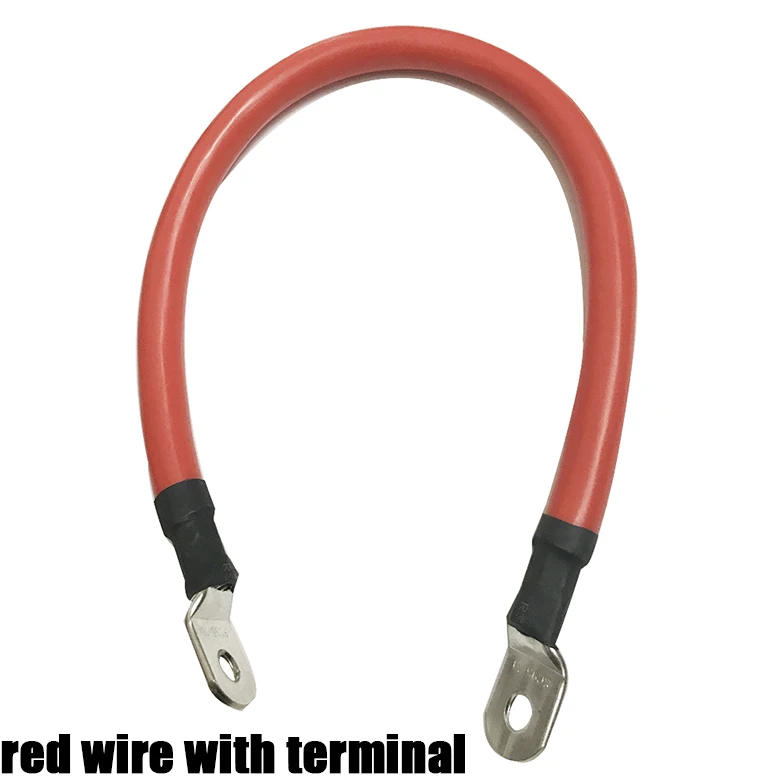

Battery cable with terminals
Conductor:
Standard copper
Insulation:
PVC
Voltage:
300/300V, 300/500V, 450/750V
Tempuratire:
90C-105C
Standard:
IEC/UL
Color:
Black/Red/Optional
Length:
10-300cm (5-10ft)
Flame test:
EN60332-1-2
Warranty:
2 years

Feature:Color: red and blackSpecifications: 0AWG / 1AWG / 2AWG / 4AWG / 6AWG / 7AWGMaterial: tinned copper conductor, can keep the copper wire is not oxidized for a long time. The outer skin is made of silicone rubber, which is soft, wear-resistant and resistant to high temperatures.

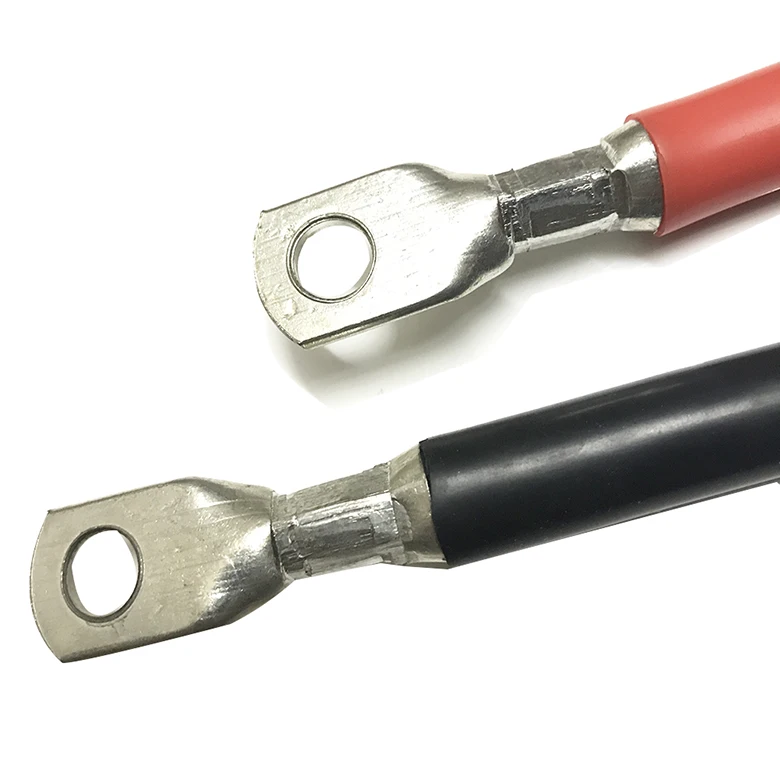

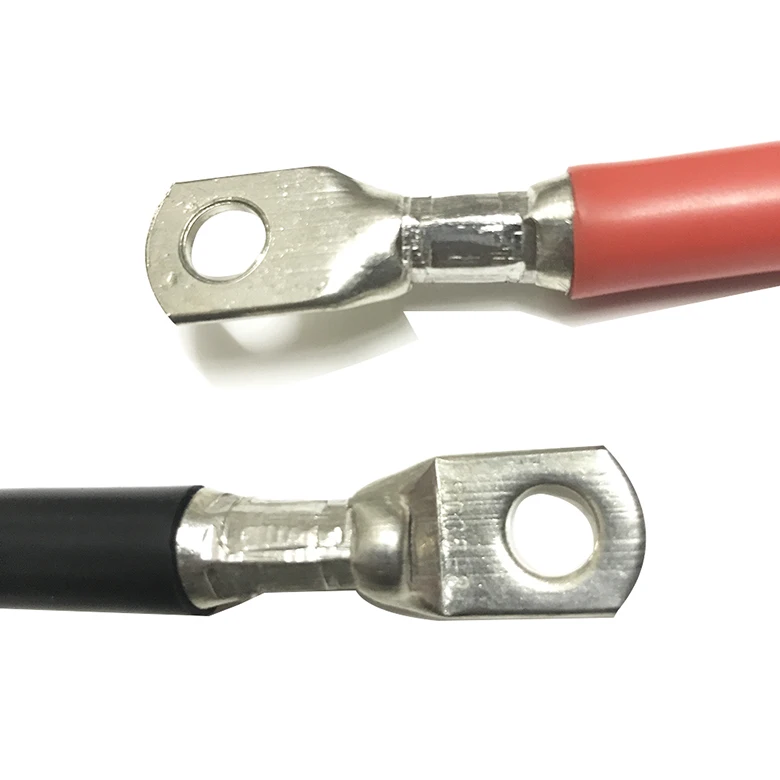

The terminal is one model larger than the wire. For example, if the wire is 25mm2, terminal will be 35mm2 .Terminal aperture is
uniformly 10mm
​
0AWG special soft high temperature silicone wire
Temperature resistance: -65 degrees---+200 degrees
Color: black, red
Single copper wire diameter: 0.08mm
Inner core: 14000 shares
Outside diameter: 16mm
1AWG special soft high temperature silicone wire
Inner core: 10000 shares
Outside diameter: 15mm
2AWG special soft high temperature silicone wire
Single copper wire diameter: 0.08mm
Inner core: 7000 shares
Outside diameter: 13mm
4AWG special soft high temperature silicone wire
Single copper wire diameter: 0.08mm
Inner core: 5000 shares
Outside diameter: 12mm
6AWG special soft high temperature silicone wire
Single copper wire diameter: 0.08mm
Inner core: 3200 shares
Outside diameter: 8.5mm
7AWG special soft high temperature silicone wire
Single copper wire diameter: 0.08mm
Inner core: 2400 shares
Outside diameter: 7.2mm
Detailed Images
