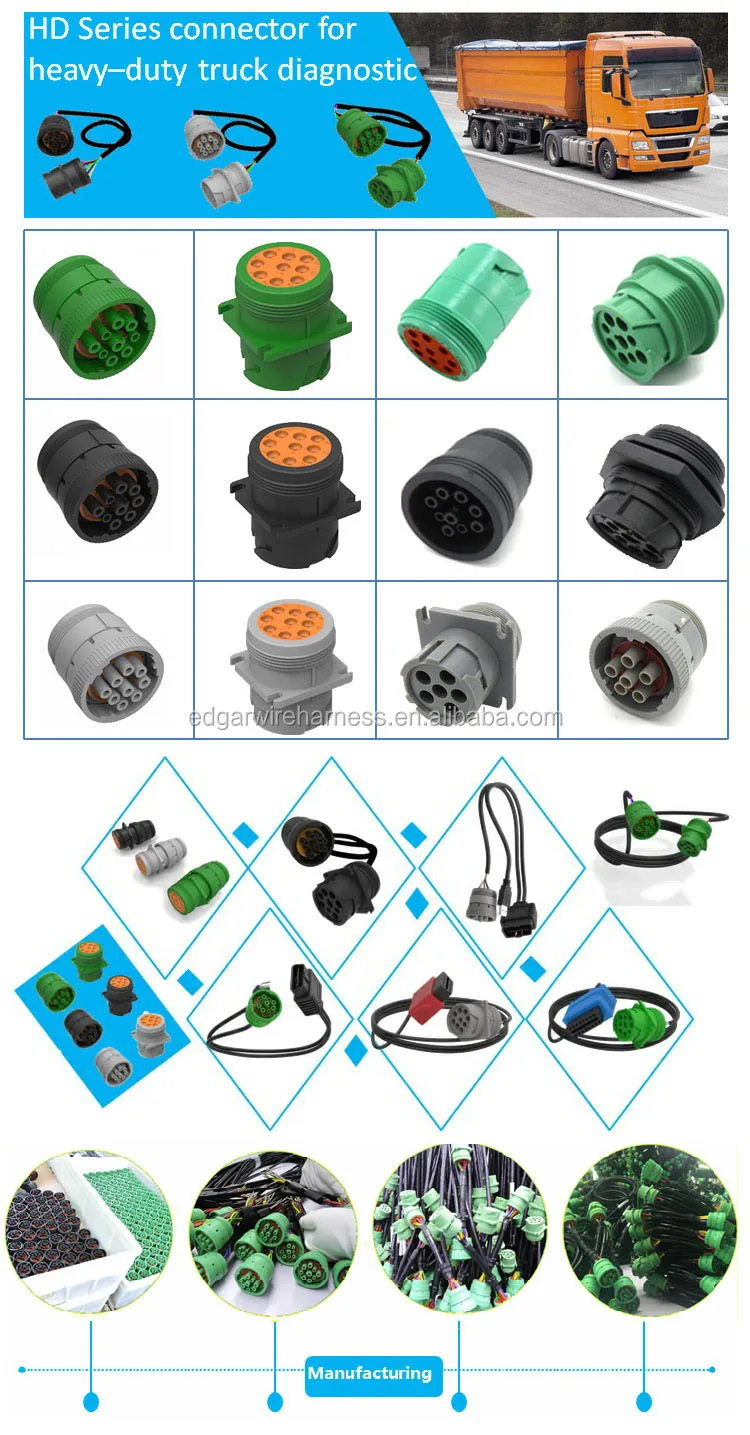

The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, which is designed to be a faster, easier, trouble free assembly diagnostic connector in heavy-duty industry like truck, bus, cross-country vehicle,crane and forklift etc. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants encountered.
Product Specification
Operating at temperatures -40 to +125, no Cracking, Chipping or leaking after 20 test cycles from -40~+125.
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G"s at 10 to 2000Hz in each of the three mulually perpendicular planes for 2 hours. Force testing report as below shows
IP68 rating, waterproof withstand immersion under 1.2 meter of water for 24 hours.

The forece testing as below show
EDG-HD10-9-1939P-P080
Terminal type Wire type CONT. Retention REF crimp tensile Failue Model
1060-16-0122 UL 1007 18# 20 LBS >20 LBS Wire damage
1060-16-0122 UL 1007 16# 20 LBS >25 LBS Grommet broken
EDG-HD16-9-1939S-P080
Terminal type Wire type CONT. Retention REF crimp tensile Failue Model
1060-16-0122 UL 1007 18# 20 LBS >20 LBS Wire damage
1060-16-0122 UL 1007 16# 20 LBS >25 LBS Grommet broken
