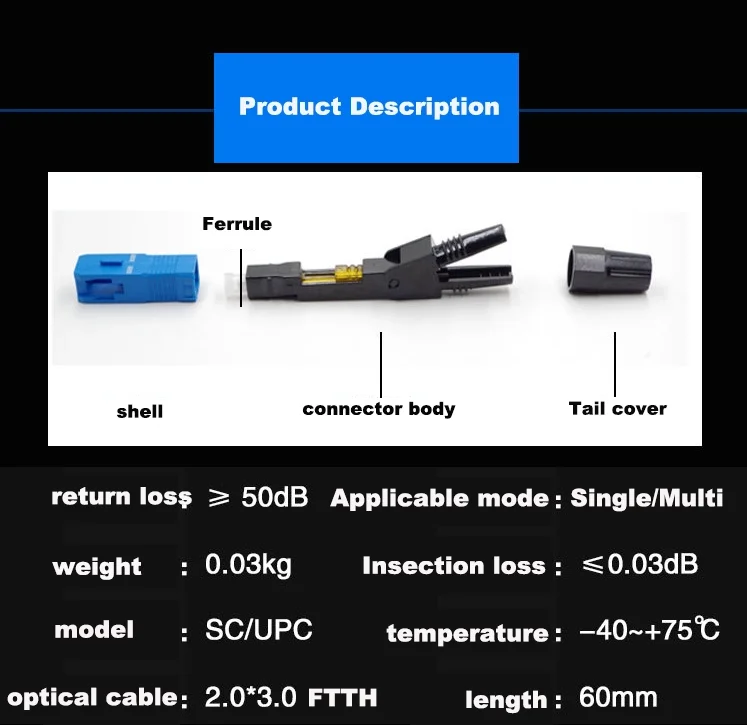

Product Description
Field Assembly electrical cable connectors for communication cables IR 0.3dB fast sc fiber connector for FTTH Solution
SC LC AP C UPC Fiber Optic Fast Connector
SC optical adapter is of flange type, single mode adapters are with zirconia sleeve . SC optical adapter makes two end face precision docking, which can make light energy from transmitter optical fiber coupled to receiver optical fiber efficiently and will reduce impact to a minimum because of intervention optical link of system.We can do SM,MM,OM4 SC Adapter ,also Simplex ,duplex adapters .Metal SC adapter and shutter adapter is hot sell in the market .
Product Characteristics
- Factory-installed fiber stub.
-
No epoxy and polishing required, No special tools needed when installed.
-
Allows up to three re-termination result.
-
Easily installed, Quick and easy fiber termination in the field.
-
Only 30 seconds needed to learn the process of installation and making.
-
Cost effective, Warranty:One year.
-
Fast connecting and repeat, No special tools needed when installed.
-
Can be made on-site without splicing connectors.
-
Eliminates cable excess length and pigtail splice storage. 10) Can be intalled and maked repeatedly thus avoiding loss.
Structural Parameter
| ITEM | Technical Parameters |
| Applicable for | Drop cable / Indoor cable |
| 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) |
| 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | >50db(PC), >55db(UPC), >65db(A PC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+85°C |
| On-line tensile strength (20 N) | IL ≤ 0.3dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.3dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.3dB RL ≤ 5dB |
Packaging & Shipping
The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging the package and to handle with ease.
Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
