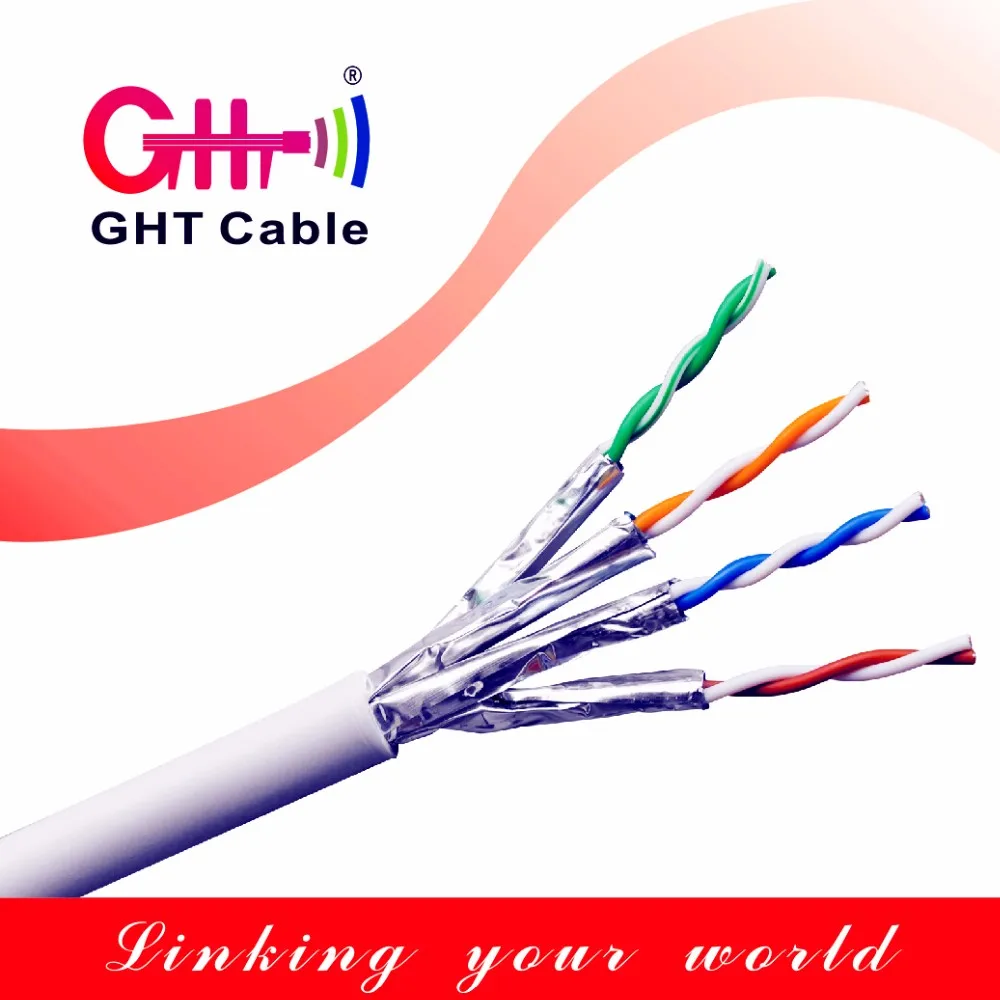

Fire resistant 24awg cable cat5e utp
communication cable with best price

Specifications:↓
Product Type: Cat5e UTP
Conductor Material: 99.99% bare copper/CCA
Insulation: 0.915 HDPE/LDPE
Jacket: PVC / LSZH / WDZ-PVC/LDPE
Jacket Color: White/Gray. (Or as customer"s request.)
Certificates: CE RoHS CCC TLC ISO9001 TUV SGS
Pls find the different of indoor and outdoor details as below:
No.
Item
Conductor
Pairs No.
Insulation Dia(mm)
Jacket Dia(mm)
1
UTP CAT5e(Indoor)
24AWG
4
0.915±0.02
5.2±0.02
2
UTP CAT5e(Outdoor)
24AWG
4
0.915±0.02
5.8 ±0.02

Electrical characteristics: ↓
Communicate rate: 100 MHZ
Insulated Resistance: >5000MΩ.km at 20°C
Working temperatures: -20 to 75°C
Impedance: 9.38 Ω /100M
Reference standard: YD/T 1019-2013; UL444; UL1581;TIA/EIA-568B;IEC 60332-1 ; ISO/IEC11801; (Performance and superior to the above standards)
Application: ↓
Ethernet;10 Base-TX;ATM; Trunk Cabling;
Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.
You may like:



Feel free to Contact us to find what you need.

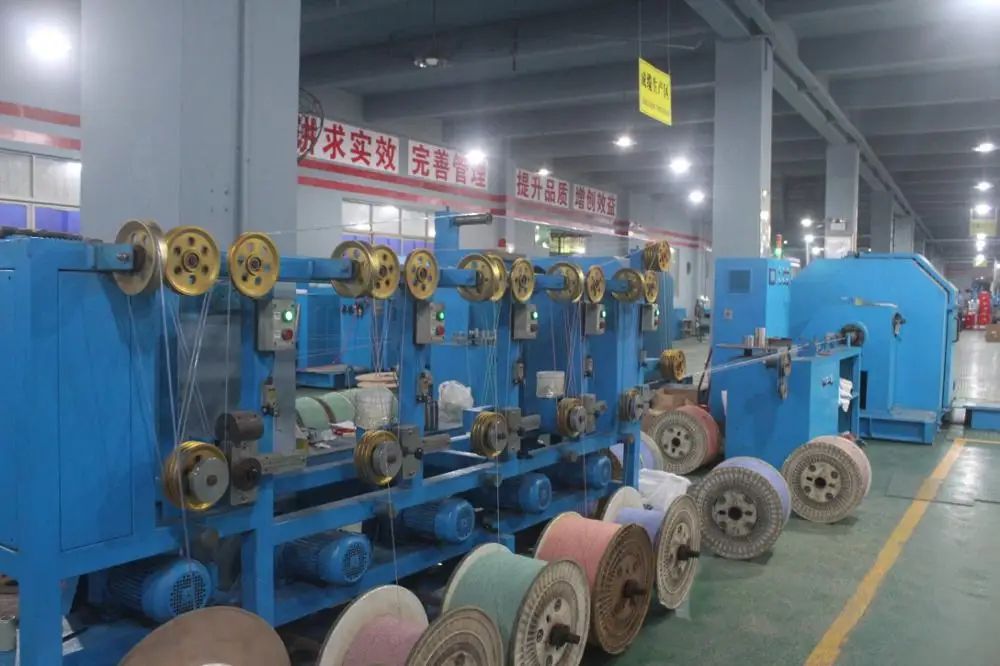

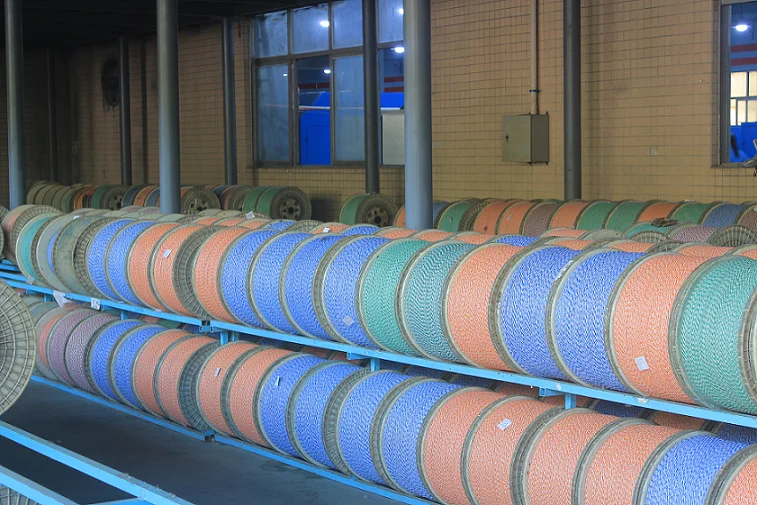

Production Chain




Packaging & Shipping



Packing Data
Length*Width*Height(cm) 1*20GP(BOXES) 1*40HQ(BOXES)
CAT5e indoor (2pcs)43*35*35cm 1040 2560
CAT5e outdoor (2pcs)49*37*37.5cm 800 1950
CAT6 indoor (2pcs)47*39.5*40cm 727 1800
CAT6 outdoor (2pcs)47*41*40cm 690 1728
