UMATECK Fiber Optical HDMI Cable Support 4K HDCP 2.2 HDR ARC 18Gbps 3D CEC EDID HEC

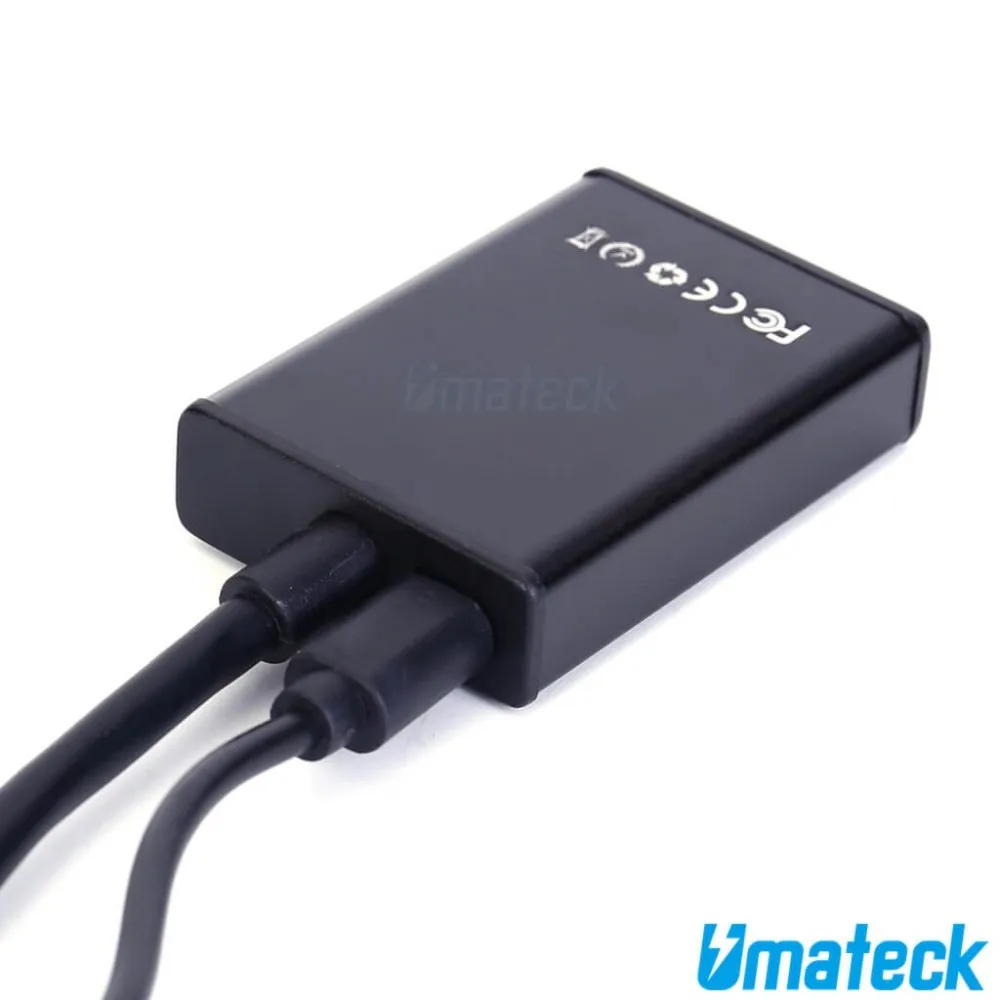

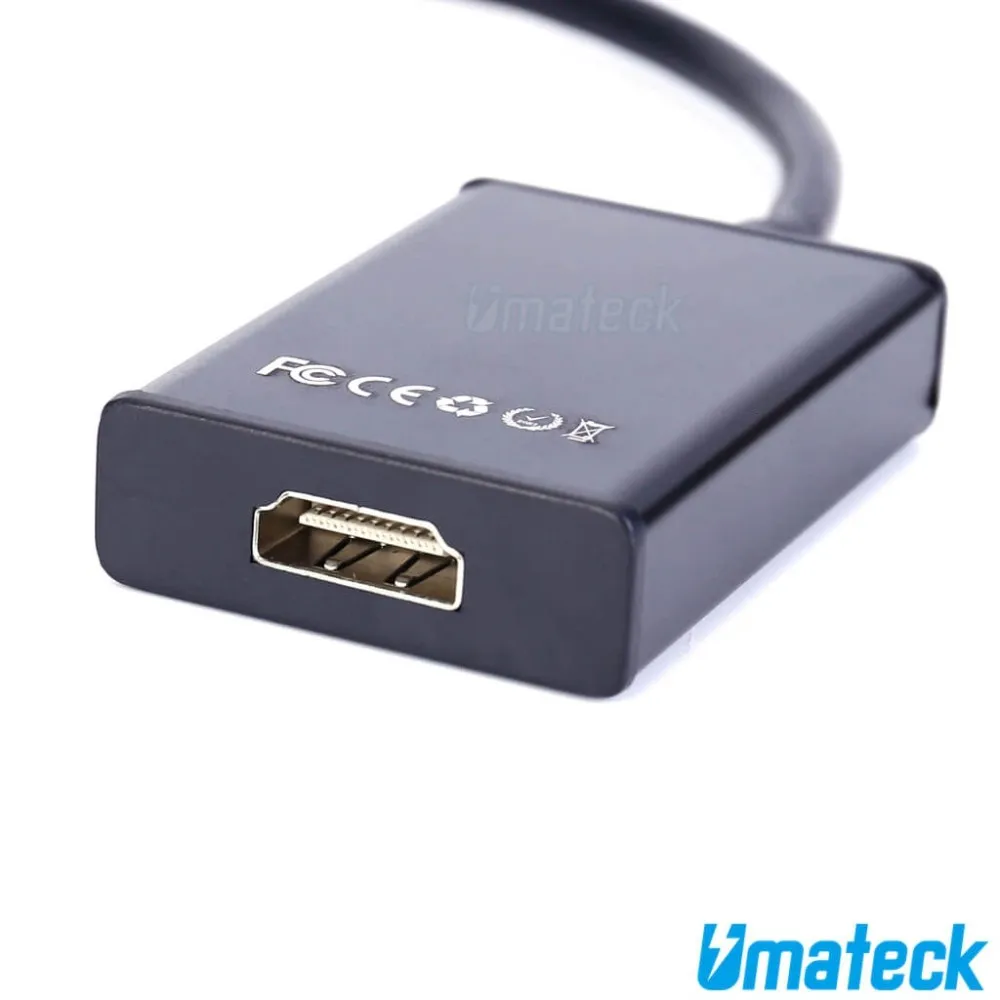

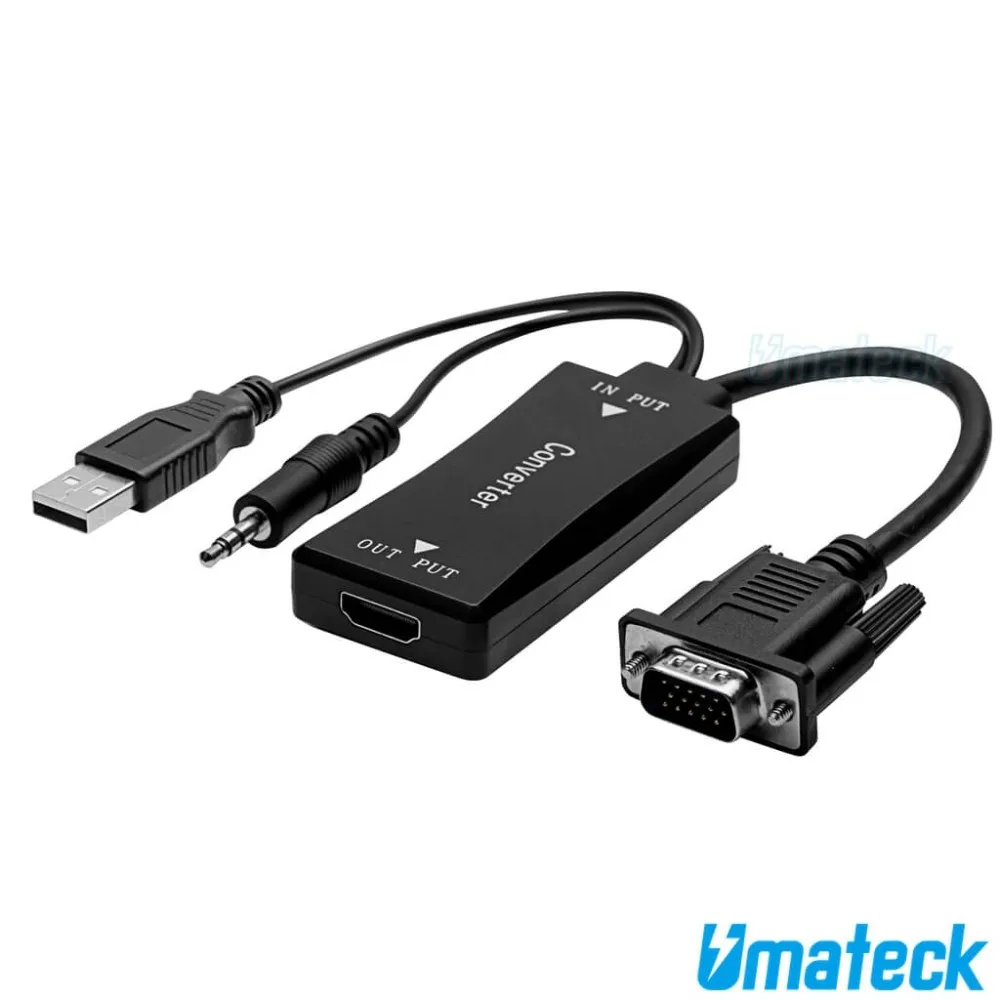

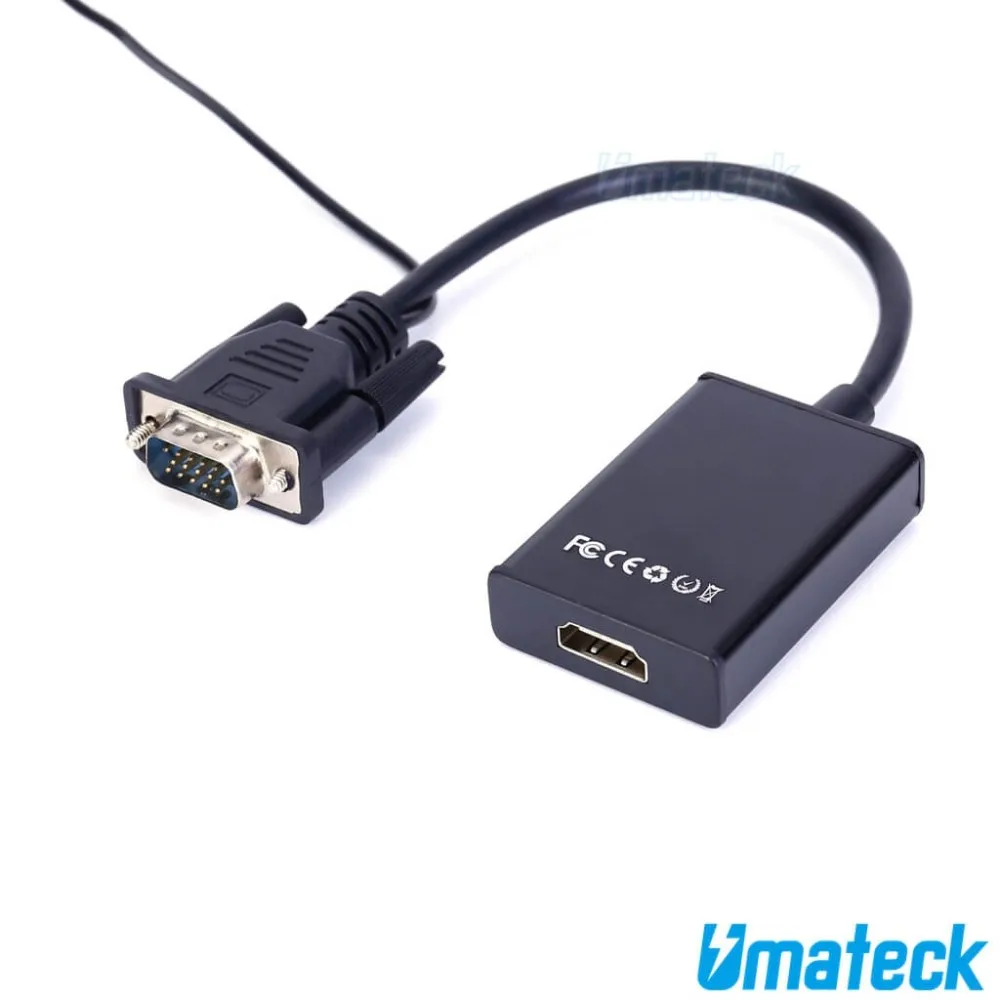

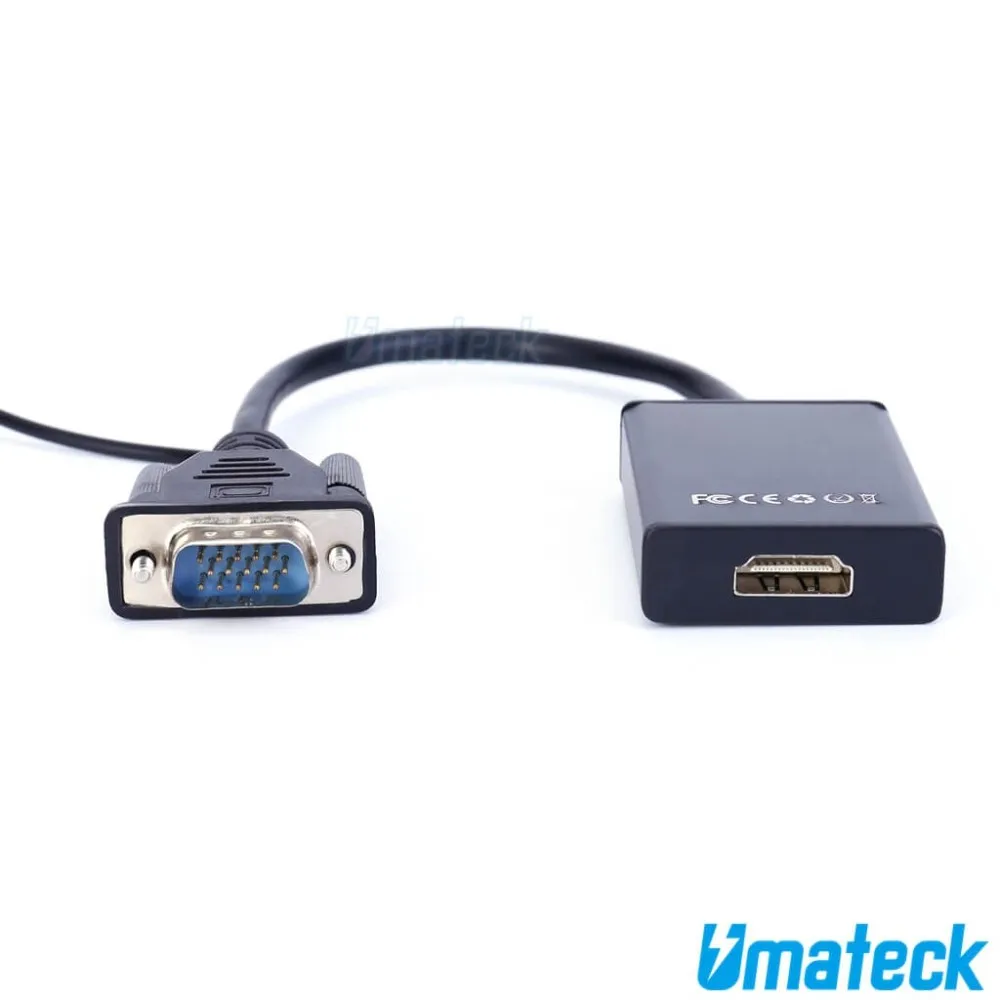

Umateck High Quality VGA to HDMI Adapter is an ideal solution to connect a laptop or desktop with a VGA port to an HDTV, monitor, projector with HDMI port. Supports a high definition resolution up to 1920x1080@60 (1080p Full HD) including 720p and 1600x1200. High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer. This fully-functional adapter cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.
Key Features- Connect the video output of a VGA enabled laptop or desktop to an HDMI display
- Convert VGA analog signal and Stereo audio signal to HDMI digital signal
- The included Micro USB cable provides additional power
- Support 1920x1080@60Hz (1080p Full HD) resolution
- Feature a built-in active IC chip to achieve better compatibility
Note: VGA to HDMI adapter cable converts VGA analog signal and Stereo audio signal to HDMI digital signal
Part # UMHD7001F
Catgory fiber hdmi cable
Connector 1 VGA Male
Connector 2 HDMI Female + 3.5mm Female + Micro USB Female
Conductor Bare Copper
Ferrite Cores With or W/O
Color White, Black
Length Up to 300m
Package Poly Bag, Zip Bag, Color Box, Blister... or Customized
Approval CE, RoHS, REACH, UL
Wanrrany 2 Years
Technical Spec
Electrical Characteristics- Resolutions Supported: 480i/480p, 576i/576p, 800x600, 720i/720p, 1280x1024, 1600x1200, 1080i/1080p
- Voltage: 5V, 500mA
- Voltage Rating: 30V
- Pixel clock rate: Up to 165MHz
- Impedance : 100±5Ω
- Intra-pair skew: 15ps/m max
Physical Characteristics:
- Minimum Bend Radius - 12mm
- Operating Temperature - 0 - 70
- Storage Temperature Range - -10- 80
- Approvals – RoHS, CE, UL Compliant
Conductor 1 (5 pair)
- Conductor Type - 34AWG Tinned Copper
- Insulation - Foamed PE SKIN
- Drain Wire - 34AWG Tinned Copper
- Shield - Aluminum Foil, 100% Coverage
Conductor 2 (5 conductors)
- Conductor Type - 34AWG Tinned Copper
- Insulation - HDPE
Overall Cable
- Drain Wire - Not contained
- Foil Shield - Aluminum Foil, 100% Coverage
- Braided Shield - 16/10/0.08, Tinned Copper
- Jacket - PVC, Black, O.D.: 4.8±0.2mm
Connector 1

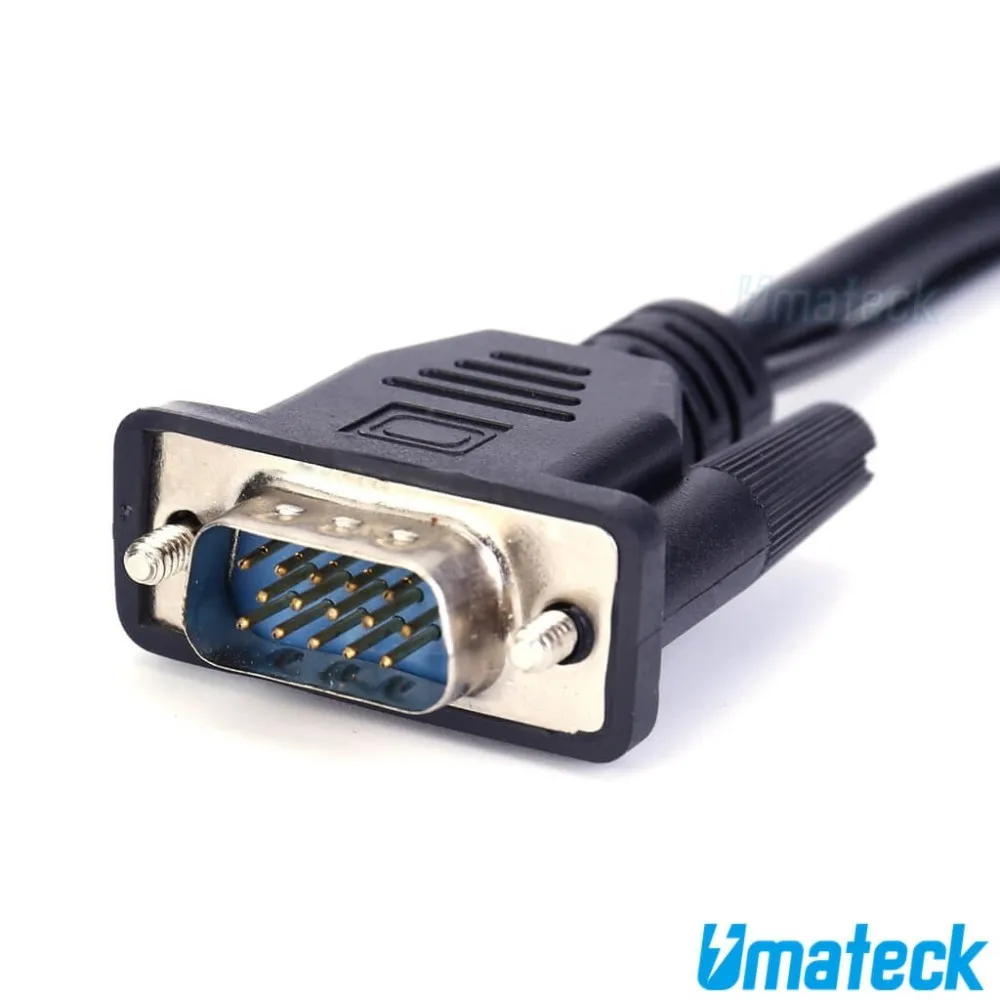

- Connector Type - VGA Male
- Pin Construction - Phosphor Copper
- Injection – 45P PVC
- Plating – 1 µm Gold
Connector 2
- Connector Type - HDMI Female + 3.5mm Female + Micro USB Female
- Pin Construction - Phosphor Copper
- Injection – ABS
- Plating – 1 µm Gold
