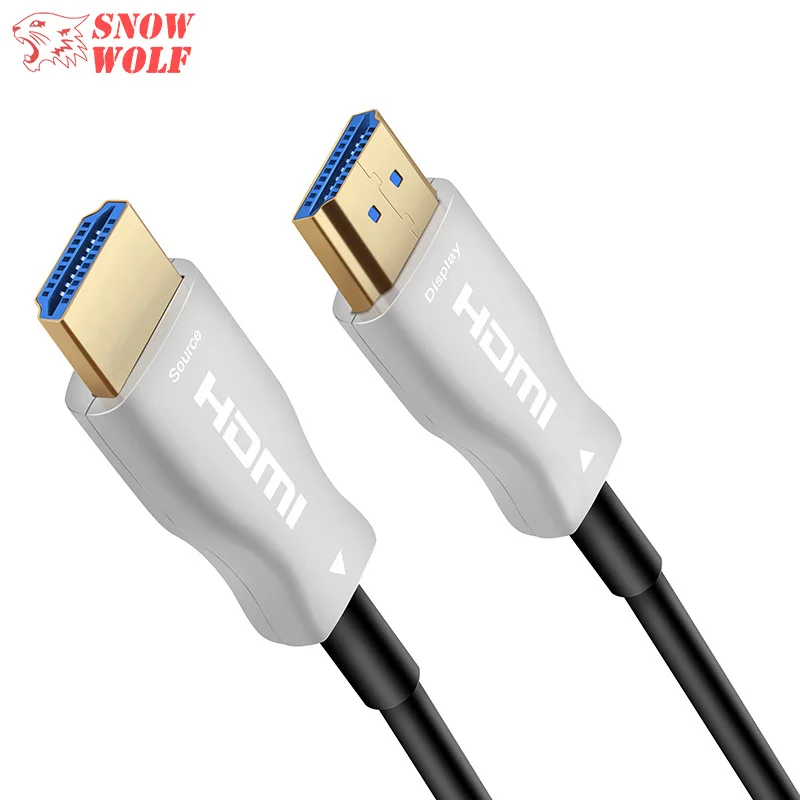

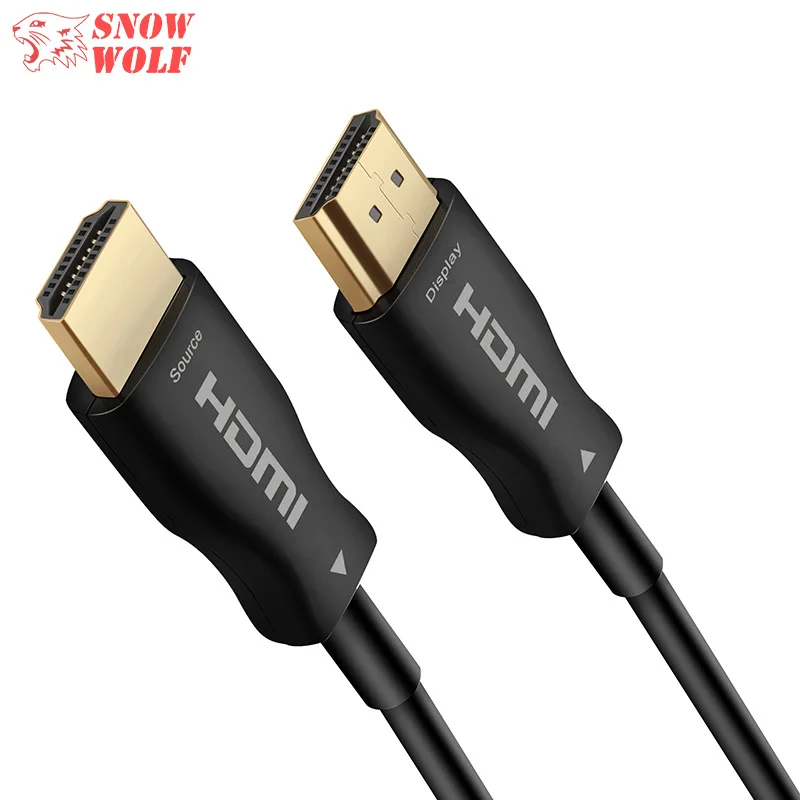

Product Name Fiber Optic HDMI Cable
HDMI Type HDMI Type A Male
Connector 24K Gold Plated
HDMI Style Zinc Alloy Shell
Driver IC Silicon line,Optical Maser & PD:II-VI or ULM.
HDMI Length 10M,15M,20M,25M,30M,40M,50M,60M,70M,80M,90M,100M
Wire Conductor 4 Optical Fiber cores + 7 Tinned Copper cores
Cable Shielding AI-Mylar+ Aluminum Foil
Inner Insulation Foamed PE
Outer Insulation Soft Flexible TPE Jacket
HDMI Function Full HD 1080P+ 3D +
True HD4K@60Hz + RGB 4:4:4 +18Gbps + HDR 10+ ARC+ Ethernet + Dolby TureHD

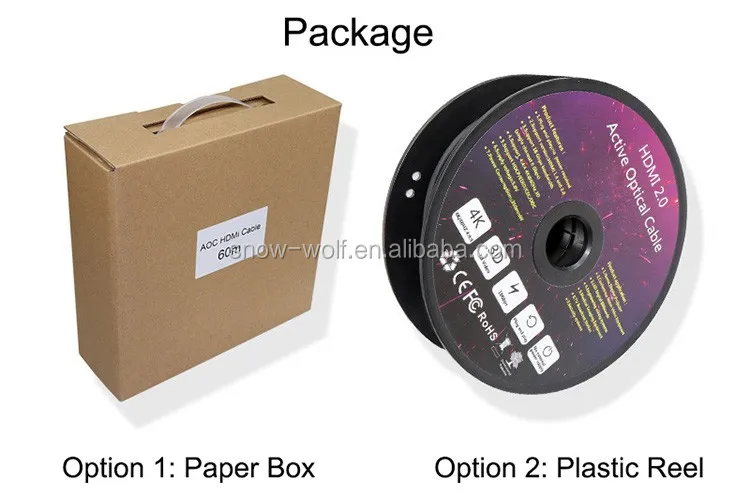

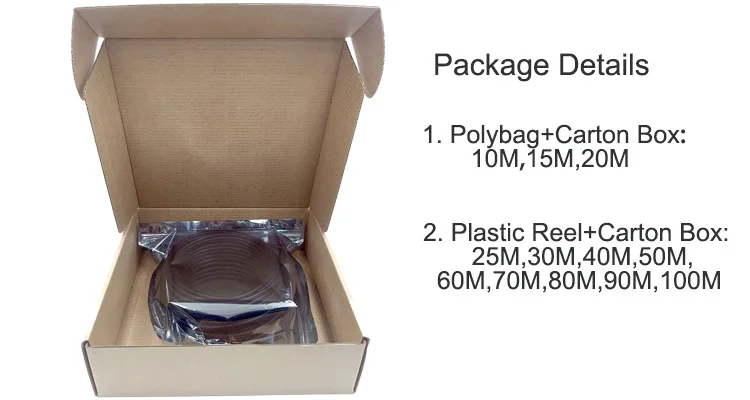

HDMI Package polybag+carton box, plastic Reel+carton box
Customized Service Customzied Brand Logo, customzied package,customzied cable length,OEM & ODM
Quality Pass SL881,MURIDEO professional testing devices.
Warranty 12Months
HDMI PREMIUM HIGH SPEED OPTICAL CABLES
1.Hybrid optical-copper cables provide high-speed transmission of HDMI digital video and audio signals. These ultra-thin cables, which conform to Premium High Speed HDMICable performance standards, support data rates up to 18 Gbps, and video resolutions up to 4K/60@ 4:4:4. Powered by the connected HDMI source device

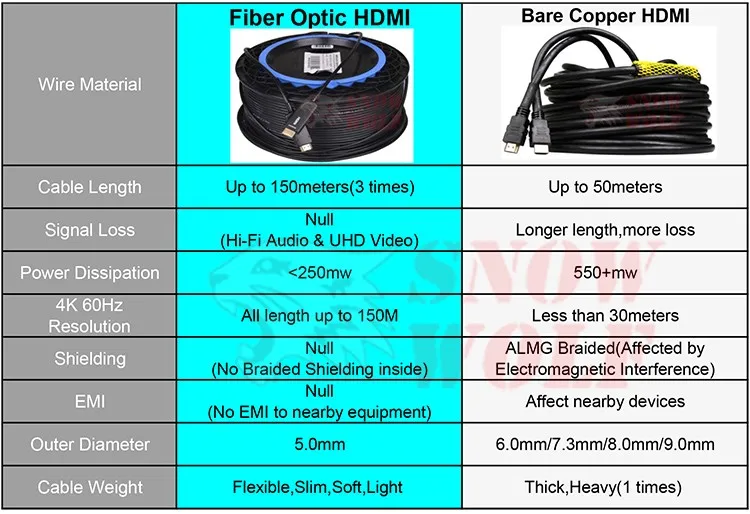

2.Fiber HDMI cable designed to connect two HDMI-enabled devices with high performance, low power consumption, and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, fiber optic HDMI can perfectly transmit 4K@60HZ UHD video over distances up to 100 meters. Compared with traditional copper wire cables, fiber HDMI is not only longer, softer, and slimmer, but also offers better signal quality without the need for external power.

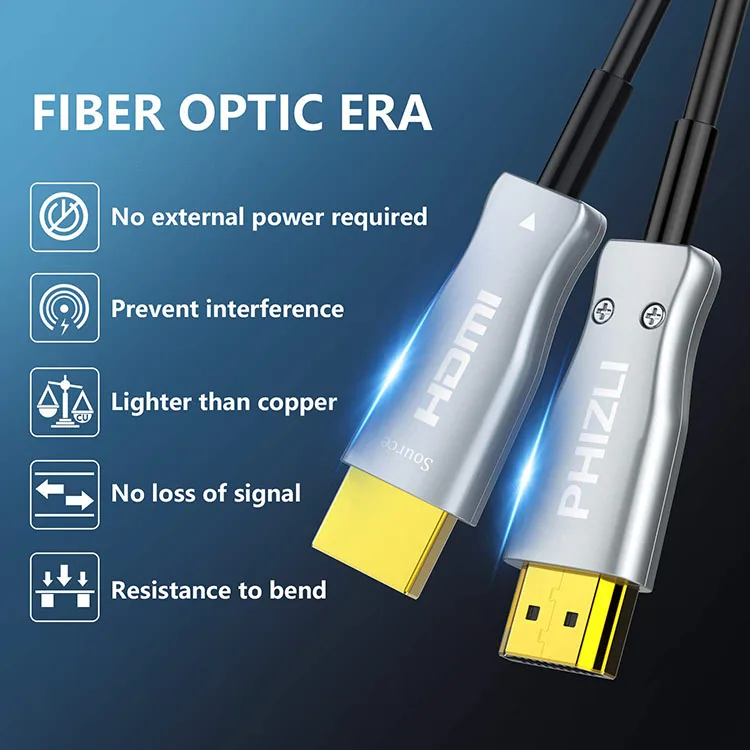

Features* Conforms to Premium High Speed HDMI Cable performance standards
* Supports data rates up to 18 Gbps, video resolutions up to 4K/60 @ 4:4:4, and HDR
* PCM 8‑channel, Dolby Digital True HD, DTS‑HD Master Audio support
* Supports EDID, HDCP, and CEC
* 4K/60 verifed
* Flexible, ultra‑thin 0.19" (5 mm) diameter cable
* Optical fiber cable provides high reliability HDMI signal transmission with 0% signal loss in high noise environments
* Highly resistant to EMI/RFI interference

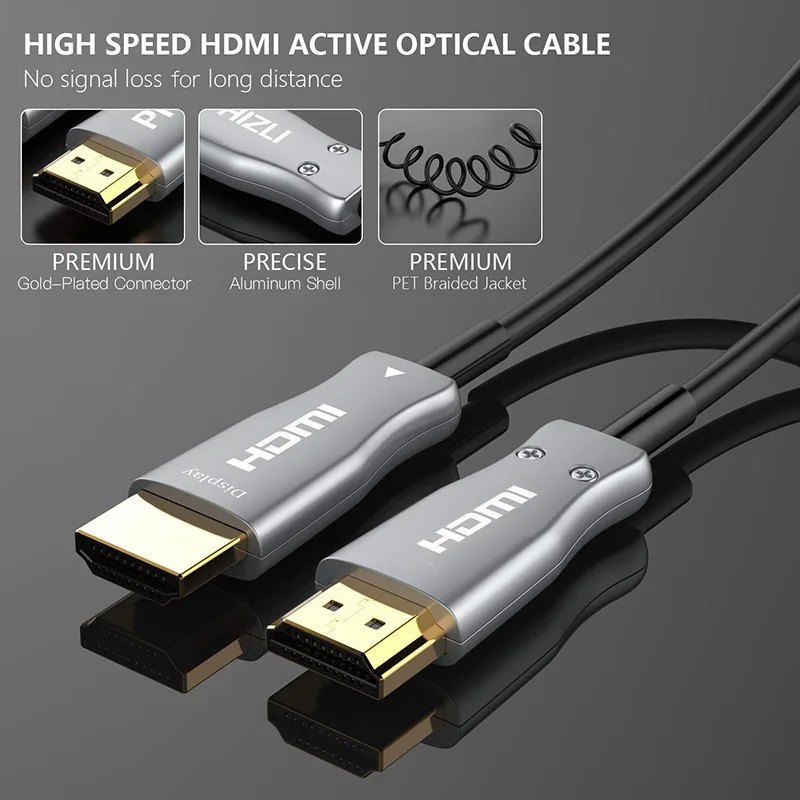

* Gold‑plated contacts
* Powered by your TV's HDMI port – No external power needed
* Available in lengths from 25 feet to 300 feet (10 meters to 100 meters)
* Flexible polymer optical fiber enables a tighter bend radius than traditional glass optical fiber cables
* Ultra light weight construction
Detailed Images
Application

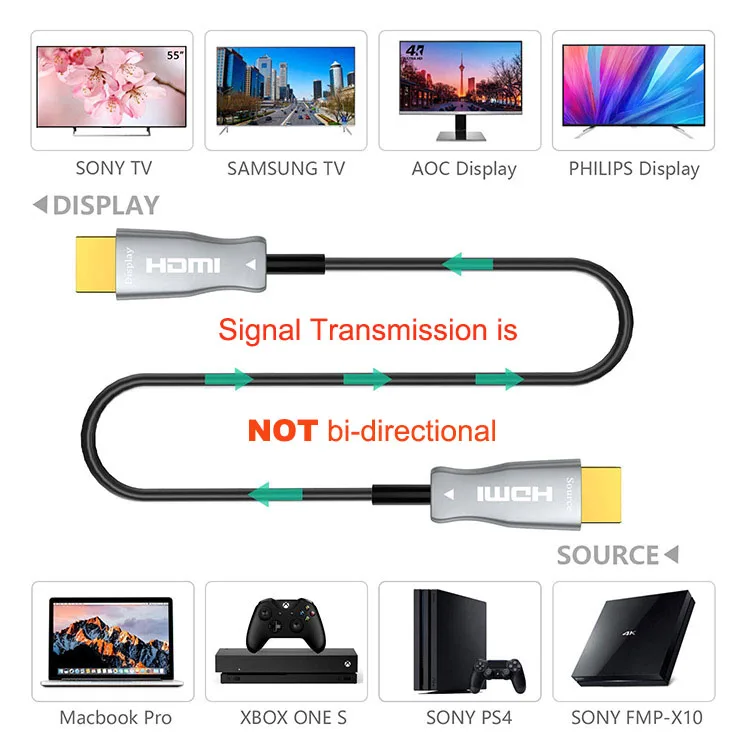

Note: HDMI Signal Transmission is unidirectional,please install it in correct direction. Please pay attention to the fiber optic cable source end connect to input devices, Display end connect to output devices, do not insert the reverse. If you need to wiring, it is recommended that you test this cable then installation.

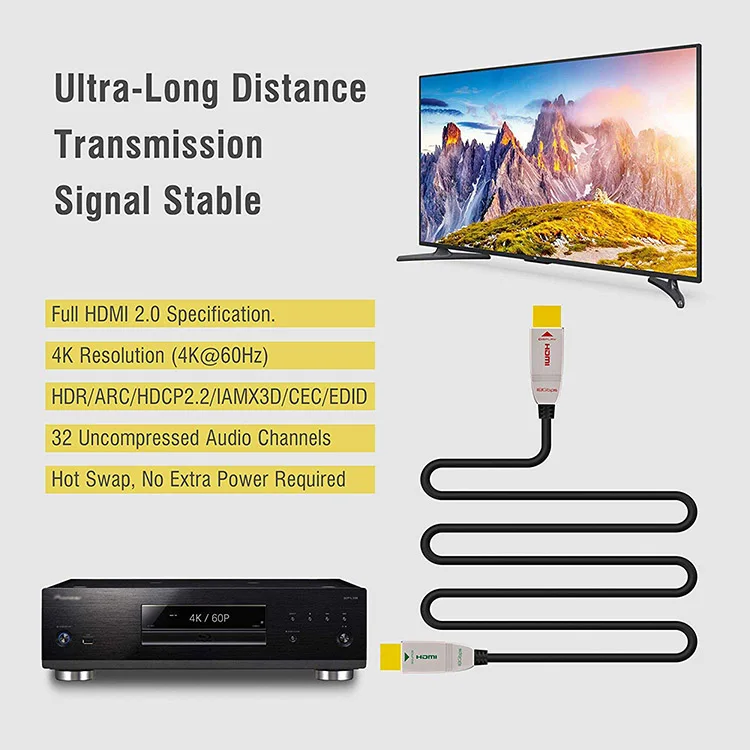

Source End: Connect toGame Console,Blu-ray Player,Security Camera,Set-top Box,TV Box,XBox 360, Playstation 4,Laptops;
Display End: HDTV,Monitor,Projector etc.Application:
*Home Theaters
*High Definition Video Conference Systems
*High Definition Video Surveillance Systems
*Digital Signage and TV Walls
*Churches and Schools
*Special Events
