lvds cable, Used for LCD/TV monitor;
very flexible,easy to fold;
Pitch=1.0mm;30PIN,any length;
Used for PC camera, PDVD and N/BPitch size: 0.5, 0.8, 1.0, 1.25 and 2.54mmCharacterized by compactness, high precision, stableness, portability, ultra-thin and sinuosity resistanceWidely used in stereo set, digital camera, video camera, on-vehicle stereo set, TV set, typewriter, calculator, cash register, phone set, CD-ROM, VCD, DVD, duplicator, printer, wireless instrumentation, video-audio devices and aerospace equipmentFeatures: low volume high precision and space save simple cable distribution and wiringNice flexibility and flexible
FFC apply to LVDS display Chapters
(1)the panle of LCD display : Divided by LCD MONITORs IC, there has 3 type:1.TTL (Transistor-Transistor Logic )
apply to :15" LCD Monitor and 15"LCD TV .
the cable is:different design of Panel ,will use FFC,FPC, Wire harness and so on;2.LVDS (Low Voltage Differential Signaling )
apply to :15"LCD Monitor,17" ,19" LCD Monitor,Notebook and so on;
the cable is:*LCD Monitor will use the Wire harness;
*Notebook will use the Micro Coaxial Cable,FPC and so on; *can use the special FFC to replace;
3.RSDS (Reduced Swing Differential Signaling )
apply to :15" and 17" more LCD Monitor.
the cable is :15" LCD Monitor will use the FFC HV8-50Pin 1pcs;

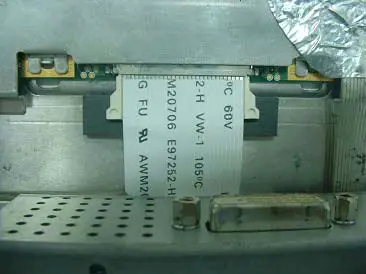

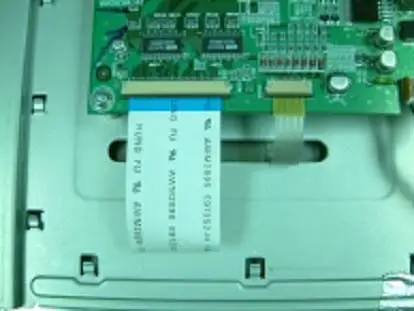

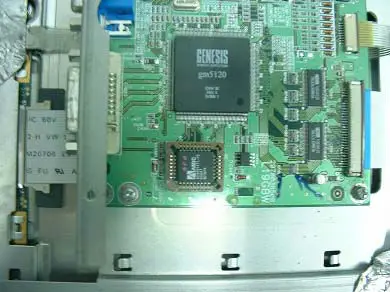

17" LCD Monitor will FFC HV8-50Pin and HV8-30Pin,each 1pcs; (2)wire harness cable apply to LVDS display commonly will illustrate the application by cable structure: 1.Panel side the one header of Wire harness cable is crimped by JAE FI-X30H,to connect with JAE FI-XB30S-HF10 connecotor of Panel; see the picture: 2.AD Board side other header of Wire harness is crimped by HIRSE DF14-30S-1.25C, to connect with DF14-30P-1.25H connectgor of AD Board; see the following pitcture:(3) how to change FFC to connect with Panel will add the plastic or iron part on FFC cable to match wth Panel side according the FI-XB30S-HF10 structure; (4) how to make the FFC connector to AD Board will change the AD board connector to FPC 1.0-30p connector to match FFC cable ; (5) the compare of FFC and Wire harness in application to LCD Advantage:cost down much; *easy to fold in limited room;
