SIZE
Pitch 0.3/0.5/0.8/1.0/1.25/2.54mm
Poles 2~150
Total Length Range 15-9999mm
Strip Length Range 2~10mm
Supporting Tape Length Range 3~10mm
MATERIAL
Conductor Copper Tin-plated/Gold-plating
Insulation Polyester(thickness:0.037/0.043/0.06/0.08/0.1mm)Colour:White/black
Supporting Polyester(thickness:0.160/0.200/0.225/0.250/0.282mm)Colour:Blue/whit
PACKAGE
Bag package 100Pcs/Bag

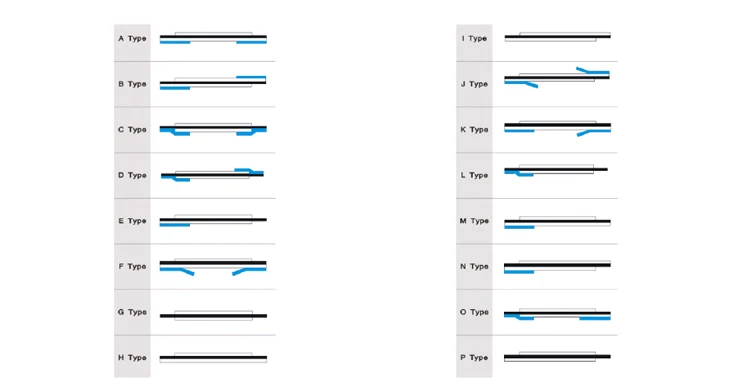

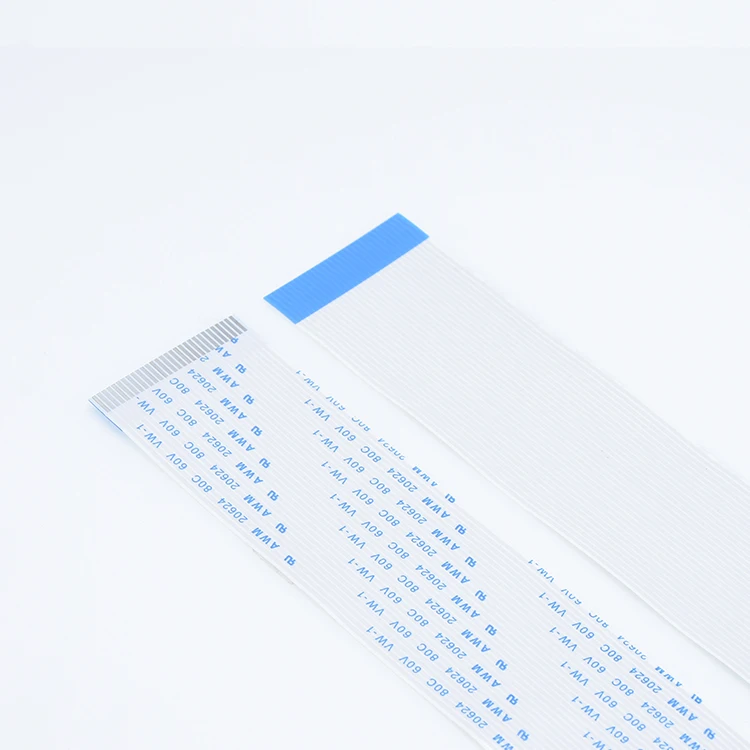

FFC Cable Type

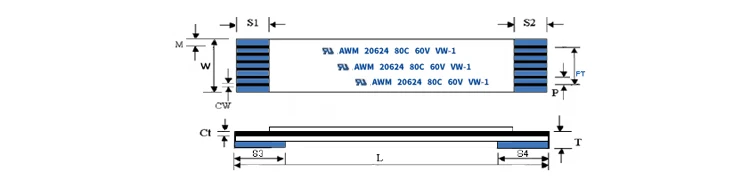

SPECIFCATION
Item Symbol Unit Spec
Pitch P mm 0.3
±0.05mm
0.5
±0.05mm
0.8
±0.08mm
1.0
±0.1mm
1.25
±0.1mm
2.54
±0.1mm
Poles N Pin 4~150 4~150 4~120 3~100 2~80 4~40
Cable Width W mm (N+1)×0.3
±0.08
(N+1)×0.5
±0.08
(N+1)×0.8
±0.08
(N+1)×1.0
±0.1
(N+1)×1.25
±0.15
(N+1)×2.54
±0.2
Span Pt mm (N-1)×0.3
±0.08
(N-1)×0.5
±0.08
(N-1)×0.8
±0.08
(N-1)×1.0
±0.08
(N-1)×1.25
±0.12
(N-1)×2.54
±0.15
Margin M mm N±0.08 N±0.08 N±0.08 N±0.1 N±0.12 N±0.15
Strip Length S1/S2 mm 2~10(2≤S<4 ±0.5; 4≤S<6 ±0.8; 6≤S±1)
Supporting Tape Length S3/S4 mm 3~10(S<8 ±1; 8≤S≤10 ±1.5; S>10 ±2
Cable Length L mm 15~9999
(L≤100±1.5;100<L≤200±2;200<L≤400±3;400<L≤800±8;L>800±1%)
Insert Thickness T mm 0.20~0.48±0.05(Routine0.30)
Conductor size
Thickness * width
Ct*Cw mm 0.035X0.16 0.10X0.3
0.05X0.3
0.035X0.3
0.10X0.5
0.05X0.5
0.10X0.5
0.05X0.5
0.05X0.65
0.035X0.65
0.10X0.8
0.05X0.8
0.035X0.8
0.10X0.8
0.05X1.27
N value is 2 to 150
CONDUCTOR RESISTANCE
Size(mm) 0.035*0.16 0.035*0.30 0.05*0.30 0.10*0.30 0.035*0.50 0.5*0.50 0.1*0.50 0.05*0.6
Resistance(Ω/m) ≤4.00 ≤2.00 ≤1.40 ≤0.70 ≤1.20 ≤0.84 ≤0.42 ≤0.70
Size(mm) 0.10*0.60 0.035*0.70 0.05*0.70 0.10*0.70 0.035*0.80 0.05*0.8 0.1*0.80 0.1*1.27
Resistance(Ω/m) ≤0.35 ≤0.85 ≤0.60 ≤0.30 ≤0.75 ≤0.52 ≤0.26 ≤0.11
