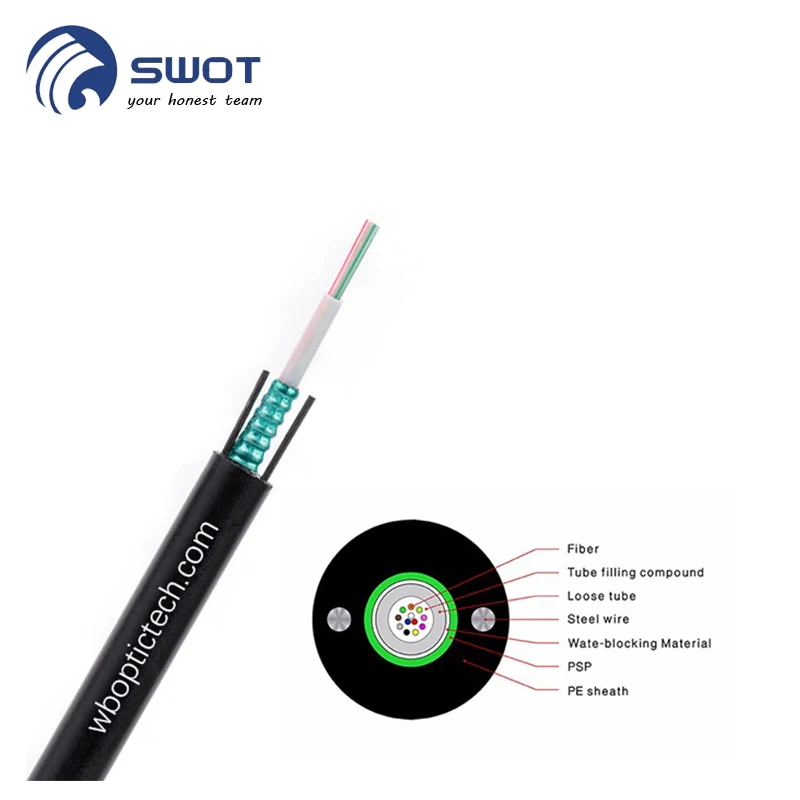

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. 2.The tubes are filled with a water-resistant filling compound.
3.The tube is wrapped with a layer of PSP longitudinally.
4.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
5.Two parallel steel wires are placed at the two sides of the steel tape.
6.The cable is completed with a polyethylene (PE) sheath.


Feature
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
Technical data
No. of cable
2~8
10~12
14~24
Fiber Model
G.652D
Strength Member
Material
Steel Wire
Diameter ±0.05mm
0.8
0.8
0.8
Loose Tube
Material
PBT
Diameter ±0.06mm
2.1
2.4
2.8
Thickness ±0.03mm
0.32
0.35
0.4
The Max.Core NO./Tube
8
12
24
Water Blocking layer Material
Water Blocking Tape
Armoring
Material
Steel Strip
Thickness ±0.03mm
0.25
Outer Sheath
Material
MDPE
Thickness ±0.2mm
2
Cable Diameter ±0.2mm
7.9
8.1
8.5
Cable Weight ±5kg/km
60
63
68
Min. bending radius
Without Tension
10.0×Cable -φ
Under Maximum Tension
20.0×Cable -φ
Temperature range
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

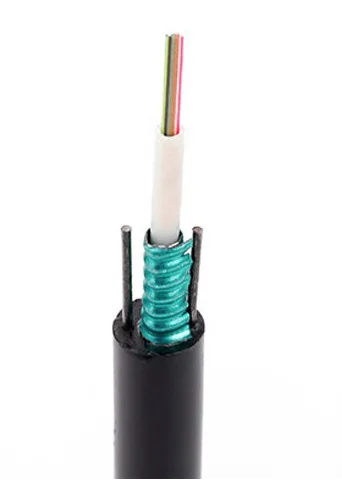

Product Picture


Application
