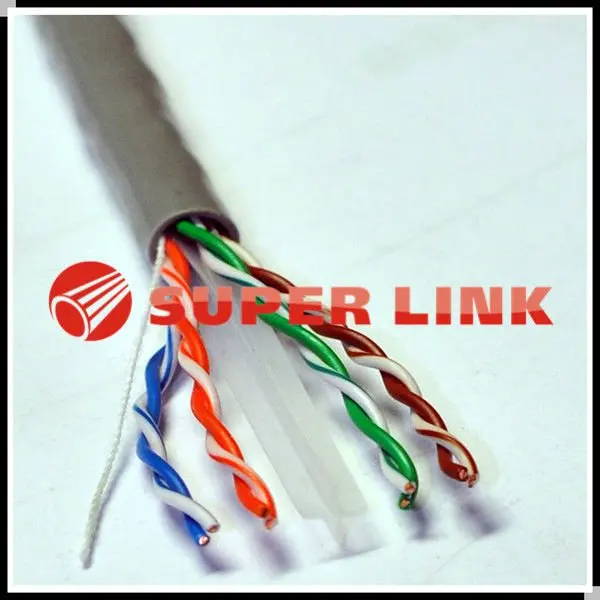

Factory FTP CAT6 Cable Lan Cable NETWORK CABLE
1.CE ROHS ISO Certification
2,CU/CCA/CCS Material
3.OEM Brand
4.Free Sample
Packing 305m
Wire size 4x2x0,57mm (23AWG)
Insulation PE, 1,05mm
Jacket PVC
Wire DC resistance 14Ω/100m
Capacitance 44pF/m
Impedance 100±10Ω
Velocity of propagation 0,69
Delay skew <40ns/100m
Weight N.W 14 kg
G.W 15 kg
Operating temperature -20°C - +60°C
Frequency Attenuation NEXT Ps-NEXT ELFEXT Ps-ELFEXT Return Loss
1MHz 1.9 dB/100m 72 dB 69 dB 68 dB 65 dB 20 dB
10MHz 5,9 dB/100m 65 dB 62 dB 53 dB 50 dB 23 dB
16MHz 7,5 dB/100m 61 dB 58 dB 48 dB 45 dB 26 dB
25MHz 9,3 dB/100m 55 dB 52 dB 45 dB 42 dB 25 dB
40MHz 12,1 dB/100m 53 dB 50 dB 42 dB 39 dB 23 dB
60MHz 14,8 dB/100m 52 dB 49 dB 35 dB 32 dB 22 dB
100MHz 19,3 dB/100m 50 dB 47 dB 31 dB 28 dB 22 dB
150MHz 23,6 dB/100m 43 dB 40 dB 28 dB 25 dB 19 dB
200MHz 27,5 dB/100m 40 dB 37 dB 24 dB 21 dB 18 dB
250MHz 30,6 dB/100m 38 dB 35 dB 21 dB 18 dB 18 dB
