Application range
1.Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
2.Food and beverage industry, especially for production and processing equipment of milk and meat products
3.Agricultural equipment
4.For indoor and outdoor use
5.In EMC-sensitive environments (electromagnetic compatibility)
Advantage
* Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications
* Resistant to contact with organic oils and the related emulsions as well as a multitude of plant, animal or synthetic-based greases and waxes
* Good resistance to ammonia compounds and bio-gases
* Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents
* Well-suited to steam cleaning


Product Features
1.Good chemical resistance to ester-based hydraulic fluids Ozone, UV and weather-resistant according to EN 50396 and HD 605 S2
2.Flexible down to -40C
3.Low-capacitance design
4.Number-coded cores

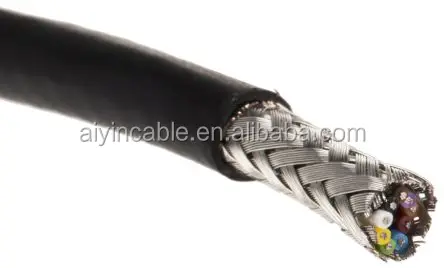

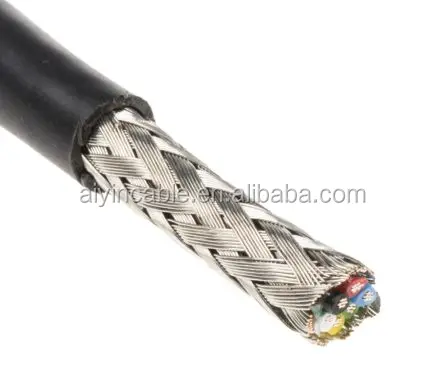

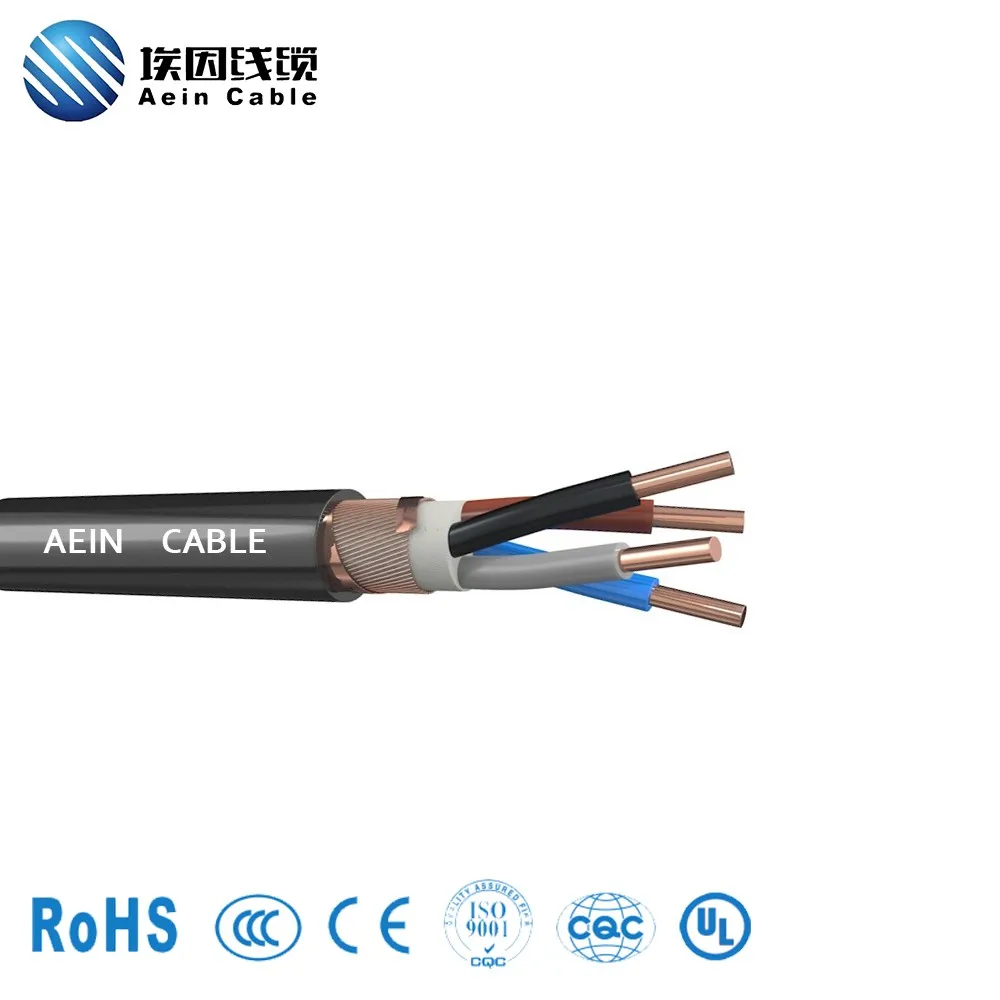

Product structure
1.Fine-wire, bare copper conductor2.Core insulation made of modified PP
3.Cores twisted in layers
4.Halogen-free plastic foil wrapping
5.Tinned copper screen braiding
6.Outer sheath made of special TPE
7.Sheath colour: black
8.Minimum bending radius
Occasional flexing: 20 x outer diameter
Fixed installation: 6 x outer diameter
9.Nominal voltage U0/U: 300/500 V
10.Test voltage
Core/core: 4000 V
Core/screen: 2000 V
11.Protective conductor
G = with GN-YE protective conductor
X = without protective conductor
12.Temperature range
Occasional flexing: -40C to +80C
Fixed installation: -50C to +80C

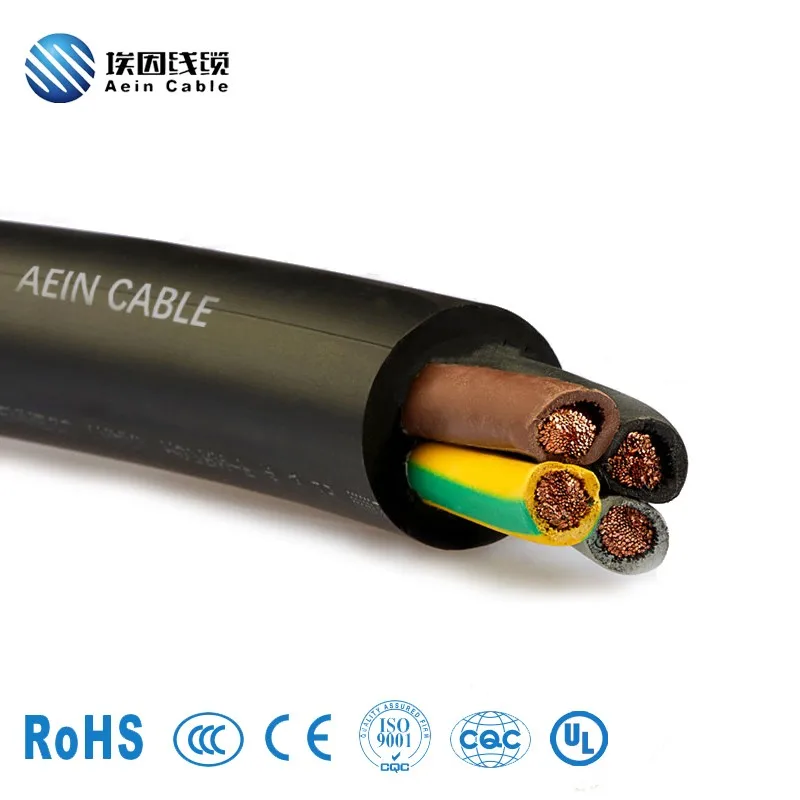

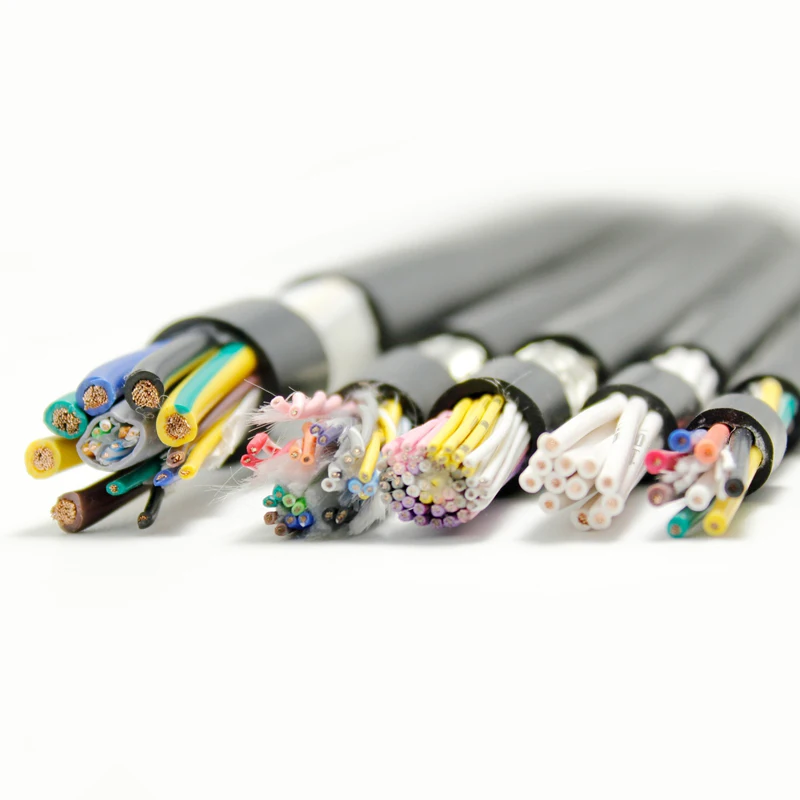

Detailed Images
