EURORACK Modular Din Sync 5-pin din cable 3.5mm Cable
MIDI Adapter – Male 3.5mm TRS to Female 5 pin DIN

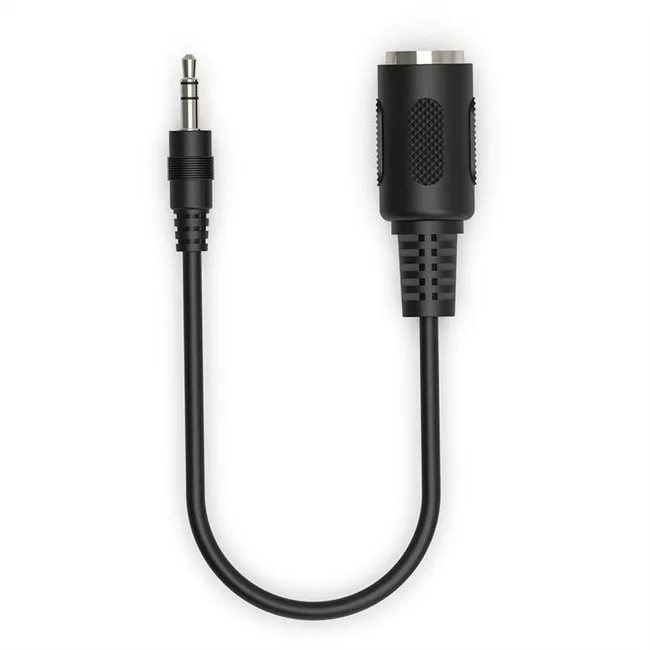

The MIDI adapter has a male 3.5mm TRS minijack at one end, and a female 5 pin DIN MIDI connector on the other end, 15cm long of the cable and 24cm including the plugs.
MIDI breakout cables
MIDI to TRS Adapter Cable
TRS Cable 3.5 - MIDI break out cable
MIDI To 3.5mm Stereo Jack Cable
MIDI to TRS Adapter Cable
MIDI Adapter is an male 3.5mm TRS to female MIDI 5-pin DIN cable
MIDI Adapter Cable Features:
3.5mm male TRS to female MIDI 5-pin DIN adapter
Lets you connect a standard MIDI cable to TRS MIDI port
15cm cable is flexible and made to last with high-quality materials
So long as you have two pieces of gear wired this way, you can connect them with a standard stereo minijack audio cable (thats a single stereo minijack at both ends). Its exactly the same as using a MIDI cable.
In the past few years MIDI hardware products have become smaller and smaller especially as many of them are meant to be used with mobile computing devices. But this has caused some issues as 5 Pin DIN MIDI plugs are pretty big. No one wants an accessory thats 10 times the size of the smartphone it connects to ! So recently many products have used a stereo 3.5mm minijack connector on the product itself with a breakout cable to standard 5 Pin DIN MIDI connector.
The standard MIDI DIN cable – thats the big honkin connector you use on most of your MIDI gear – has become the bane of music hardware makers. The problem is, as gear has gotten smaller, the standard DIN connector hasnt. And thats a big problem, literally. To add a MIDI port to a device, you need to not only have enough clearance for the connector itself, but the whole around the port and the physical assembly that contains it. Speaking as a hardware maker, that takes up space you cant even see from the outside.
As a result, a lot of hardware that should have had MIDI in and out doesnt, to save room. Or its forced to be thicker than it needs to be. Or it squeezes out other useful ports.
To be clear,on devices that can fit a MIDI DIN, it still makes sense. Its a standard part, youve got the cables, youve got things to plug it into, and the connector is safe to use. But if it simply wont fit, something else is a must. And thats why other connectors are already shipping on gear. Imagine if they were all interoperable.
It doesnt have to be this way. S-Video could have become a replacement in the 90s, back when we used such things. (Its actually also a DIN connector, with a more-than-enough 4-pin arrangement, but its smaller.)
Now, you may have noticed a lot of gear includes mini jacks onboard. A stereo minijack (3.5mm "miniklinken") connector has three pins – and MIDI also has three pins. (Okay, it has five, but two are unused.) Look at the breakouts included in the box, and what youll see is a standard 3-pin stereo minijack on one end, and then a standard 5 Pin DIN connector on the other.
But heres where things get interesting. Imagine you have two pieces of gear, each with these minijack-to-DIN breakouts. And you want to connect them together. What would happen if you skipped the little DIN dongles and ran an ordinary stereo mini jack cable between them?
Well, whether it worked or not would depend on how that minijack connector itself was wired. So, I asked a few manufacturers, off the record and unofficially, what they were doing. It wasnt hard to convince people to talk about it; anyone who has ever dealt with this problem dreams of ditching DIN.
Item EURORACK Modular Din Sync 5-pin din cable 3.5mm Cable
Place of Origin Guangdong China (Mainland)
Color Black
Length 15cm, 30cm
Packing PE bag or customize
MOQ 1000pcs per one color (cable lengths can be mixed)
Sample Free samples , 2-3 days after confirmed
Production Time Within 10-11 working days, it depends on the quantity
Payment terms Alibaba Trade Assurance, T/T, Western Union, Paypal
Shipping Express door to door service: DHL, UPS, TNT, FedEx, about 5-7 days to delivery
Logo Branding Logo is welcome

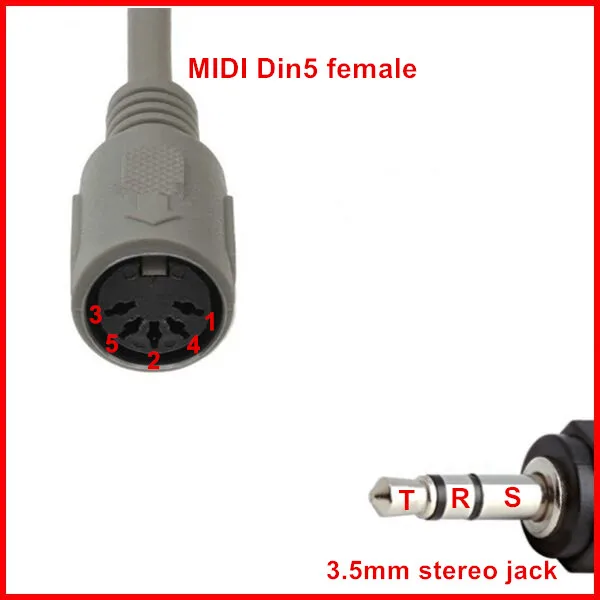

Types of wiring pinout – seen below, please check which type pinout you want.

Also you can specify a different pinout for this part with following:

Detailed Images
