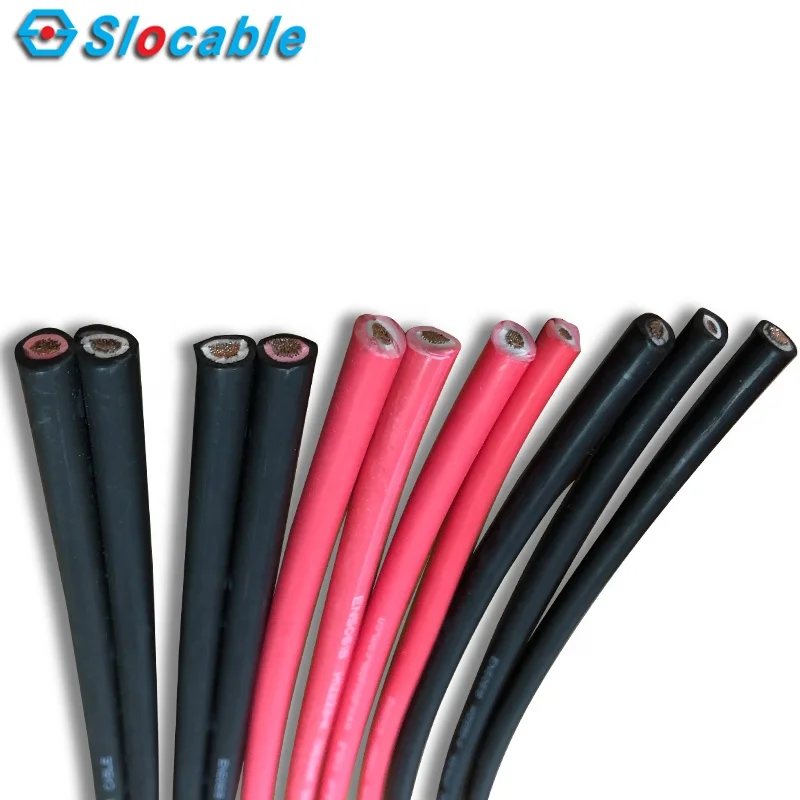

Double Cores 4mm Cable PV1f Solar Cable for Photovoltaic System
Advantages of Double Cores 4mm Cable
1. Dual wall insulation. Electron beam cross-linked
2. Excellent resistance to U.V, oil, greases, oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. CE TUV approved
Technical Data of Double Cores 4mm Cable

TYPE
Cross Section
Wire Strand
Conductor Diameter
Outer Diameter
Conductor Resistance
Rated Voltage
Rated Current
mm2
No.OD (mm)
mm
mm
Ω/Km
V DC
A
2X2.5mm2
2.5
48XΦ0.25
2.0
6.2*9.90
8.06
1500
30
2X4.0mm2
4.0
56XΦ0.30
2.6
6.9*11.30
4.97
1500
50
2X6.0mm2
6.0
81XΦ0.30
3.3
7.1*14.50
3.52
1500
70
We also produce single core solar cables of 2.5mm2, 4mm2, 6mm2 and 10mm2,
as well as solar Connectors, please consult me if necessary.
Double Cores 4mm Cable:
Certificate
CE TUV
Wire
Copper (Class5, tinned)
Insulation Material
XLPE
Rated Voltage
1500V DC
Cores
2 cores
Standard
TUV 2PfG 1169
Temperature Range
-40 ~ +90°C
Flame Test Standard
DIN EN50265-2-1 UL 1571(VW-1).
Smallest Permissible Bending Radius
5*D
Colors of Double Cores 4mm Cable
Black
Packing of Double Cores 4mm Cable
100 meter/roll for small size, wooden drum for big size,
or as per requirement
Delivery Time
3-7 days
Application of Double Cores 4mm cable
These cables are used for solar power plant,
solar energy power station.
