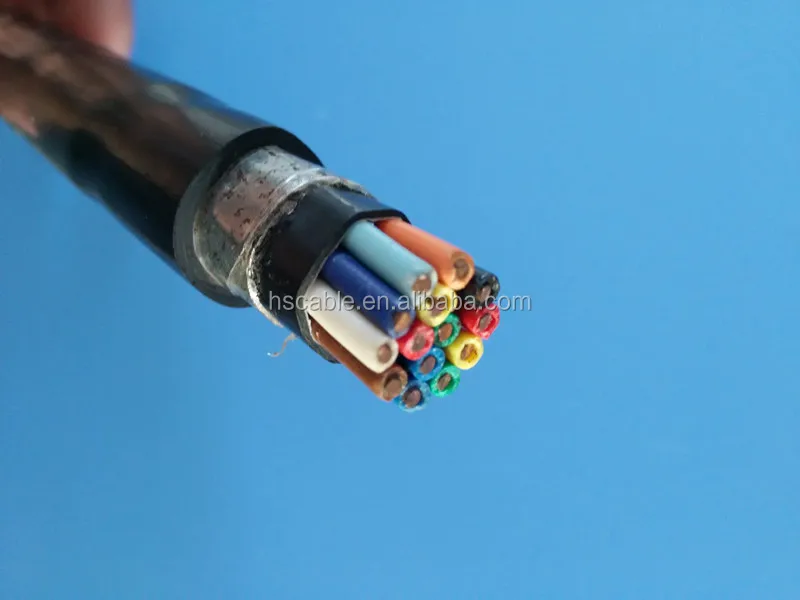

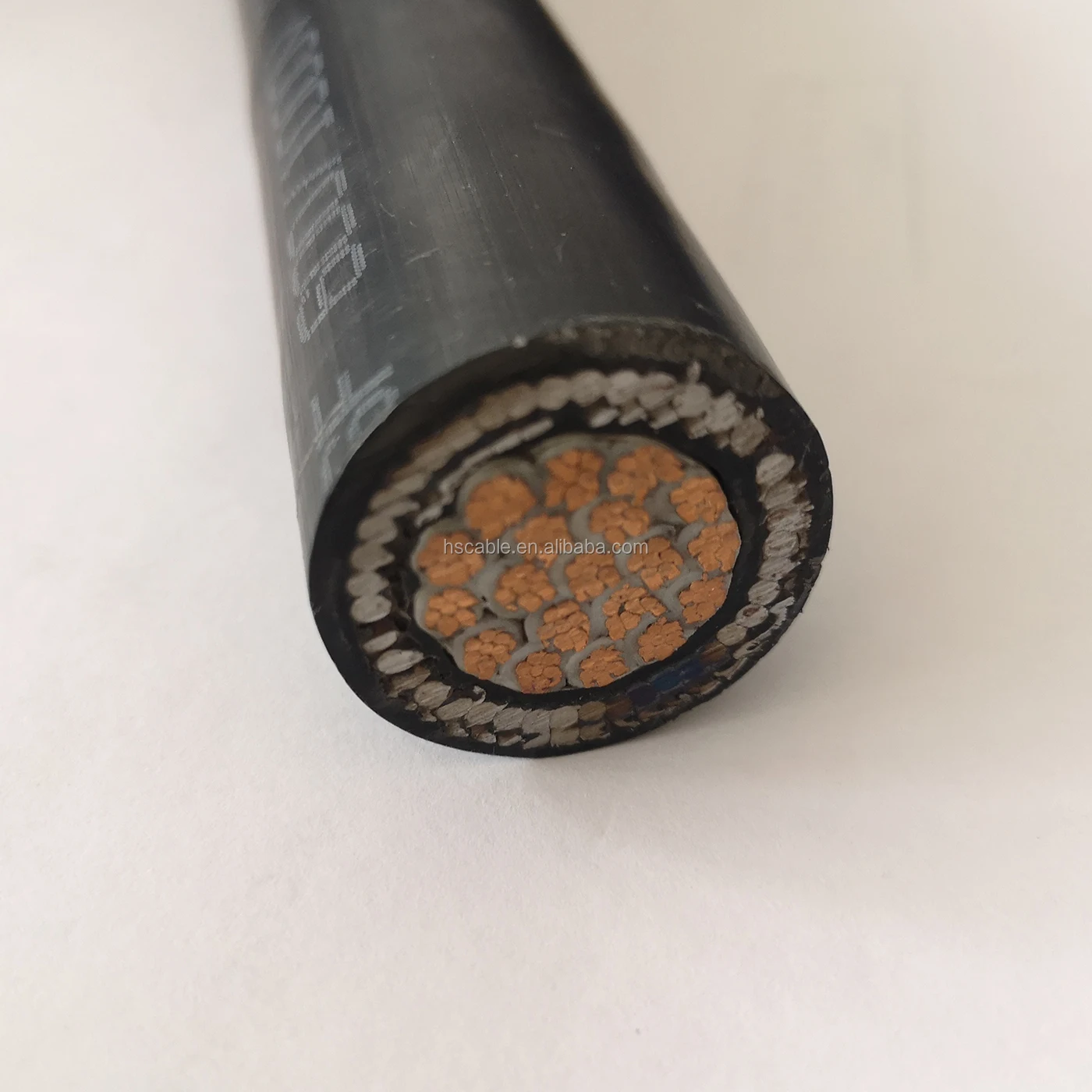

Control Cable PVC/SWA/PVC 2.5mm2 x 12 Cores for Control System and 175MVA 330/132/11KV Transformer
1). Standard: the control cable can be produced according to the standard IEC60502(GB9330-1988), and the factory can also manufacture the cable in accordance with other standards.
2). Application: the control cable are suitable for the wiring of electrical controlling equipment and instrument, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 600/1000V
3). Control cable series including:
* KVV: copper conductor, PVC insulated and PVC sheathed control cable
* KVVP: copper conductor, PVC insulated and PVC sheathed, braided copper wire screened control cable
* KVVP2: copper conductor, PVC insulated and PVC sheathed, copper tape screened control cable
* KVV22: copper conductor, PVC insulated and PVC sheathed, steel tape armoured control cable
* KVVR: Flexible copper conductor, PVC insulated and PVC sheathed control cable
* KVVRP: Flexible copper conductor, PVC insulated and PVC sheathed, braid copper wire screened control cable
* KVVP-22: copper conductor, PVC insulated and PVC sheathed, braid copper wire screened, steel tape armoured control cable
* KVVP2-22: copper conductor, PVC insulated and PVC sheathed, copper tape screened, steel tape armoured control cable
CONDUCTOR AREA SIZE
MM2
0.5
0.5
0.75
1
1.5
Conductor Stranding
No. x mm
1 x 0.8
16 x 0.2
24 x 0.2
1 x 1.13
7 x 0.53
Conductor resistance max
ohm/km
36.8
39.7
26.5
18.2
12.3





...
