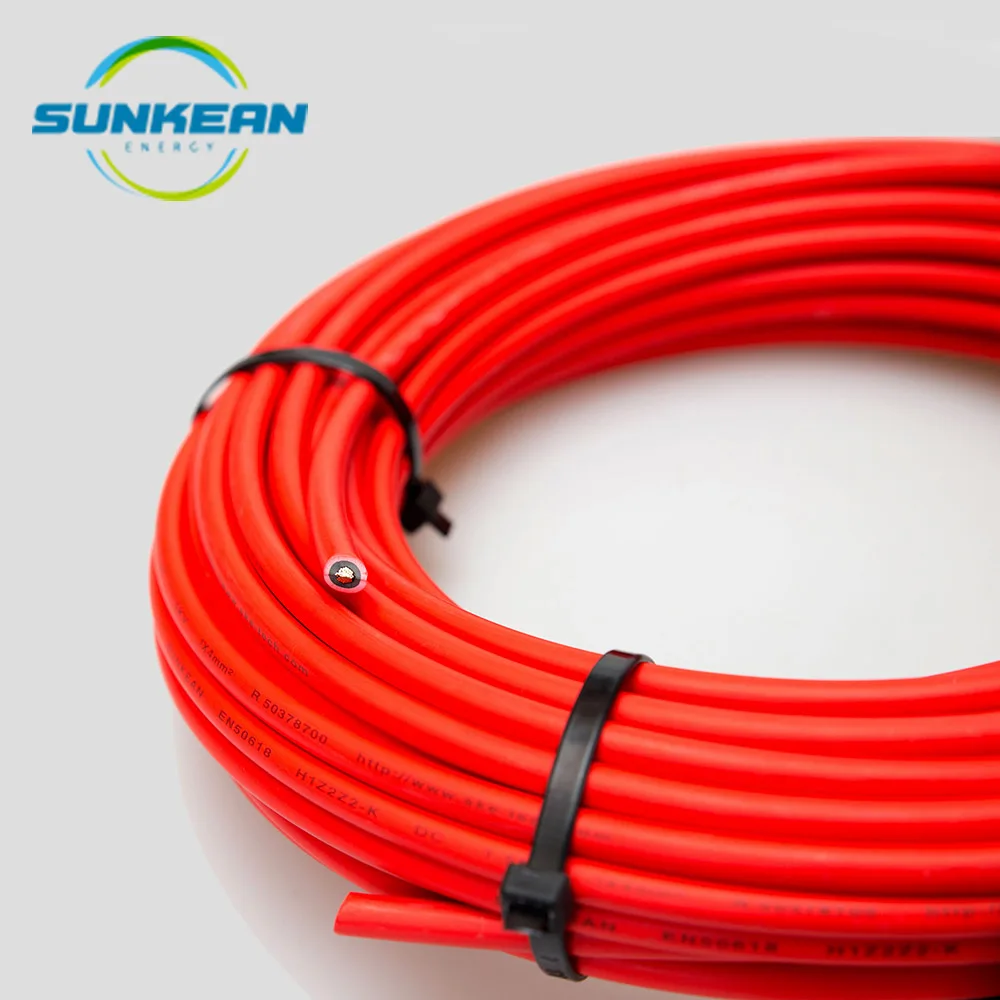

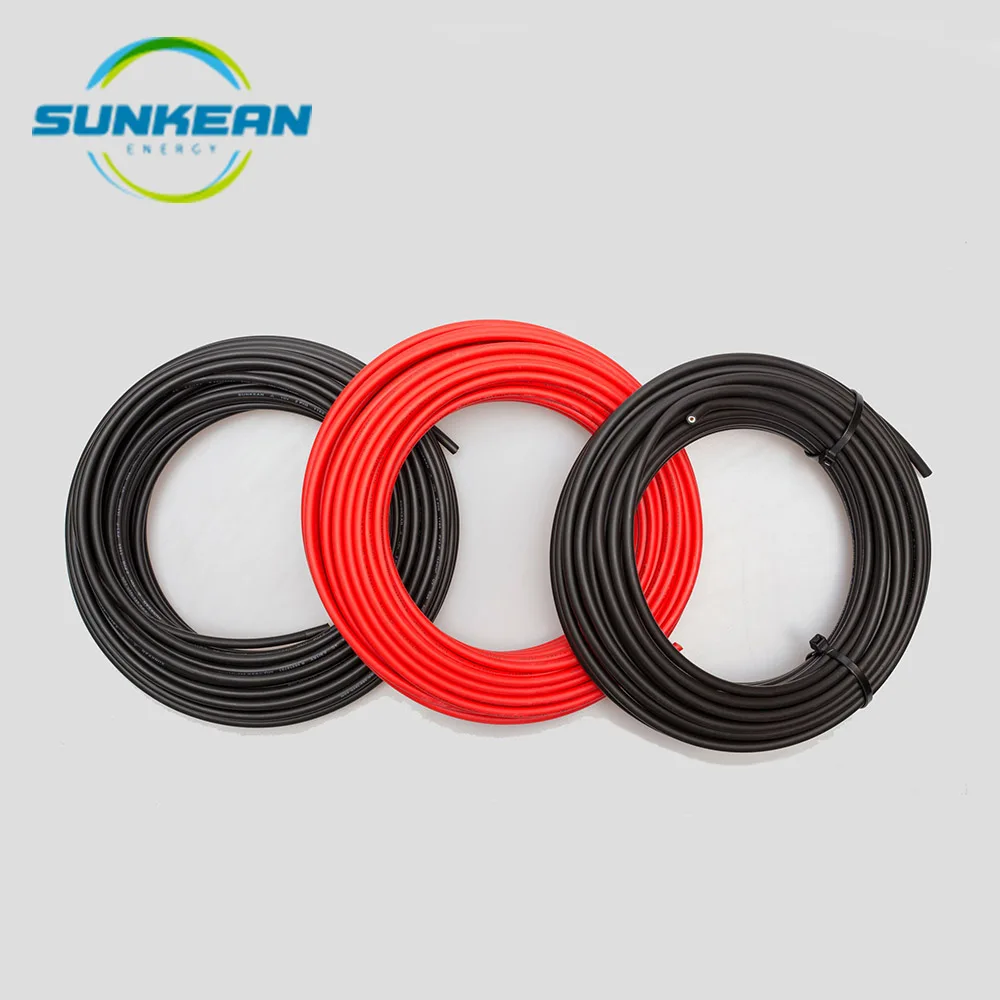

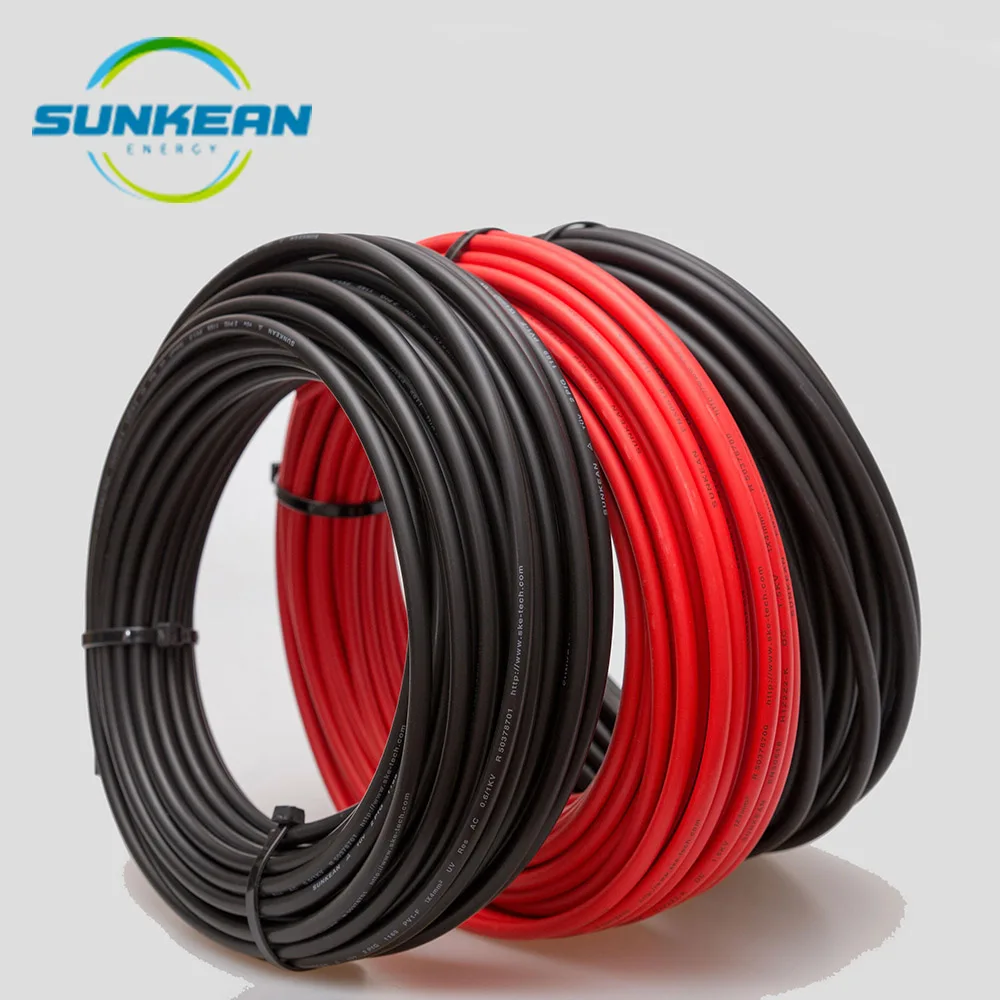

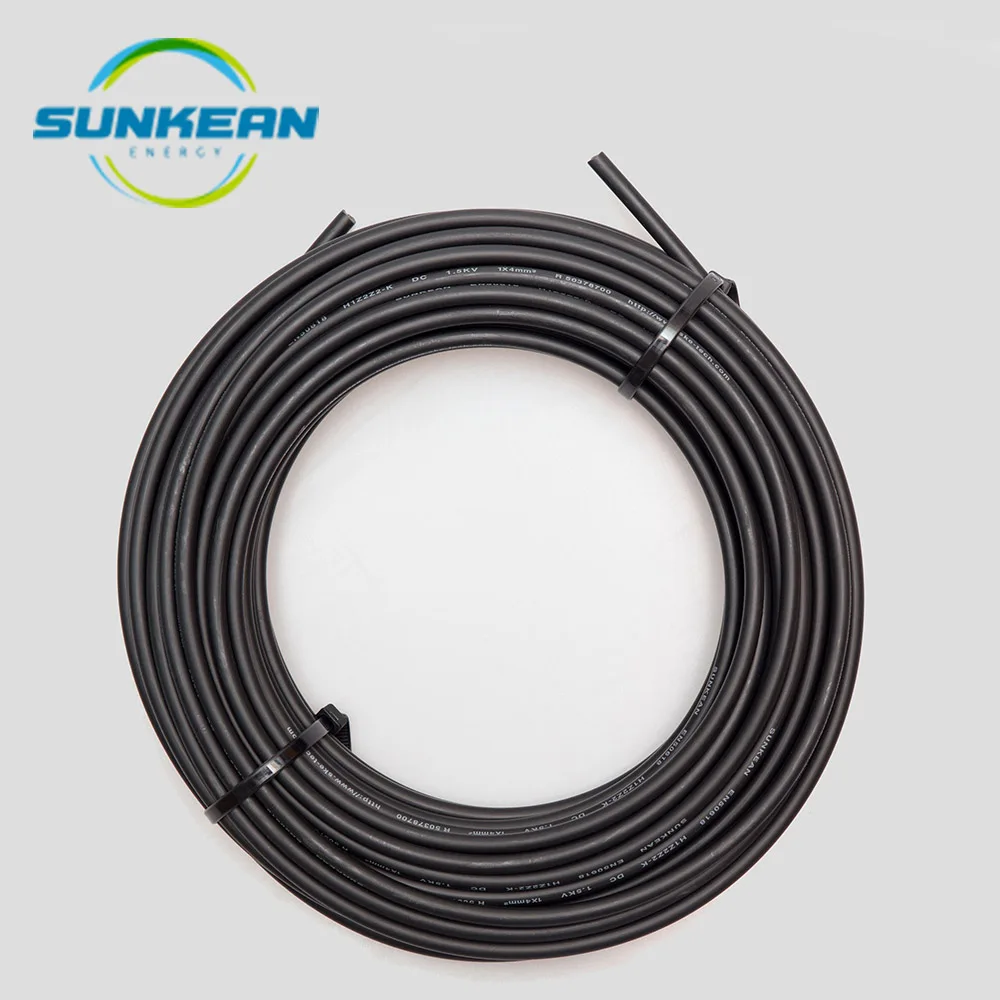

Chinese supplier h1z2z2k solar cable tuv 1500v for solar cable system
Applications:
Is used as photovoltaic cable between solar modules and inverters in a photovoltaic system with a rated vale
U0=1.5 kVDC
Advantages:
EN50618 Approval
Electron -beam cross-linked compounds
UV,ozone and hydrolysis resistant
High temperature resistance, the material do not melt or folow
Good cold flexibility
Very long service lif>25 years at 90
Compatible to all popular connectors





High quality solar panel electric cable dc solar cable 4mm sq
1.Electron-beam cross-linked compounds
2.UV, ozone and hydrolysis resistant
3.High temperature resistant, the materials do not melt or flow
4.Good cold flexibility
5.Very long service life > 25 years at 90C
6.Compatible to all popular connectors






Brand Name
SUNKEAN
Model Number
SKE-EN
Test Voltage
6500VAC/5 min
Insulation Material
XLPE
Minimum Bending Radius
Ø≤12mm 4 x overall diameter
Ø>12mm 10 x overall diameter
Smoke Density Test
Transmittance≥60% EN50618
Max. Conductor Temp
+120
Jacket
XLPE
Voltage Rating
1500V
Cold Bending Test
-40C±2C no crack EN60811-504
Certification
EN50618 H1Z2Z2-K
Short Circuit
+250

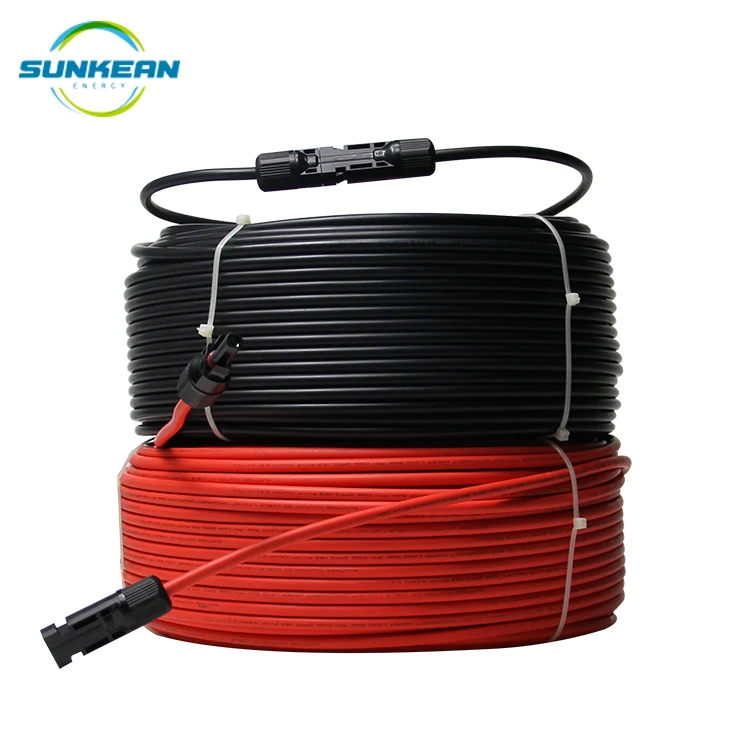

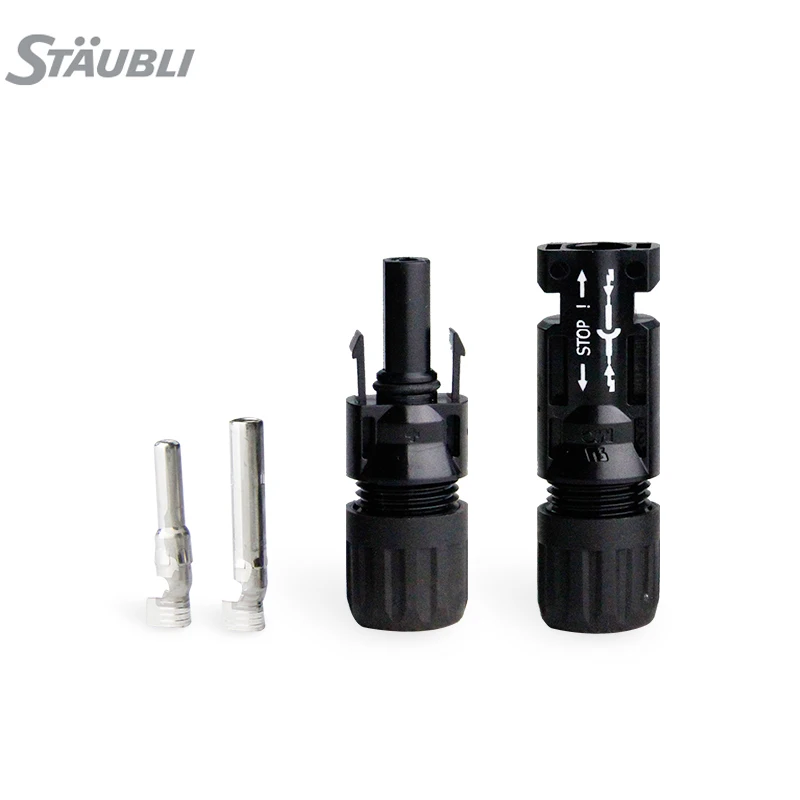

MC4 solarConnector Solar Panel Extension Cable
