Chinese 1310 1550 1625nm FTTH SM MM Jdsu Smart Handheld Otdr Tester Machine Price With Vfl

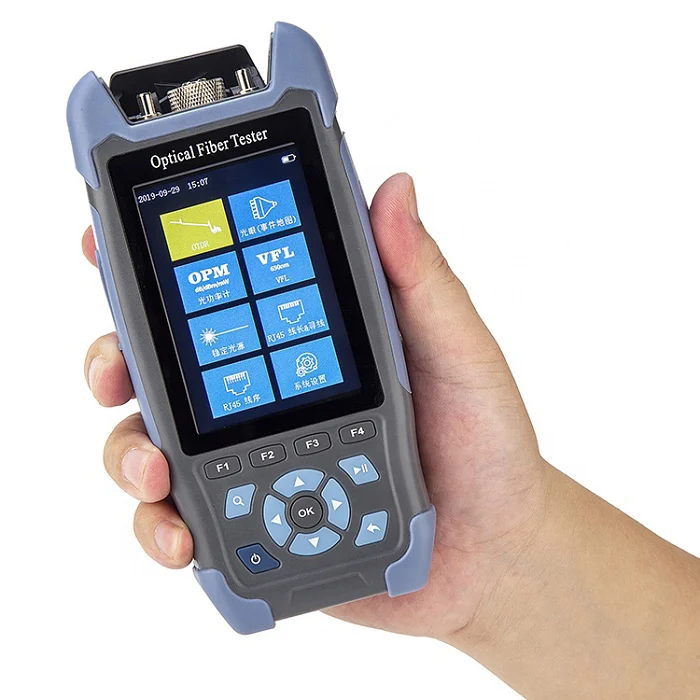

RZ320 handed OTDR is a unique mainly designed for construction and maintenance of tele-communication and CATV networks,It can be widely used in engineering construct!on,maintenance test and emergency repair of all fiber optics related systems. Comparing with regular OTDR,it is more compact in size and easier for field use.
Technical Specification
Mini-Pro OTDR
Model
RZ320
Wavele ngth
1550nm±20nm
131 Onm/1550nm±20nm
Fiber Type
Singlemode
Dynamic Range
22dB
24dB/22dB
Test Range
500m~60km
Ranging accuracy
±(1m+ Sampling interval +0.005%xTest distance)
Loss accuracy
±0.05dB/dB
Sampling Points
16k~128k
Frequency Identification
CW/270/330/1k/2kHz
Calibration wavelength
850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type
FP-LD
Wavele ngth
1550nm±20nm 1310nm/1550nm±20nm
Output Power
>-5dBm
Modulation Frequency
270/330/1 k/2kHz
Stability
CW,±0.5dB/15min
(Test after 15 minutes of preheating)

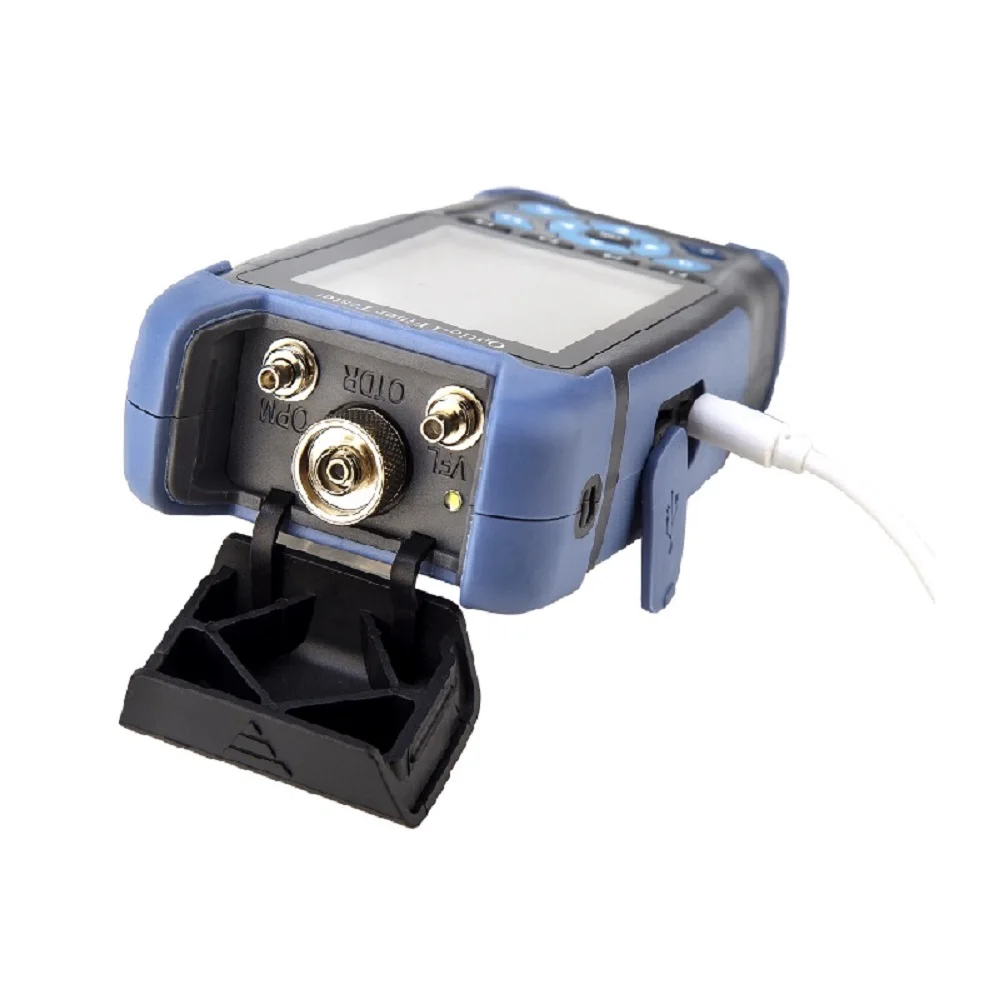

Connector
FC/UPC(lnterchangeable SC,ST)
VFL
Wavelength
650nm±20nm
Output Power
>10mW
Mode
CW/1Hz/2Hz
Connector
FC/SC/ST
RJ45 Cable Length Measurement
Test Range
300m
Other Parameters
Display
3.5 inch Color LCD
Data Interface
Micro USB
External storage
TF Card
Powe r Supply
Polymer Li-Battery:3.7V,4000mAh
Adapter: 5VDC.2A
Battery Life
Standby>20h;Measuring time>12h
Operating Temperature
-10°C~+50°C
Storage T emperature
-40°C~+70°C
Relative Humidity
0~95%Non Condensing
Weight
<350g

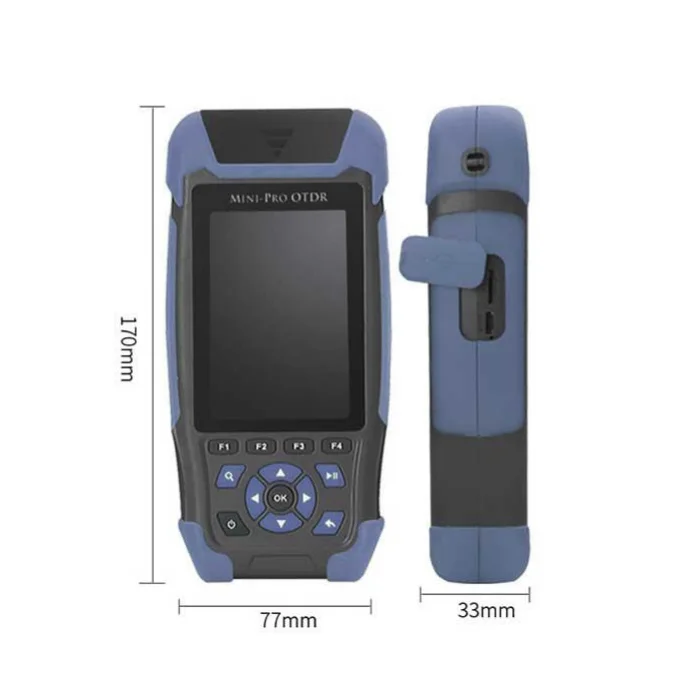

Size
173mmx82mmx37mm
