Product Description
C
hangbao Manufacture 305m Pull Box 4 pair 23AWG Solid Bare Copper U/UTP Lan Cat 6 Cable Ethernet Network
Features
* Cat6 UTP Twisted Pair Cable
* Pass FLUKE Test High Performance Computer Networking Cable
* Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
* Digital Communication Applications of up to 550MHz Bandwidth
* Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
* Tangle Free Reelex and Colorful Easy Pull Box Packing with No Extra Charge
* CE / ISO / RoHS Approved, PVC Jacket Use Indoors
* ETL CMX / CM / CMG / CMR / CMP Rated Are Available

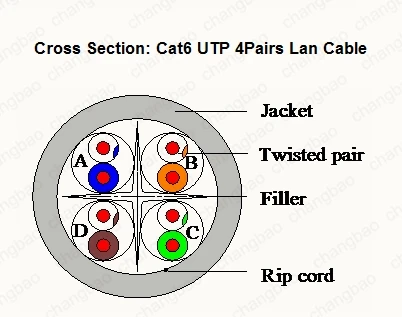

Cross Section
| Construction Characters | | |
| Conductor | Material | Solid Bare Copper |
| Size | 23AWG X 4P |
| Construction | 1/0.57±0.005mm |
| Insulation | Material | HDPE |
| Diameter | 1.01±0.01mm |
| Colors | Blue-White/Blue |
| | Orange-White/Orange |
| | Green-White/Green |
| | Brown-White/Brown |
| Filler | Filler | PVC |
| Jacket | Material | PVC |
| Diameter | 6.00±0.20mm |
| Colors | Per request |
| Rip Cord | Nylon |
| Electrical & Physical Characters | | | |
| Rating | | | 75 30V |
| Conductor Resistance | | | Max 78.8ohm/km at 20 |
| Dielectric Strength | | | Min AC1.5KV |
| Spark Test | | | 5.0KV |
| AC Leakage Current Through overall Jacket | | | AC 1500V<=10mA |
| Insulation | Unaged | Tensile Strength | 16.5 Mpa |
| | Elongation | 500% |
| Aged | Tensile Strength | 14.2 Mpa(100 168h) |
| | Elongation | 250%(100 168h) |
| Jacket | Unaged | Tensile Strength | 13.8 Mpa |
| | Elongation | 150% |
| Aged | Tensile Strength | 11.7 Mpa(100 168h) |
| | Elongation | 80%(100 168h) |
| Cold Bend Test | | | -20 4hours No Cracking |
| DC Resistance Unbalance | | | Max 5% |
| Pair-to-Ground Capacitance Unbalance | | | Max 3300pF/km |
| Characteristic Impedance | | | 1~500MHZ 100±15OHM |
| Propagation Delay | | | 500MHZ Max 536ns/100m |
| Delay Skew | | | 1~500MHZ Max 40ns/100m |
