Product Description

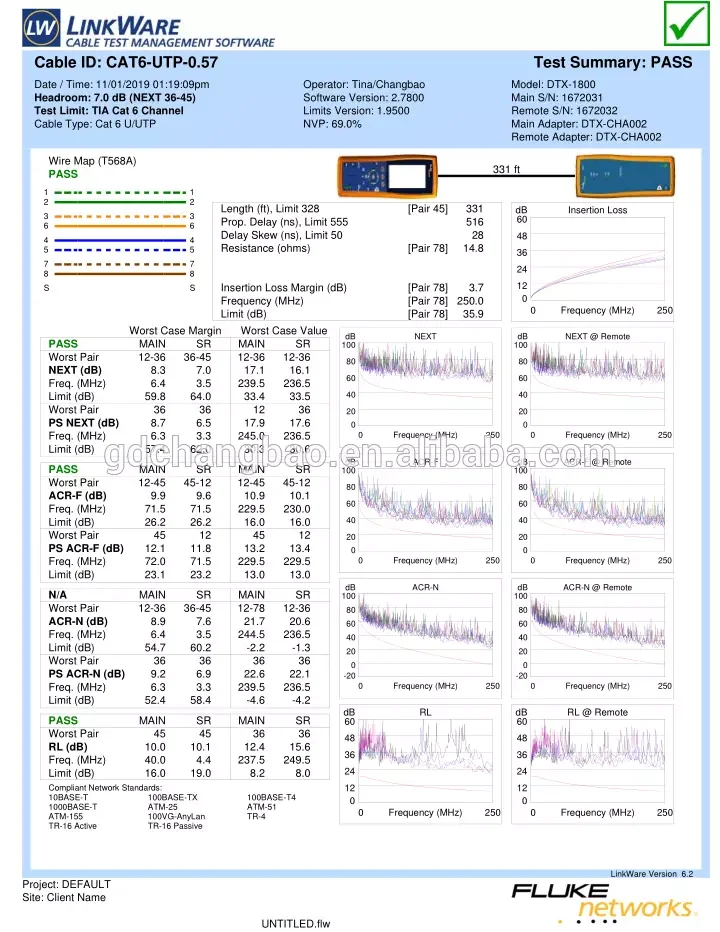

| Construction Characters | ||
| Conductor | Conductor | Solid Bare Copper |
| AWG | 23AWGx4P | |
| Conductor Dia. (mm) | 0.57 | |
| Insulation | Insulation | PE |
| Insulation Dia.(±0.01mm) | 1.02 | |
| Jacket | Jacket Material | LLDPE |
| Outer Dia.(±0.20mm) | 8.20X2.60 | |
Others | Separator | LDPE |
| Filler | Gel | |
| Pe-tape | Yes | |
| Drain wire (TC) | 0.40 | |
| Al-foil | Yes | |
| Messenger(galvanize steel) Dia.(mm) | 1.30 | |
| Rip Cord | Nylon |
| Electrical & Physical Characters | |||
| Rating | 75 30V | ||
| Conductor Resistance | Max 78.8ohm/km at 20 | ||
| Dielectric Strength | Min AC1.5KV | ||
| Spark Test | 5.0KV | ||
| AC Leakage Current Through overall Jacket | AC 1500V<=10mA | ||
| Insulation | Unaged | Tensile Strength | 16.5 Mpa |
| Elongation | 500% | ||
| Aged | Tensile Strength | 14.2 Mpa(100 168h) | |
| Elongation | 250%(100 168h) | ||
| Jacket | Unaged | Tensile Strength | 13.8 Mpa |
| Elongation | 150% | ||
| Aged | Tensile Strength | 11.7 Mpa(100 168h) | |
| Elongation | 80%(100 168h) | ||
| Cold Bend Test | -20 4hours No Cracking | ||
| DC Resistance Unbalance | Max 5% | ||
| Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | ||
| Characteristic Impedance | 1~500MHZ 100±15OHM | ||
| Propagation Delay | 500MHZ Max 536ns/100m | ||
| Delay Skew | 1~500MHZ Max 40ns/100m |
