Best Selling 12x1.5MM hoist 300V Shielded Flexible Cable Control Cable with CE CCC ISO
Application of Flexible Control Cable:
Copper Conductor PVC Insulated and Sheathed Control cable is used for control, loop control & line protection when the rated voltage is 450/750 or less.
Standards of Flexible Control Cable: IEC502, IEC332-3

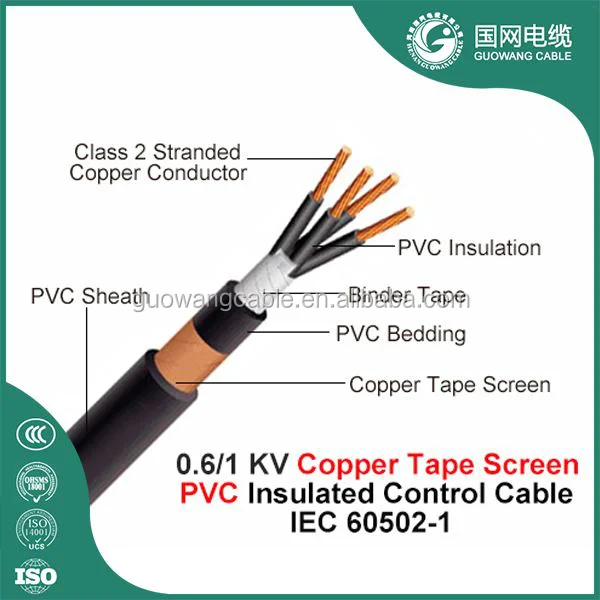

Struction of Flexible Control Cable:
Conductor: Cu
Insulation: PVC ( polyvinyl chloride )
Sheath: PVC (polyvinyl chloride)
Sheath Color: Black or Gray (Bespoke cable)
Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 90°C
Type& Specification of Flexible Control Cable


Type
Name
Section Area(mm2)
No. of Core
Application Site
KVV
Copper Conductor,PVC Insulated and Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KVVP
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KVVP2
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable
0.75 1.0 1.5 2.5
4-10
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
7-61
10
4-10
KVV22
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 6
4-14
10
4-14
KVVR
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KVVRP
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
1.5 2.5
4-48
KYJV
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KYJVP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KYJV22
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 6
4-14
10
4-10
KYJVP2
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
4-14
10
4-10
KYJVR
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KYJVRP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
1.5 2.5
4-48
ALL KINDS OF CONTROL CABLES

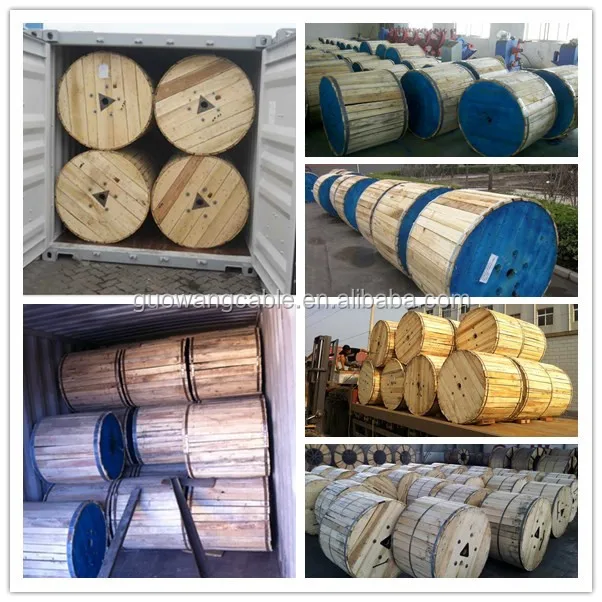

Packaging & Shipping
