Copper clad steel
CCS conductor

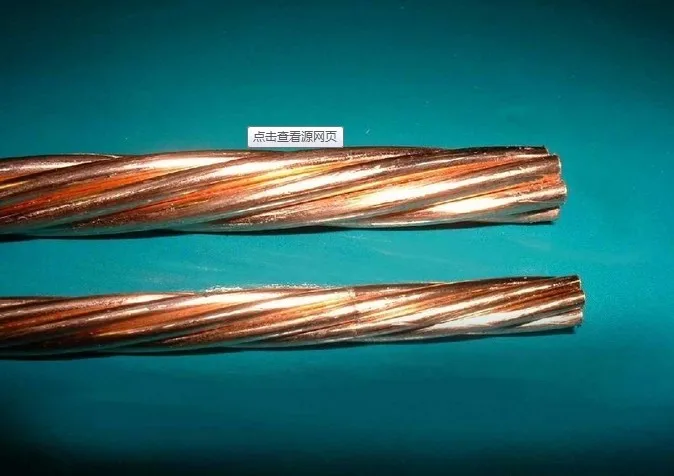

Copper Clad Steel Wire CCS Wire
Description Copper clad steel wire CCS wire is made up of plating uniform copper on the surface of high-quality low-carbon steel wire,the metallic cohension is perfectly combined of copper and steel core,and there will be no flaking off during the hat treatment or mechanical wokout.The CCS wire is the best new bimetal wire instead of pure copper wire.
Dia. 0.10-4.0mm
Strands. 3,7,19 strands
Conductivity 15%,21%,30%,40%,or to be customized
mechanical status Annealed (A) and Hard drawn(H).
Standard ASTM B227: hard –drawn Copper-Clad Steel wire
ASTM B228:Concentric-Lay-Stranded Copper-Clad Steel Conductors
ASTM B910: Annealed Copper-Clad Steel Wire
ASTM B869: Copper-Clad Steel Electrical Conductor for CATV Drop Wire
ASTM B452: Copper-Clad Steel Wire for Electronic Application
BS 4087: Copper –Covered Steel Wire for Telephone and Telegraph
DIN 48201-7 Copper Clad Steel Stranded Conductors
YD/T722-94
GB 12269-91
Features Shiny&Uniformity
Excellent electrical conductivity
Good corrosion rsistance of copper
High tensule strength
Applications Inner conductor of terminal CATV coaxial cable
Conductive cord of user communication cable for double conductor telephones .
Plug-ins for electronic components .
Conductive cord of field wires .
Overhead system for power transmission and telephone lines .
Overhead-contact systems for railway and Light Rail Transit .
Braided shield wire of power cable .
Earthing pole for electrical power industry .
Packing Plastic Spool
Iron Spool
