6FT 10FT 25FT 50FT 75FT 100FT HD15 VGA Monitor Cable M/M Male to Male Cord for HDTV PC
1. Introduction of wiring diagram vga cable
A VGA cable is a lead used for transmitting video signals. It is most commonly used to link computers with monitors. However, it is now used on some high definition televisions.
VGA stands for video graphics array. It was a graphics standard used by IBM in its early PCs sold in the 1980s. Today all PCs support VGA, but most of them use a more advanced system depending on the actual monitor used. The Windows loading screen appears using VGA as it is seen before the computer loads the relevant information about the monitor to use.
2.Description---vga cable
Vga cable Quickly connect your monitor to your computer! This VGA cable is a standard 15-pin connector for computers and monitors with VGA ports. Designed for high resolution monitors and high quality signal transmission. Works great as a replacement for video or monitor cables that are no longer working. Cable has two ferrite beads to preserve best signal quality.
3.Features ---vga cable
+ 2 twisted pairs (26 AWG)
+ 4 Conductors (26 AWG)
+ 24 AWG. Drain Wire
Double Shielded with AL-Foil & braid
PVC jacket & Molded
1) vga cables,vga monitor cable
2) 30/28/26/24AWG available for vga cable
3) vga cable length = 1.5m,3m,5m,10m,15m,20m,25m,30m,40m,50m,65m available
4) OD=6.0mm/7.6mm/8.0MM optional for vga cable
5) vga cable connectors: Gold-plated or nickel available
6) vga cable connector Colors: Blue ,Black ,Grey ,White
7) vga cable Wire Specification :{(7*0.12+24*0.10)*3+9*0.12+128P*0.10/MG+AL} Copper inside
8) Package: PE package or Customer package, logo available for vga cable
9) Aluminum undermold shield for vga cable
10) Connect monitors with VGA ports to computers with VGA ports
11) cable designed to support high density VGA technology
12) High quality VGA Extension Cable for your monitor
13) this vga cable Perfect for Video Presentation Devices, Video Splitters, KVM Switches
14) Standard Male 15-Pin VGA Plug Ends
4.Detail photos ---vga cable

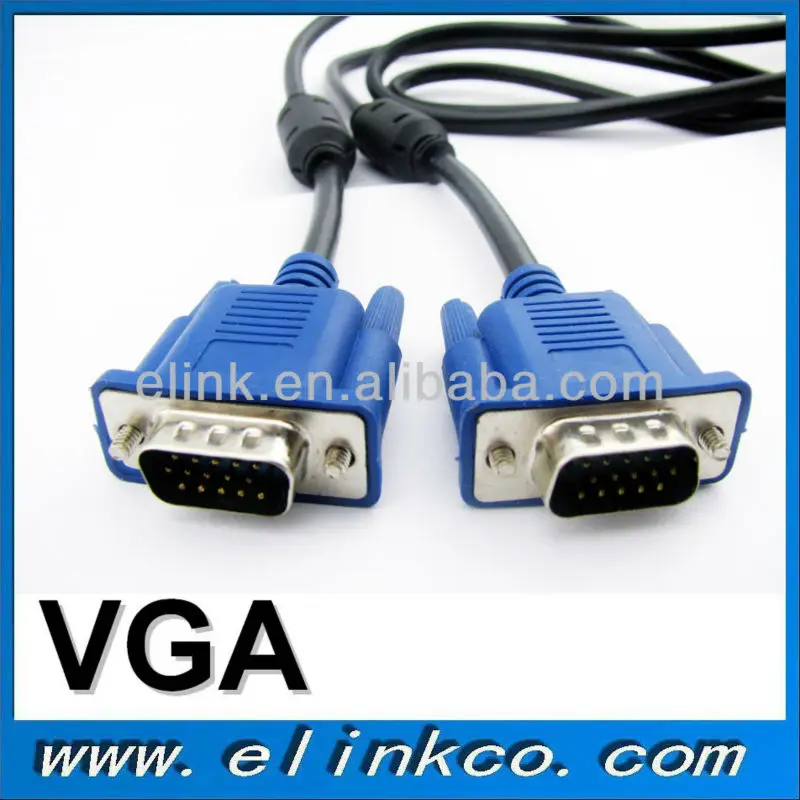

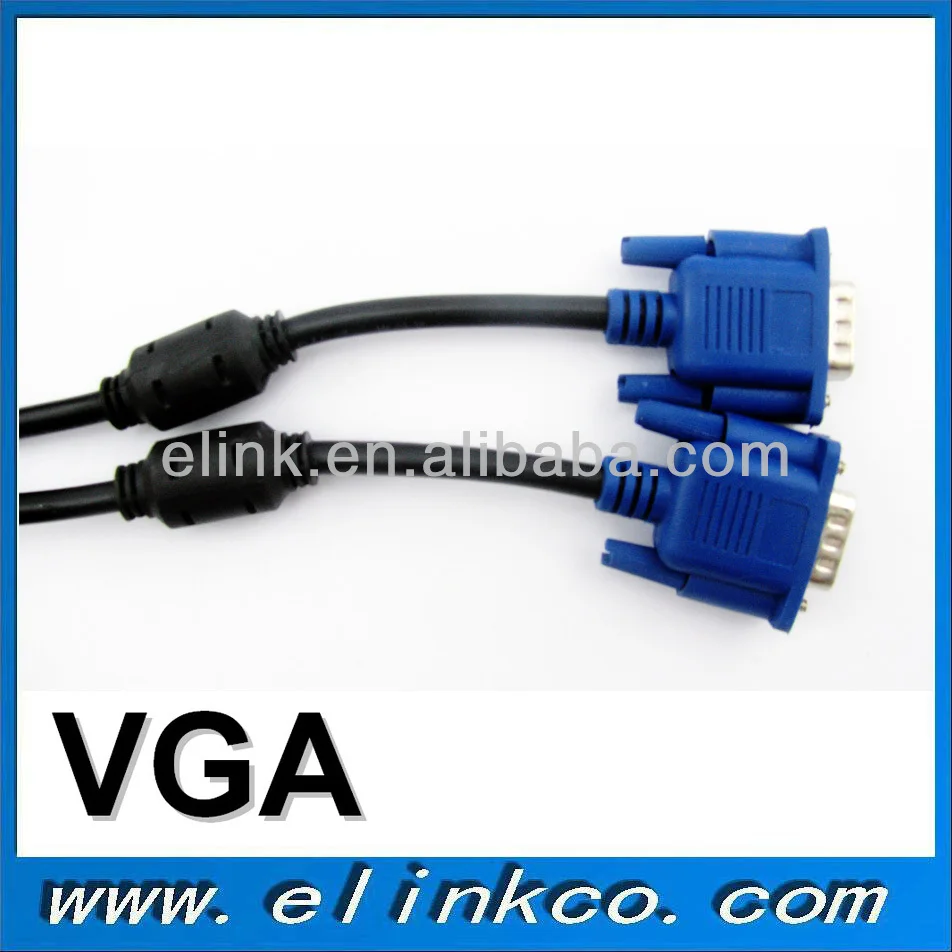

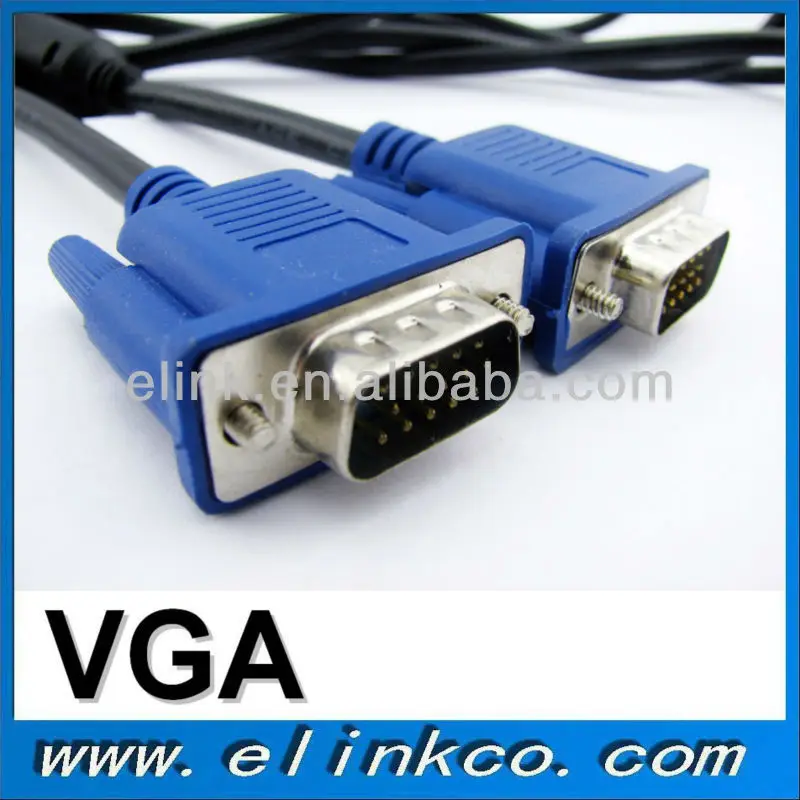

Standard full 15 pin male with blue plug PVC jacket
Black anti-interference ferrites on both sides
4.Relative types of wiring diagram vga cable
5. Packaging of wiring diagram vga cable
1). Poly bag with sticker;
2). Customized Gift box;
3). Blister, bubble or slide blister available,20pcs/box, 2 box in a carton.
6.After-sales service of wiring diagram vga cable
1). Our slogan is "keeping in touch with our customers with parts of quality and benefiting our customers with best service."
2). Our promise, so long as product quality has question, upon test and find out if they are our fault, we can exchange or resupply to you for free with my company connection.
