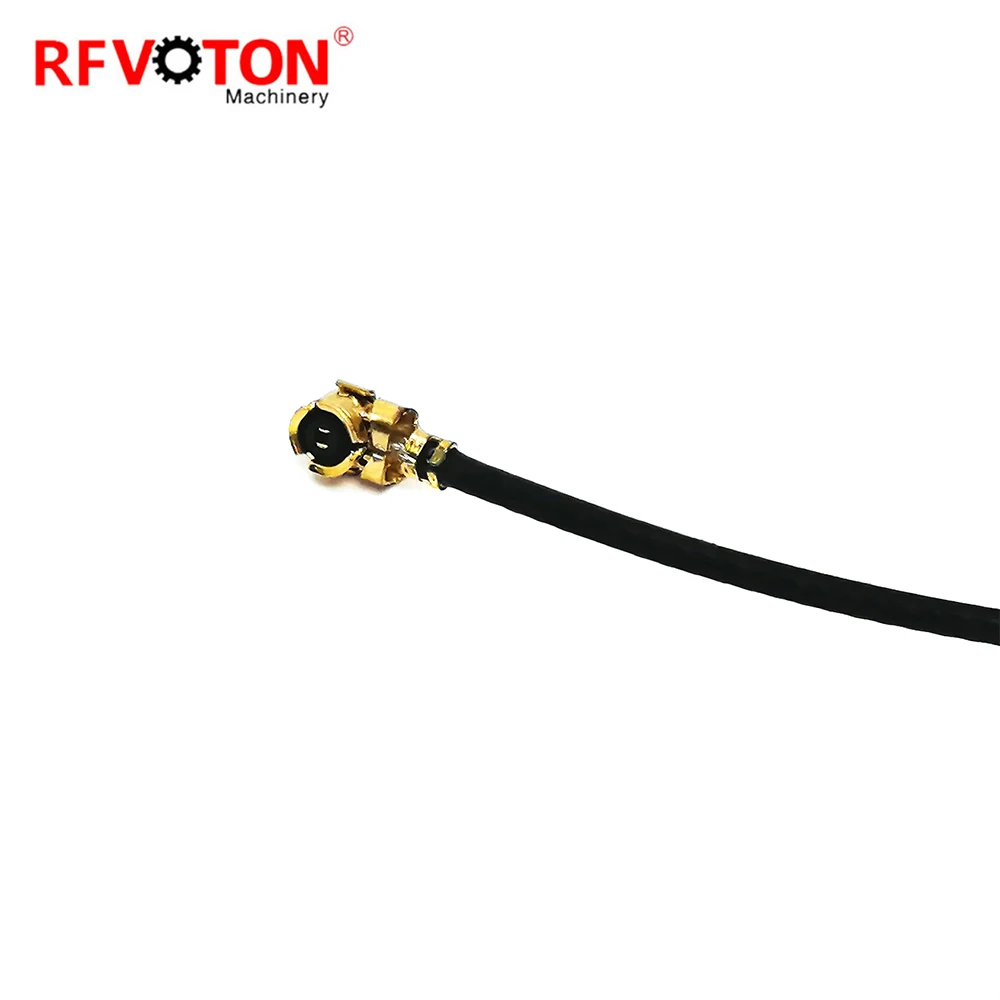

5cm Bulkhead SMA Female to IPEX for pigtail cable 1.13
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
SMA to IPEX for pigtail cable 1.13

SMA Female to IPEX for pigtail cable 1.13

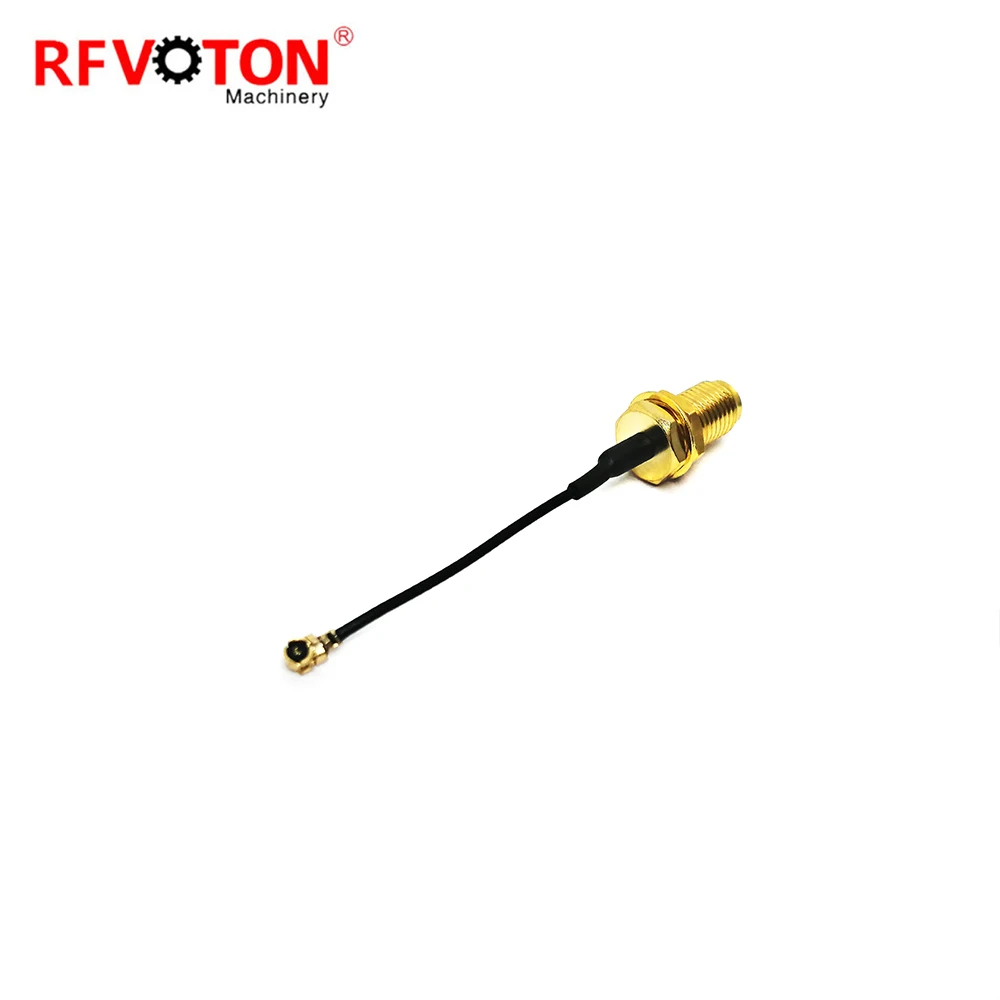

5cm Bulkhead SMA Female to IPEX for cable 1.13
Temperature range
-65~+165°C (PE Cable -40~+85°C)
Vibration
MIL-STD-202,Method 213
Impedance
50 OHM
Frequency Range
DC – 12.4GHz(0-18GHz)
Working Voltage
335V max
Withstand Voltage
1000V rms
Center Contact
≤ 3 mΩ
Outer Contact
≤2mΩ
Insulation resistance
>5000M OHM
Insertion loss
≤0.15 dB/6GHz
Durability (mating)
>500 (cycles)
Insertion loss
0.15dB (7.5GHz max)
VSWR
Straight Soft cable ≤1.10+0.002f
Semi-steel cable≤1.05+0.001f
Right angle Soft cable ≤1.20+0.003f
Semi-steel cable≤1.10+0.001f
Material & Plating
Body
Brass
Nickel plated / Alloy plated
Inner Pin
Brass
Gold plated
Resilient Contact
Beryllium Copper
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel / Gold plated
O-ring sealing
Silicone Rubber
APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15.
